Owner’s Manual

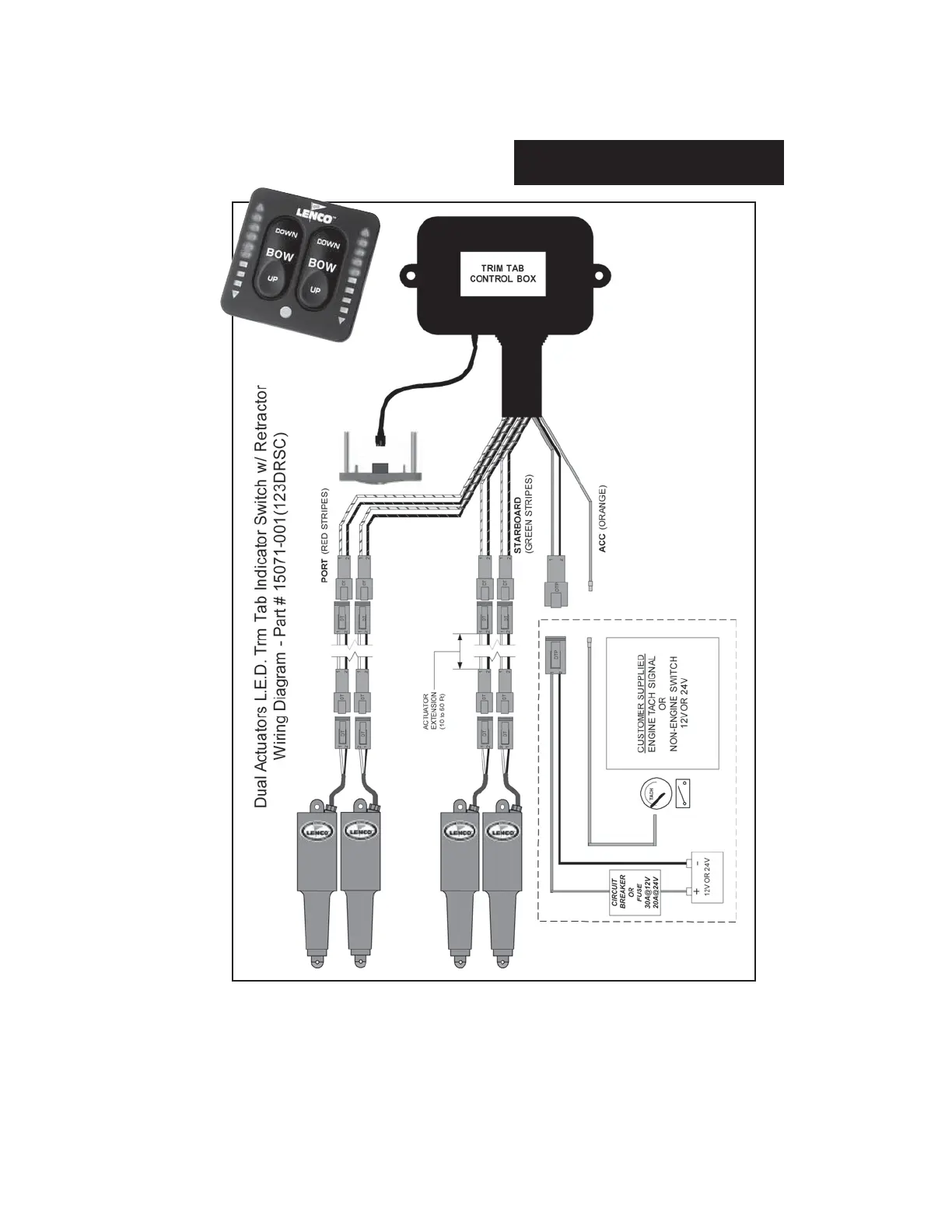

Dual Actuator Switch Wiring
Note: In all cases, make
sure control box is
mounted with wires facing
down toward deck.
# 15071-001 (123DRSC)
This product must be wired exactly as shown above.
Failure to wire the trim tab retractor as shown will cause
cancellation of all warranties by the manufacturer.
