1-2
Selection Guide
OUTBOARD–FRONT MOUNT

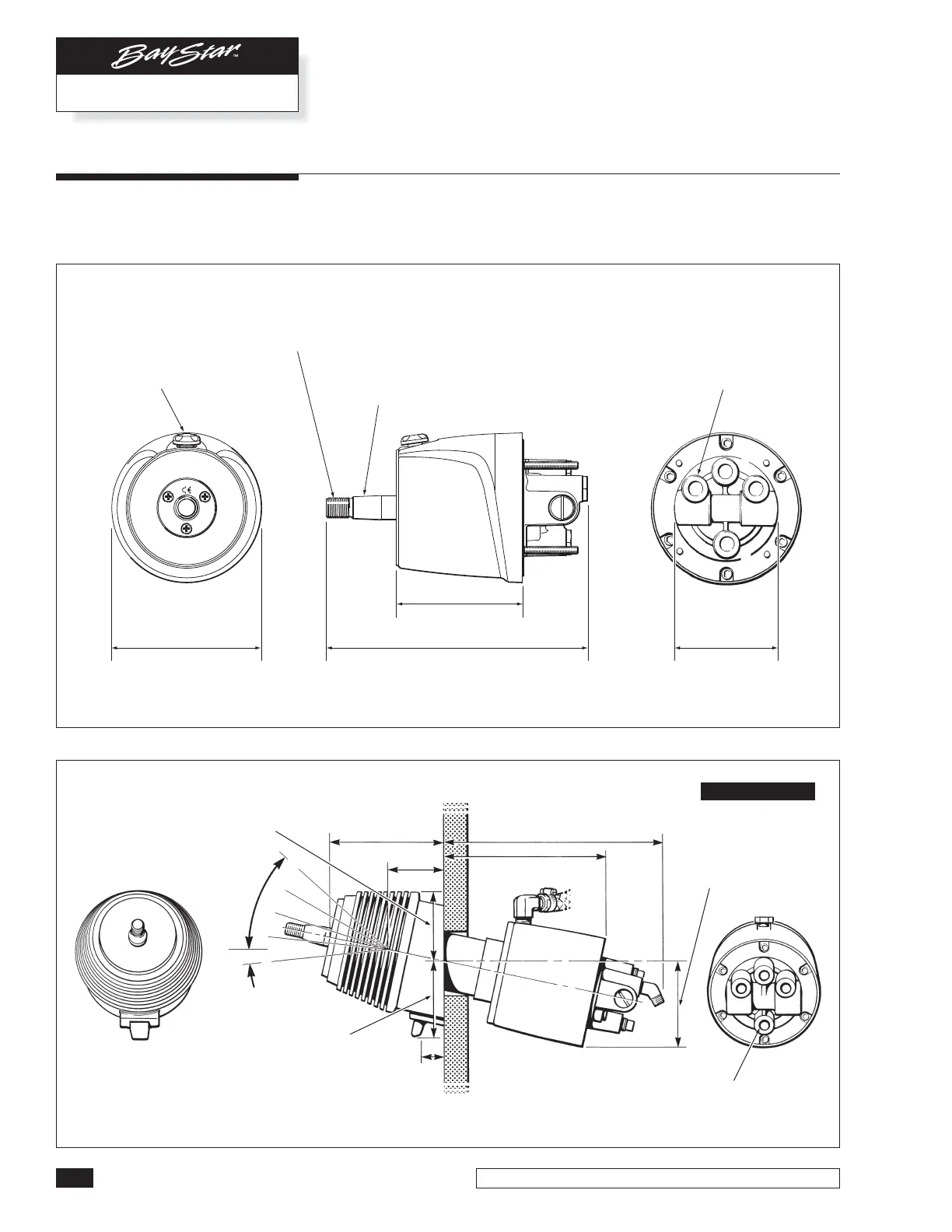

1) Check helm dimension. Both the Standard and Tilt helms require
a 3" (76mm) cut-out hole in the dash.
Three easy steps to select
your BayStar System:
TILT HELM PART# HH4315
STANDARD HELM PART# HH4314
9.2" (233.5mm)
4.8" (122mm)
6.8" (173mm)
2.4"
(61mm)
1.3" (33mm)
3.6" (91.5mm)
3.5" (89mm)
3" (76mm)
42°
6°
1/4" NPT PORTS (4)
1
2
3
4
5
3" DIA.
(76 mm)
4-5/8"
(118 mm)
3-15/16"
(100 mm)
7-15/16" (200 mm)
3/4" STANDARD
TAPER
1/4" NPT FILL PORT
1/4" NPT PORTS (4)
5/8" NF THREAD
NOTICE
Comes with
newly designed tilt
mechanism.
