SEASTAR and BAYSTAR Hydraulic Steering Systems
2-3
The P/A is designed for use in recreational marine applications in
conjunction with SeaStar Hydraulic Steering. Optimal performance will
be obtained when used with SeaStar 1.4, 1.7 and 2.0 cu in (1000psi)
helm pumps, or, 2.0 cu in (1500 psi) SeaStar P/A PRO Hydraulic Steering.
SeaStar nylon tube may ONLY be used for the compensating line. DO NOT
use SeaStar Nylon tube to plumb any other portion of the steering system.
SeaStar P/A PRO is NOT to be used with SeaStar Hydraulic Steering,
performance will be compromised. ONLY use P/A PRO with a SeaStar
PRO Hydraulic steering system and ensure that SeaStar PRO (1500
psi) hose is used to plumb the entire system. (Nylon tubing may be
used for the compensating/return line ONLY.
Use ONLY Teleflex products with
the P/A unit as with ALL Teleflex
systems. Failure to do so may
void your warranty.
NOTICE
NOTICE
Plan ahead. There MUST be at least 4' (feet) of hose between the helm
pump and power assist, or the power assist and the steering cylinder.
NOTICE
SeaStar P/A
Compatibility Chart
POWER ASSIST
DO NOT exceed peak operating pressure.
1000psi – Standard,
1500psi – Pro.
WARNING
SEASTAR P/A 12VOLT, SEASTAR PRO P/A, 12 VOLT
• 12 Volts
• 1000 psi MAX System peak pressure
(500 psi working load) SeaStar Standard
• 1500 psi MAX System peak pressure
(500 psi working load) SeaStar Pro
• MAX Current Draw (at 1000psi) 55 amps
• Purple ignition wire MAX. current draw = 1 amp
• Typical current draw:
Single outboard ~ 3 amps, average
Twin Rudder inboard ~ 8 amps, average
SEASTAR P/A 24 VOLT. (SEASTAR PRO P/A
IS
NOT AVAILABLE IN 24 VOLT POWER).
• 24 Volts
• 1000 psi MAX., System peak pressure
(500psi working load)
• MAX Current Draw (at 1000psi) 25 amps
• Purple ignition wire MAX. current draw = 1 amp
• Typical current draw:
Single outboard ~ 1.5 amps, average
Twin Rudder inboard ~ 4 amps, average

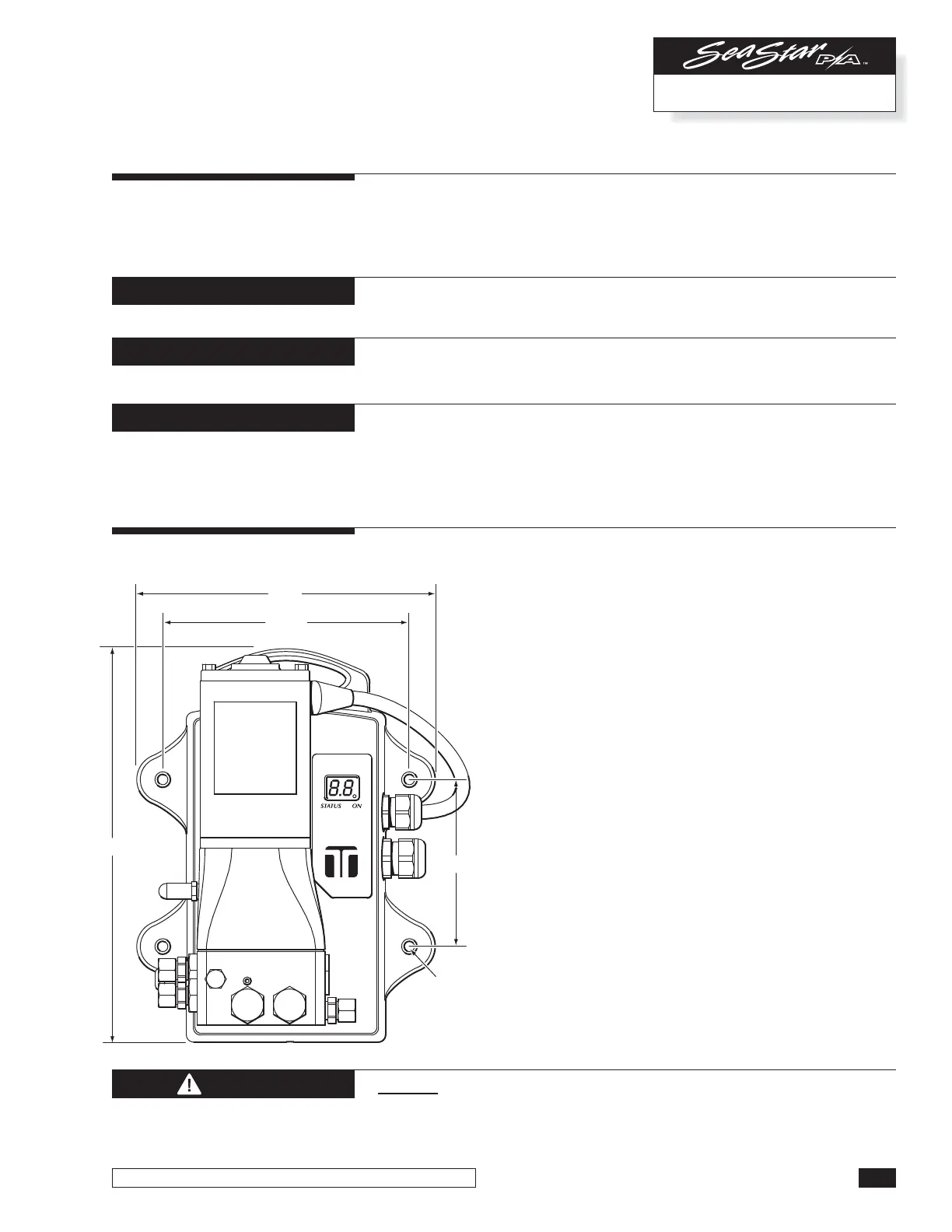

Specifications
4 x 0.25"
4.50"
6.65"
10.5"
8"
