SEASTAR and BAYSTAR Hydraulic Steering Systems
4-7
STERNDRIVE STEERING
15° SWIVEL MAX.
2.7"
(69mm)
4.5"
(114mm)
0 .875" (22.5mm)
20.75" (527mm) RETRACTED
20.12" (511mm) RETRACTED
15° SWIVEL MAX.
K-5-B

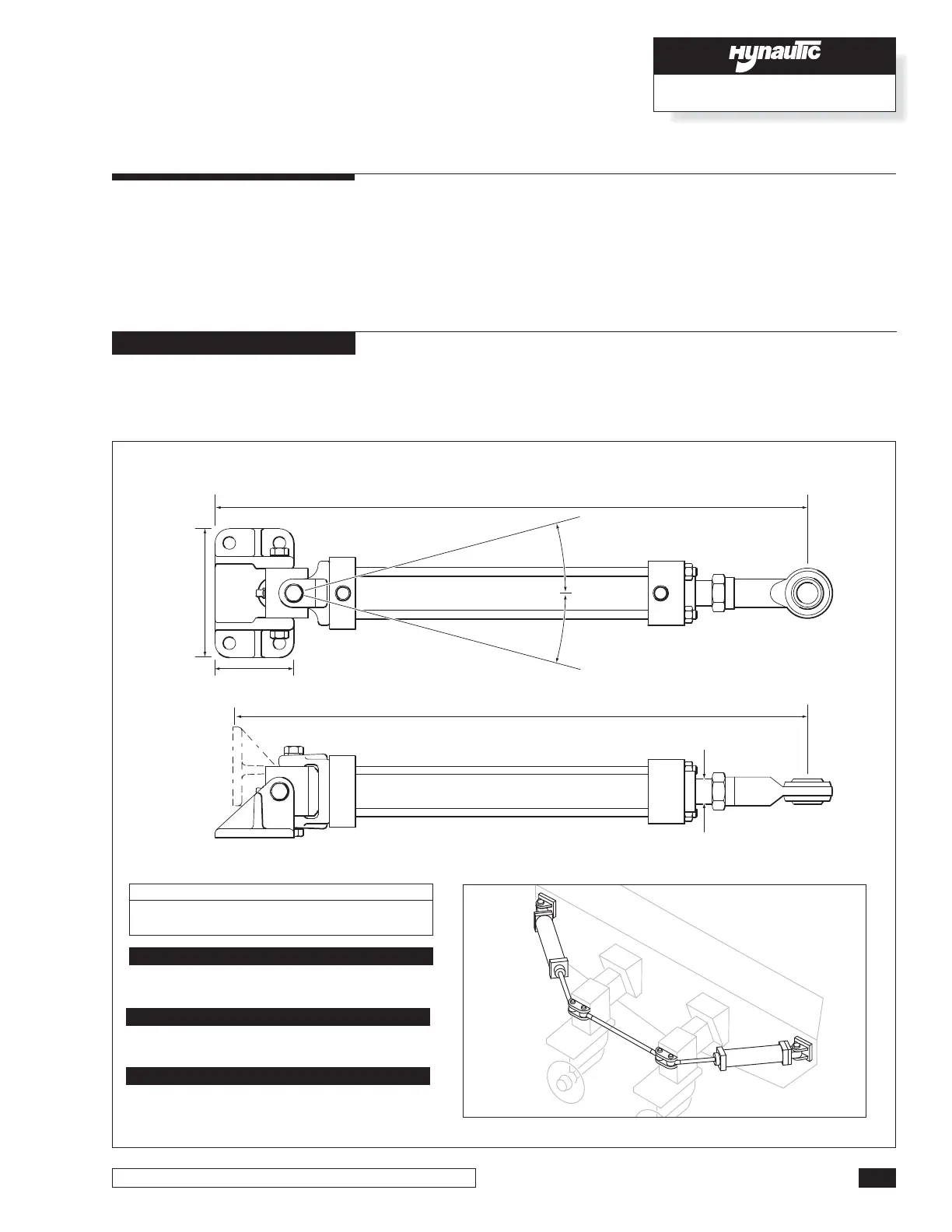

The K-5-B cylinder was designed for inboard/outboard boats requiring
external cylinders of substantial size and strength. The K-5 cylinders
are nickel plated for aesthetics and protection against the elements.
This cylinder does not include the wing plates or hardware required
for mounting to the outdrive. Porting is through two through-transom
1/4" NPT ports located at the mounting end of the cylinder.
Performance I/O and
Outboard Cylinders
BORE STROKE DISP EXT. DISP RET.
1.5" (38mm) 9" (229mm) 15.9cu in 10.5cu in
NOTICE
Due to the large volume of the K-5-B Cylinders, it is suggested that
only Capilano and/or Hynautic H-40 series helms be used to retain
a comfortable yet reasonable amount of wheel turns from hard over
to hard over.
NOTICE
K-5 Cylinders are UN-balanced Cylinders, unequal
amount of fluid on either side of the piston.
NOTICE
DO NOT use a PRO Helm pump with this, or any other
unbalanced steering cylinder.
NOTICE
Teleflex does NOT make connecting hardware to
attach this cylinder to the out drive.
To Next Page
