i. A Clearance fault will be detected if the FYAc channel pair sequences

from the solid Green Arrow (9, 10, 11, 12) to the solid Red Arrow (1, 3,

5, 7) without a minimum clearance time on the solid Yellow Arrow (1, 3,

5, 7). The fault icon () will be displayed for the FYAc channel (1, 3, 5,

7).

ii. A Clearance fault will be detected if the FYAc channel sequences from

the flashing Yellow Arrow (1, 3, 5, 7) to the solid Red Arrow (1, 3, 5, 7)

without a minimum clearance time on the solid Yellow Arrow (1, 3, 5, 7).

The fault icon () will be displayed for the FYAc channel (1, 3, 5, 7).

iii. If the Clearance function (SSM) is enabled a Clearance fault will be

detected if the Green Arrow (9, 10, 11, 12) channel sequences from the

solid Green Arrow (9, 10, 11, 12) to the Red (9, 10, 11, 12) without a

minimum clearance time on the Yellow (9, 10, 11, 12). The fault icon

() will be displayed for the solid Green Arrow channel (9, 10, 11, 12).

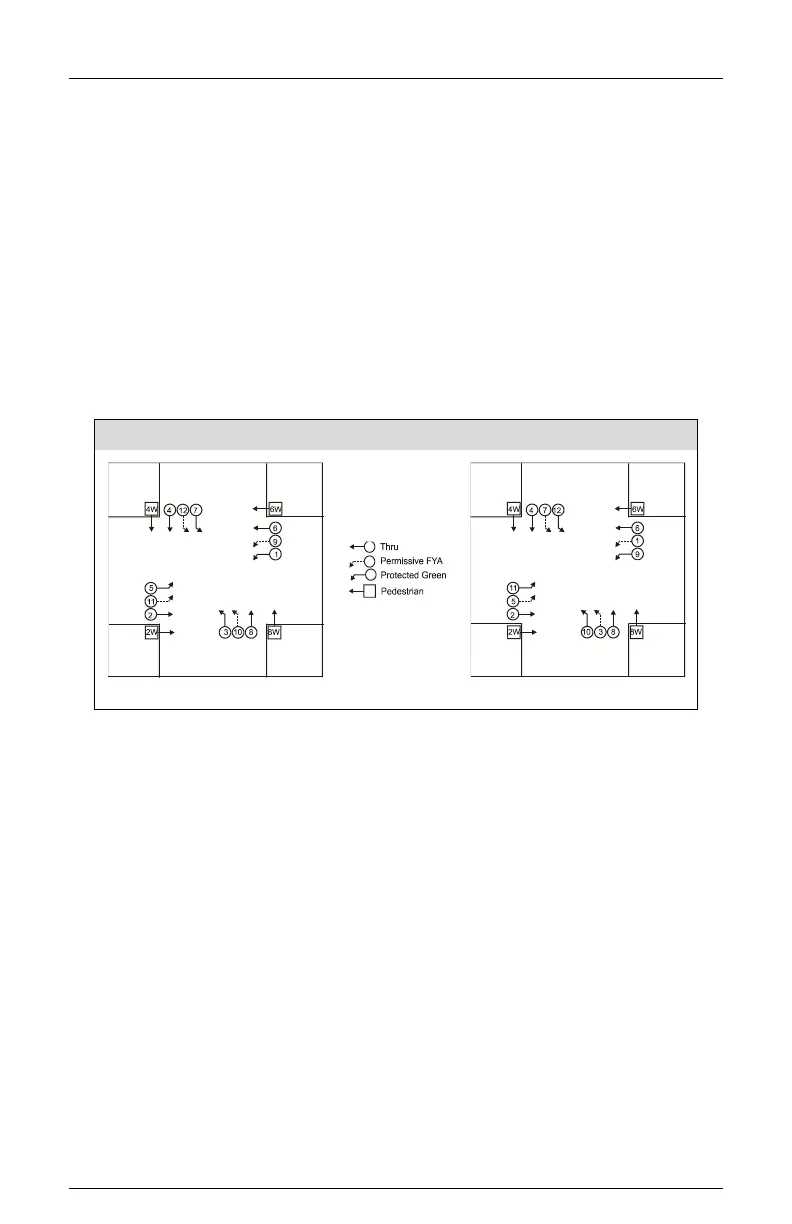

3.11.3 FYA CHANNEL ASSIGNMENT DIAGRAMS

TS-1 FYA Modes

FYA Mode

FYAc Mode
