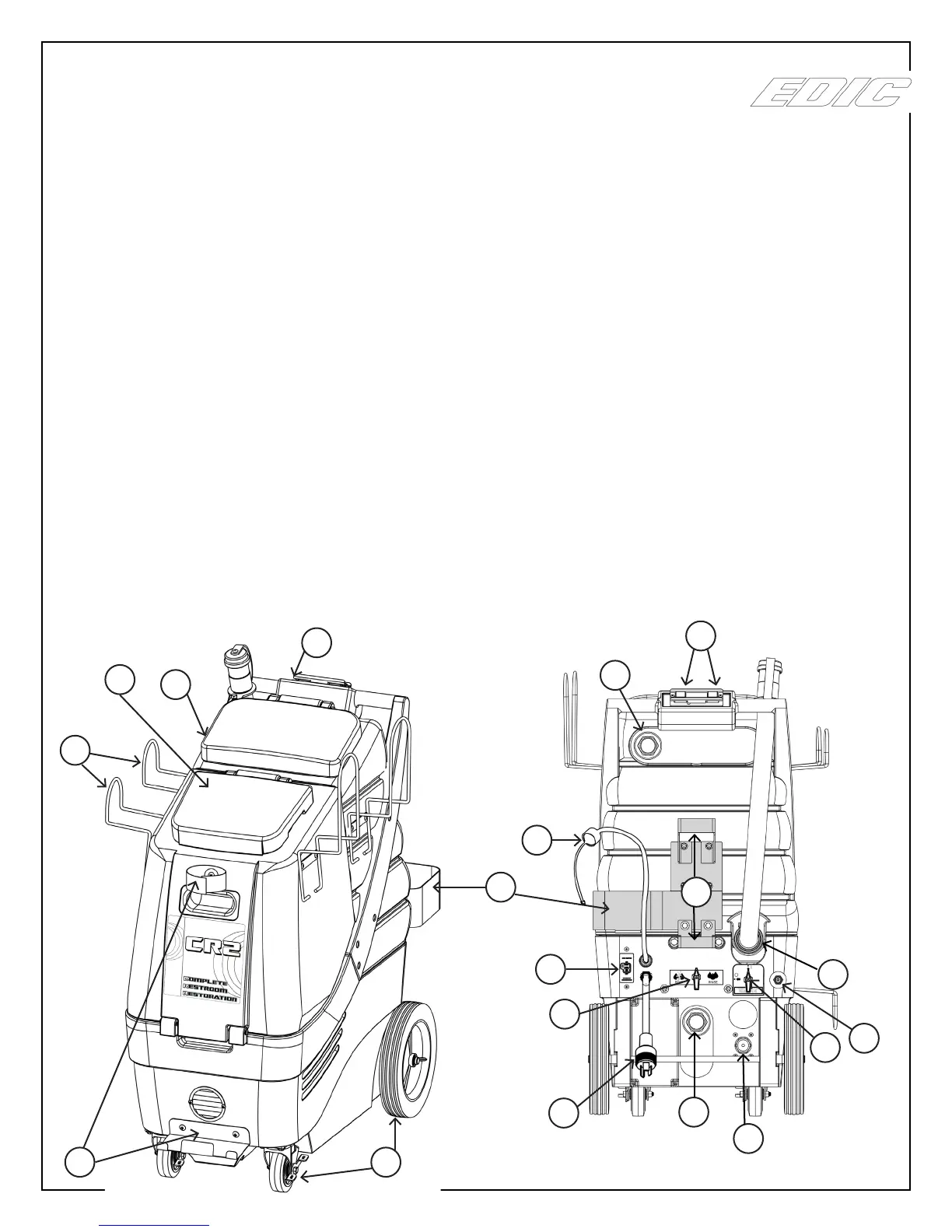

Edic CR2 - CR2 Machine Components and Accessories; CR2 Machine Layout Overview

1. Handle- Used to maneuver and position the CR2
2. Recovery tank lid- Allows access to recovery tank
and creates a seal to ensure suction
3. Solution tank lid- Allows access to the solution tank
and prevents external contamination of solution tank
4. Accessory racks for hoses, cords, tools etc.- Two large
racks on one side and one three small racks on each
side of the machine. 5 total
5. Wand storage bracket and velcro strap- Allows the
operator to secure a wand attachment to the machine
for ease of transport
6. Non-marking front 4” locking casters and rear 10”
wheels
7. Recovery/vacuum hose inlet barb- connect your
recovery vacuum hose to this barb
8. Feed hose line for chemical with threaded bottle cap-
secures the feed hose line to the chemical bottle
9. Bottle holder for chemical feed system- Holds up to a
one gallon chemical bottle
10. GFCI breaker- Interrupts and disables the electrical
system if a ground leak is detected.
11. Chemical dispensing valve- Select between
“SOAP”and “RINSE” by turning to le or right as
marked
12. Power cord
13. Exhaust port hose barb- Used to connect to hose
with blower attachment.
14. Pressure regulator- Decrease pressure by turning
counter-clockwise or increase pressure by turning
clockwise
15. Priming/pressure relief valve- Prime system in the
event of air lock. Relieves pressure in the event of
pressure lock
16. Solution line Q.D.- Pressurized connection for solu-
tion line
17. Recovery tank dump hose
18. Heater mounting brackets- for accessory heater
19. Switch box- one switch marked “PUMP” and one
switch marked “VACUUM”. Switches light up when
powered on.
3
2
1
4
8
6 5
9
10
11
12
13
14
15
16
17
19
7
7
18
