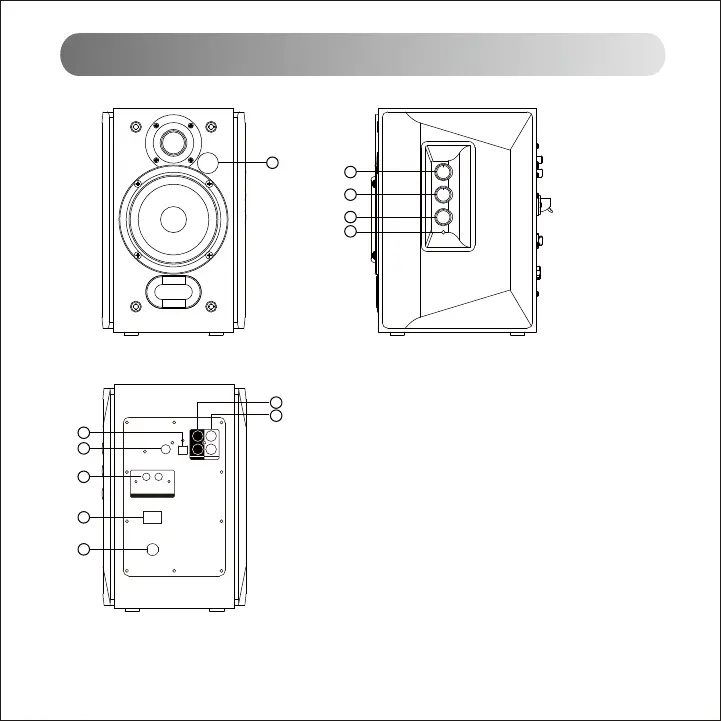

Illustration
1. Infrared receiver/input indicator
Red: Optical/Coaxial mode
Blue: Bluetooth mode
Green: Line In 1/Line In 2 mode
2. Treble dial
3. Bass dial
4. Master volume control/input selection
Press: input mode switch
(Line In 1→Line In 2→Optical→Coaxial→Bluetooth)
Press and hold: standby
5. Power indicator
6. Optical input
7. Coaxial input
8. Connect to passive speaker
9. Power switch
10. Power cable
11. Line In 1 input
12. Line In 2 input
1
2
8
12
11
6
7
9
10
3
4
5
