EDIFIER R1380DB User Manual

Line In mode

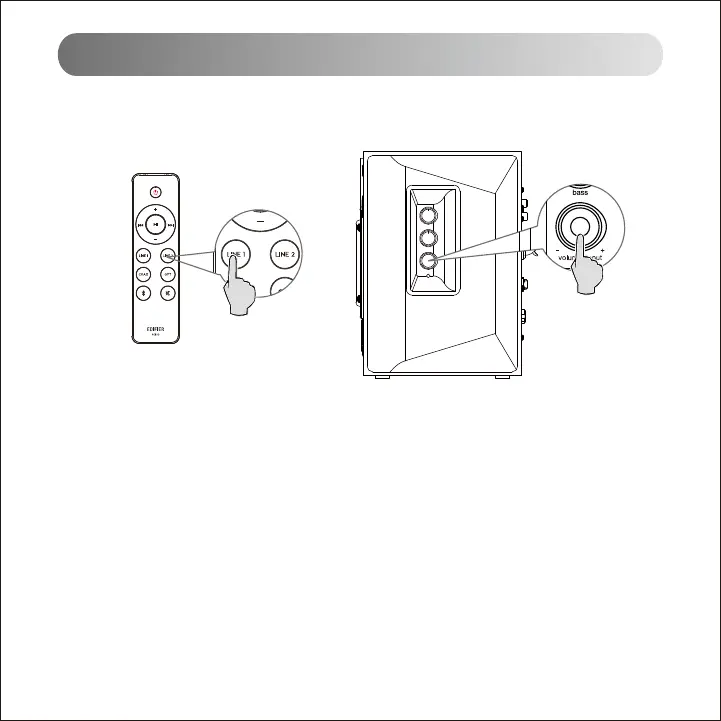

• Press the "LINE1"/"LINE2" button on the remote control, or press the "volume/input" button
on the side panel of the active speaker to switch to Line In mode, and the green LED will be lit.
• Connect audio source (mobile phone, tablet, etc.) to the "Line In 1" or "Line In 2" input port
(note color matching) on the rear panel of the active speaker using audio cable.
• Play music on the connected device and adjust the settings to a desired level.
or

EDIFIER R1380DB Specifications

General

Power Output	42W RMS (21W x 2)
Frequency Response	55Hz-20kHz
Signal to Noise Ratio	≥85dBA
Bluetooth Profiles	A2DP, AVRCP
Bluetooth Range	10m
Remote Control	Yes
Input Types	RCA, Optical, Bluetooth
Bluetooth Version	5.0
Driver Unit	4-inch bass unit, 13mm silk dome tweeter
