- 32 -
ENGLISH

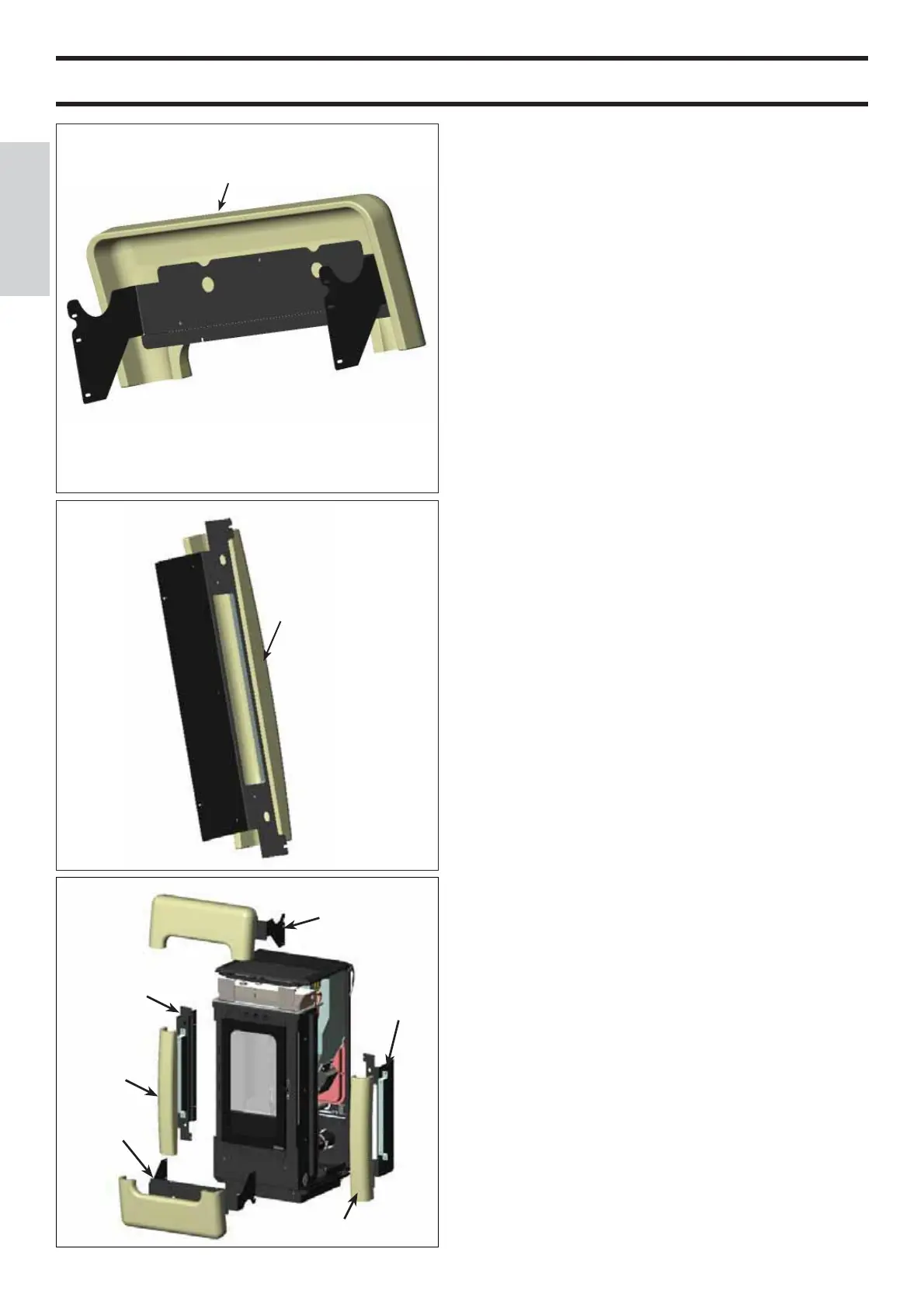

Fig. 4
Fit the metallic xing brackets (C) onto the back of the hori-
zontal ceramic elements using the holes and the milled M4 pins
provided.
Fig. 5
Fit the metallic xing brackets (D) onto the back of the verti-
cal ceramic elements using the holes and the milled M4 pins
provided.
Fig. 6
Fit onto the structure the vertical and horizontal elements
(F, E) complete with the metallic brackets (C, D) previously
remov¬ed from the stove.
COVERING INSTALLATION
g. 5
g. 4
g. 6
F
F
E
E
C
D
C
D
F
E
C
D
