EdilKamin MEG PIU User Manual

- 33 -
ENGLISH
COVERING INSTALLATION

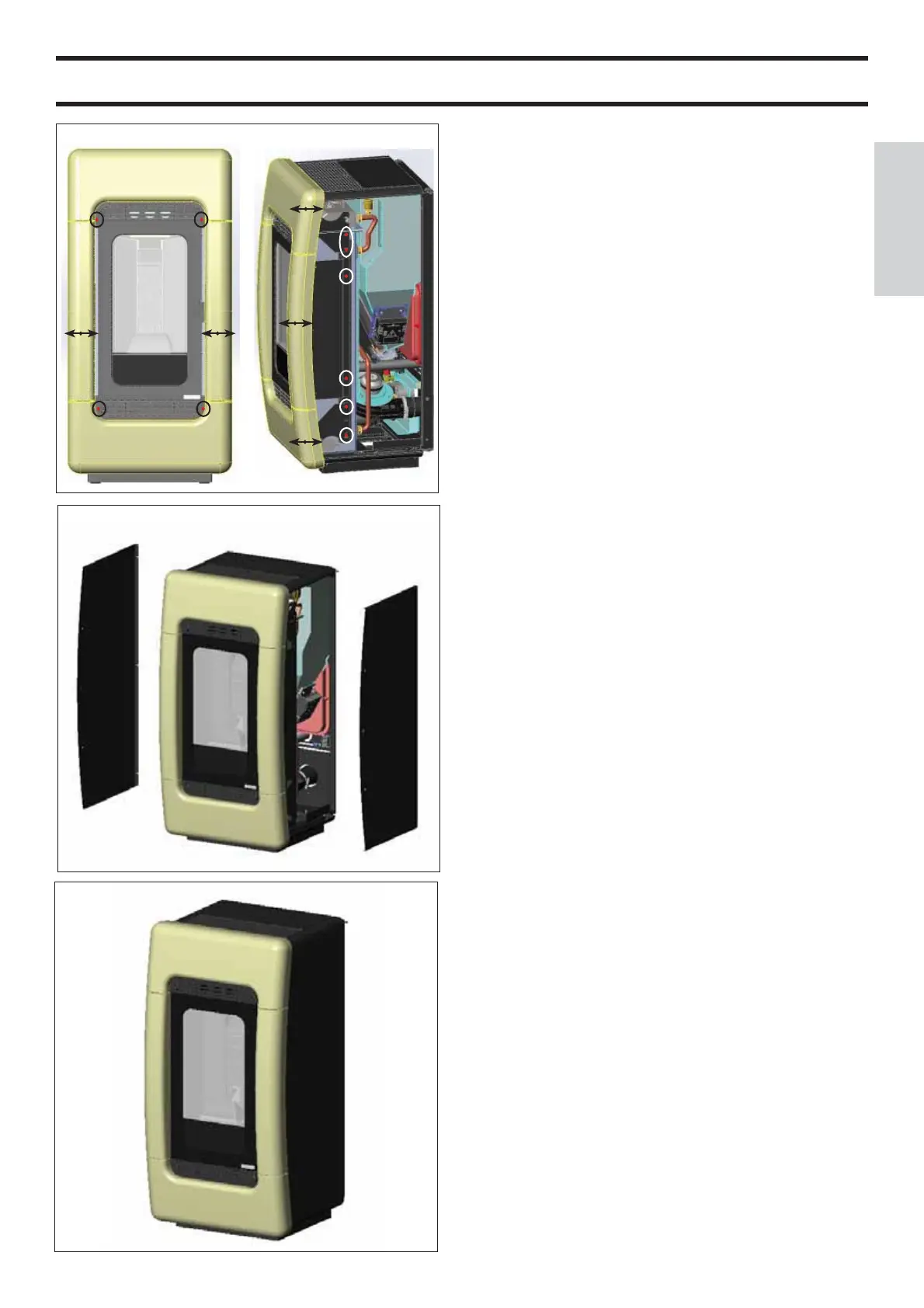

Fig. 7
After fi tting the elements E and F onto the stove, they must be
adjusted so that they are aligned with each other, proceeding as
follows:
- Align the vertical ceramic ele¬ments (E) horizontally by me-
ans of the screws 1-2-3-4.
- Align the curve of the vertical ceramic elements (E) by means
of the screws 5-6.
- Align the curve of the horizontal ceramic ele¬ments (F) by
means of the screws 7-8-9-10.
Fig. 8
Replace the metallic sides (A and B) previously removed from
the stove.
Fig. 9
The fi gure shows the stove completely assembled.
ATTENTION:
CHECK THAT WHEN THE DOOR IS OPENED IT DOES
NOT COME INTO CONTACT WITH THE VER¬TICAL
CERAMIC ELEMENTS.
fi g. 9
fi g. 8
fi g. 7
A
B
F
F
EE
12
34
5
6
7
8
9
10
F
F
E
E
