Edimax BR-6428nS V2 Faq

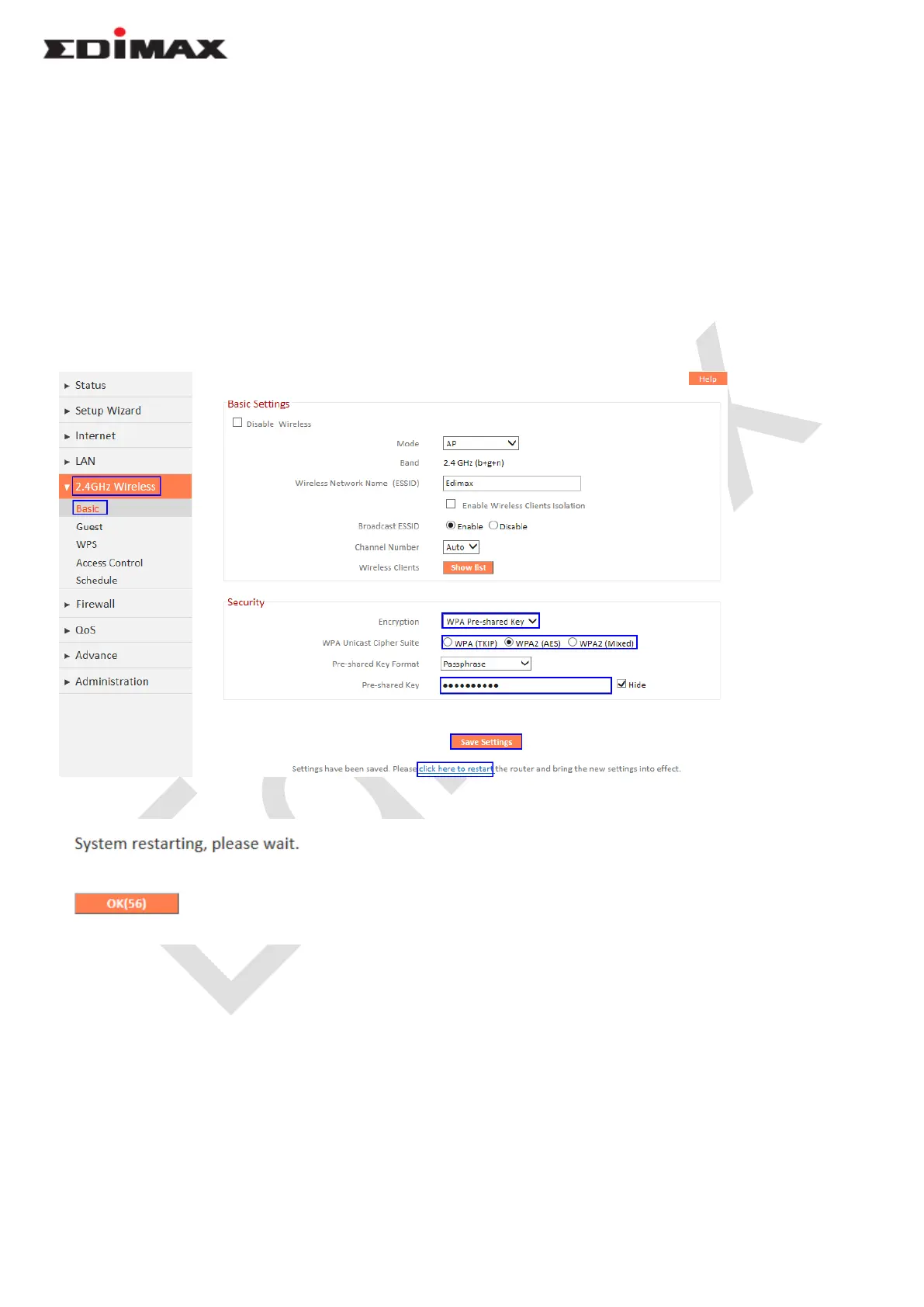

4. Click “ 2.4GHz Wireless”, click “ Basic ”. And you are able to configured 2.4GHz wireless security in this
page.
a. Change “ Encryption “ to WPA Pre-shared Key.
b. Select WPA2 (AES)
c. Enter your wireless security key in the field “ Pre-Shared Key”. It should be 8 characters at least.
d. Click “ Save Settings”.
And then click “ click here to restart” to reboot the router. Please wait about 1 minute.
5. Now, you have changed the wireless security successfully.
After reboot, wireless adapter or smart phone is able to connect to router using new wireless security
key.

Edimax BR-6428nS V2 Specifications

General

VPN support	PPPoE, static IP, dynamic IP, PPTP and L2TP
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN (RJ-45) ports	4
Antennas quantity	2
Antenna gain level (max)	5 dBi
Security algorithms	WEP, WPA, WPA2
Input current	1 A
Rack mounting	-
WLAN data transfer rates supported	300 Mbit/s
Product color	White
LED indicators	Activity, LAN, Link, Power, WAN
Flash memory	4 MB
Certification	CE, FCC
Internal memory	16 MB
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Output voltage	5 V

Weight and Dimensions

Depth	110 mm
Width	135 mm
Height	28 mm
Weight	161 g
