Edimax BR-6428nS Faq

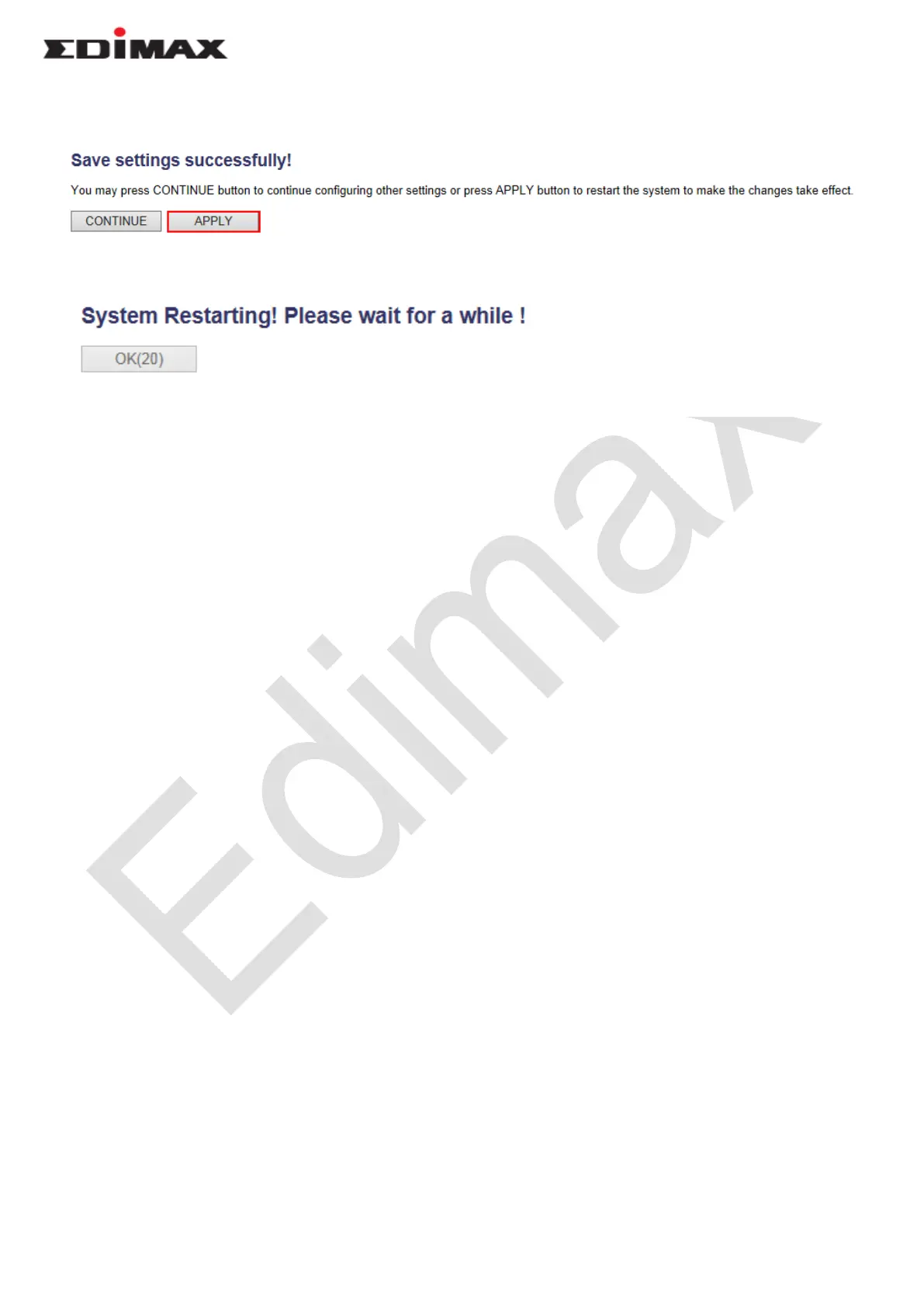

6. Click “ Apply “ to reboot the router, and wait about 30 seconds.
7. Now, you have changed the wireless security successfully.
After reboot, wireless adapter or smart phone is able to connect to router using new wireless security
key.

Edimax BR-6428nS Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Rack mounting	No
Frequency range	2.4 - 2.472 GHz
WLAN data transfer rates supported	300 Mbit/s
Antennas quantity	2
Antenna gain level (max)	3 dBi
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WDS, WPA, WPA-AES, WPA-PSK, WPA-TKIP, WPA2, WPA2-PSK
Power supply	5 W
Output voltage	5 V
Certification	CE, FCC
Operating temperature (T-T)	0 - 45 °C
Top Wi-Fi standard	Wi-Fi 4 (802.11n)

Weight and Dimensions

Depth	110 mm
Width	135 mm
Height	26 mm
Weight	200 g
