6 EdimaxTechnology(UK)Limited|QuickInstallationGuide(EW‐7206APg)
www.edimax.co.uk

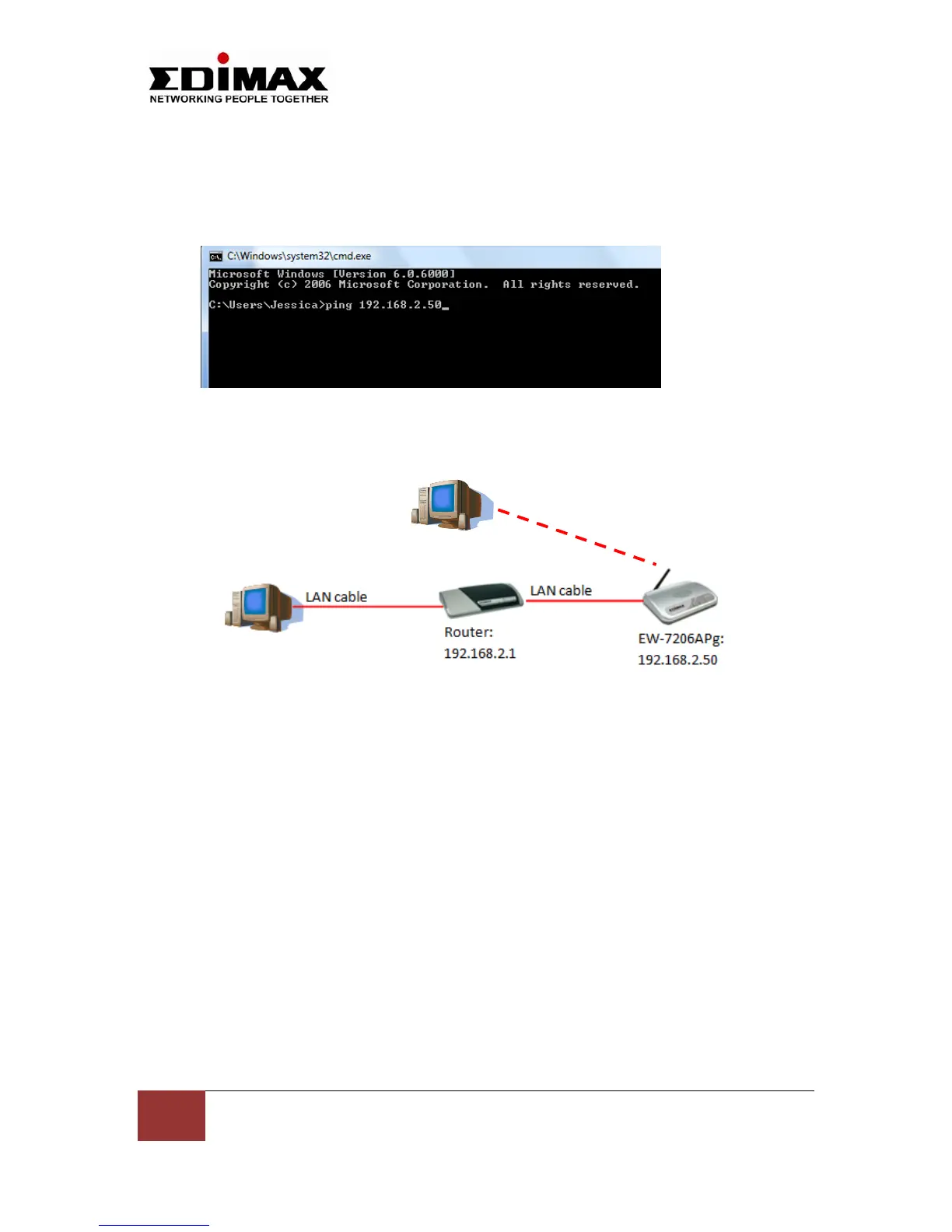

12. DoapingtesttoEW‐7206Apg(eg:192.168.2.50),ifyougotReplyfromPinging,the
configurationiscompletedandtheAccessPointisworking.
13. Toping,clickonStart>Run>typecmdandclickOK.Atthecommandprompt,type
‘ping192.168.2.50’andpressEnter.
14. Youcan
nowconnectwirelesslytoEW‐7206APgaccesspointwithWPAwireless
security.
ConnectwirelesslytoEW‐7206APG

Other manuals for Edimax EW-7206APg

Preview: User Manual
User Manual30 pages
Preview: Installation Guide
Installation Guide7 pages
Preview: Specifications
Specifications2 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Edimax EW-7206APg and is the answer not in the manual?

Edimax EW-7206APg Specifications

General IconGeneral
2.4 GHzYes
Frequency band2.4 - 2.4835 GHz
Maximum data transfer rate100 Mbit/s
Ethernet LAN (RJ-45) ports1
Security algorithmsEAP-MD5, SSID, WPA, WPA2
Compliance industry standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Flash memory2 MB
Internal memory8 MB
Processor modelRealtek RTL8186
Antenna connector typeRP-SMA
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90 %
CertificationFCC Class B, CE Mark
Power requirements12V DC, 0.4A
Weight and Dimensions IconWeight and Dimensions
Dimensions (WxDxH)127 x 96 x 30 mm
