Edimax EW-7206APg Installation Guide

7.

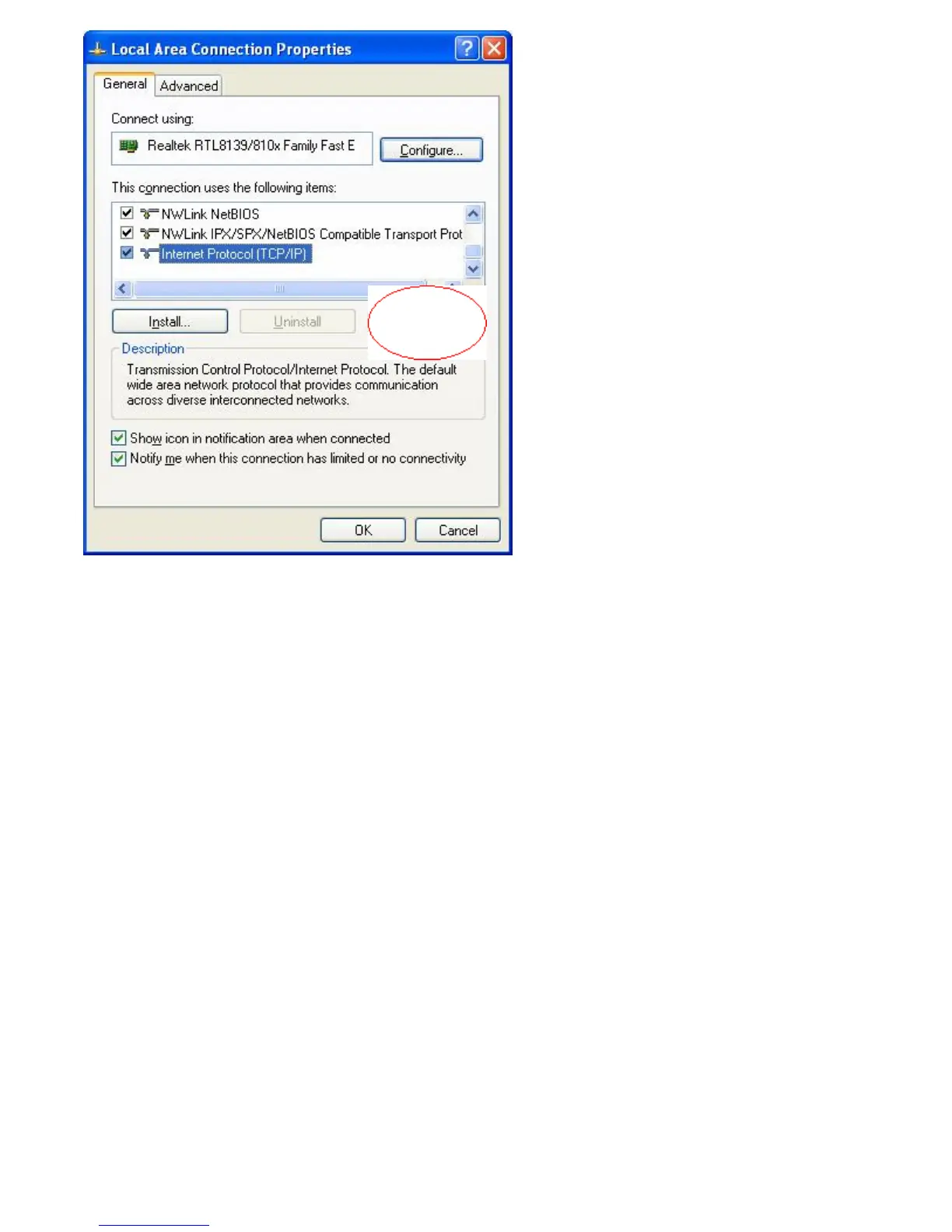

Select
Use the following IP Address
.
z IP Address:
192.168.2.3
(any IP address within 192.168.2.2~192.168.2.254 is available,
do
not use 192.168.2.1
)
z Subnet Mask:
255.255.255.0
9/12/2006

Edimax EW-7206APg Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 2.4835 GHz
Maximum data transfer rate	100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Security algorithms	EAP-MD5, SSID, WPA, WPA2
Compliance industry standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Flash memory	2 MB
Internal memory	8 MB
Processor model	Realtek RTL8186
Antenna connector type	RP-SMA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC Class B, CE Mark
Power requirements	12V DC, 0.4A

Weight and Dimensions

Dimensions (WxDxH)	127 x 96 x 30 mm
