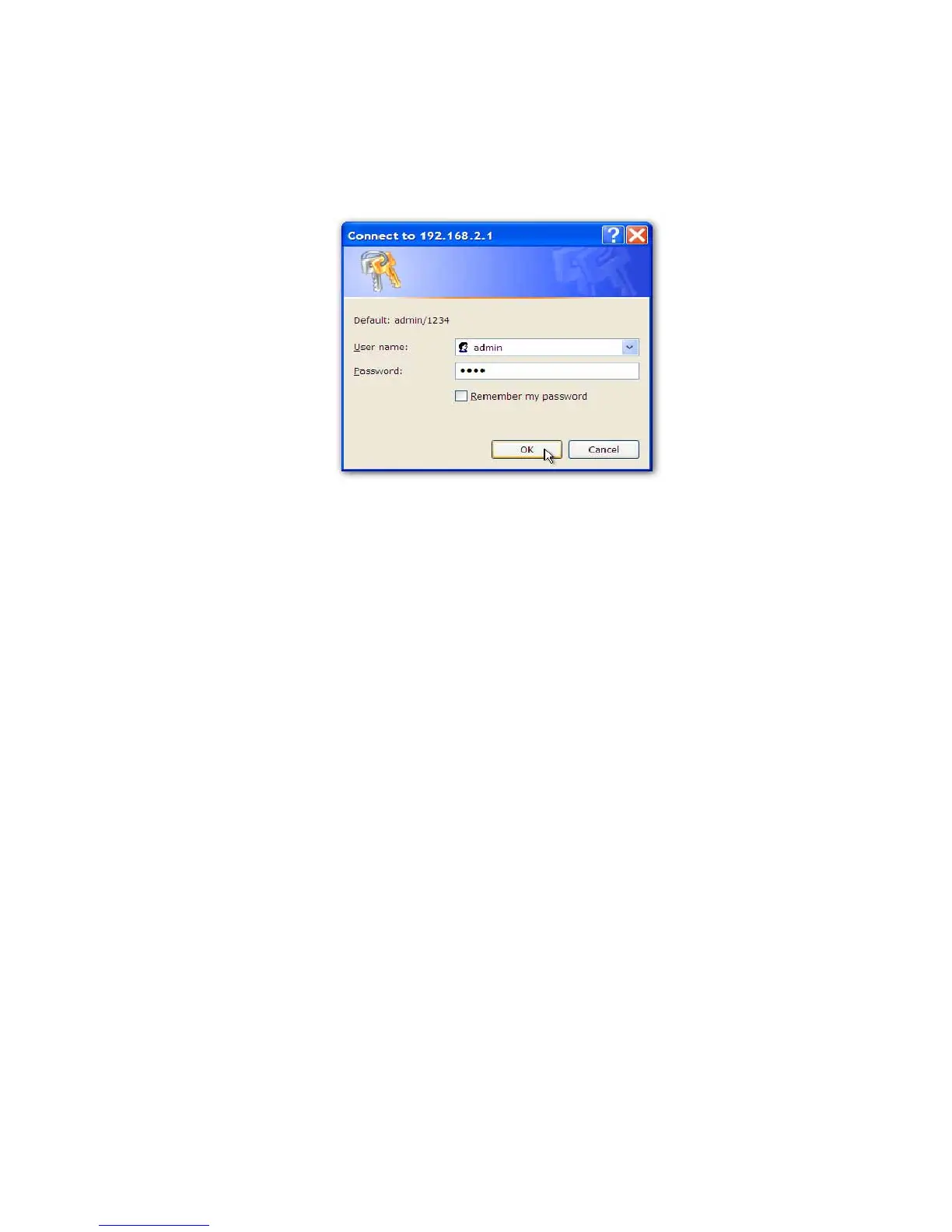

3. A screen will be popped up and request you to enter user name and password. The default user
name and password is as follows.
User Name: Admin
Password: 1234
Enter the default user name and password, then press OK button directly.
4. You can start configuring the Access Point.
From Wireless Station
1. Make sure your wireless station is in the same subnet with the Access Point. Please refer to the step
1 above for configuring the IP Address and Sub Mask of the wireless station.
2. Connect to the Access Point.
The Access Point’s default ESSID is “default” and the WEP Encryption function is disabled. Make
sure your wireless station is using the same ESSID as the Access Point and associate your wireless
station to the Access Point.
3. Enter 192.168.2.1 from Web Browser to get into the Access Point’s configuration tool.
4. Enter the user name and password and then press OK button and you are available to configure the
Access Point now.

Edimax EW-7206APg Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 2.4835 GHz
Maximum data transfer rate	100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Security algorithms	EAP-MD5, SSID, WPA, WPA2
Compliance industry standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Flash memory	2 MB
Internal memory	8 MB
Processor model	Realtek RTL8186
Antenna connector type	RP-SMA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC Class B, CE Mark
Power requirements	12V DC, 0.4A

Weight and Dimensions

Dimensions (WxDxH)	127 x 96 x 30 mm
