Edimax EW-7209APg Quick Installation Guide

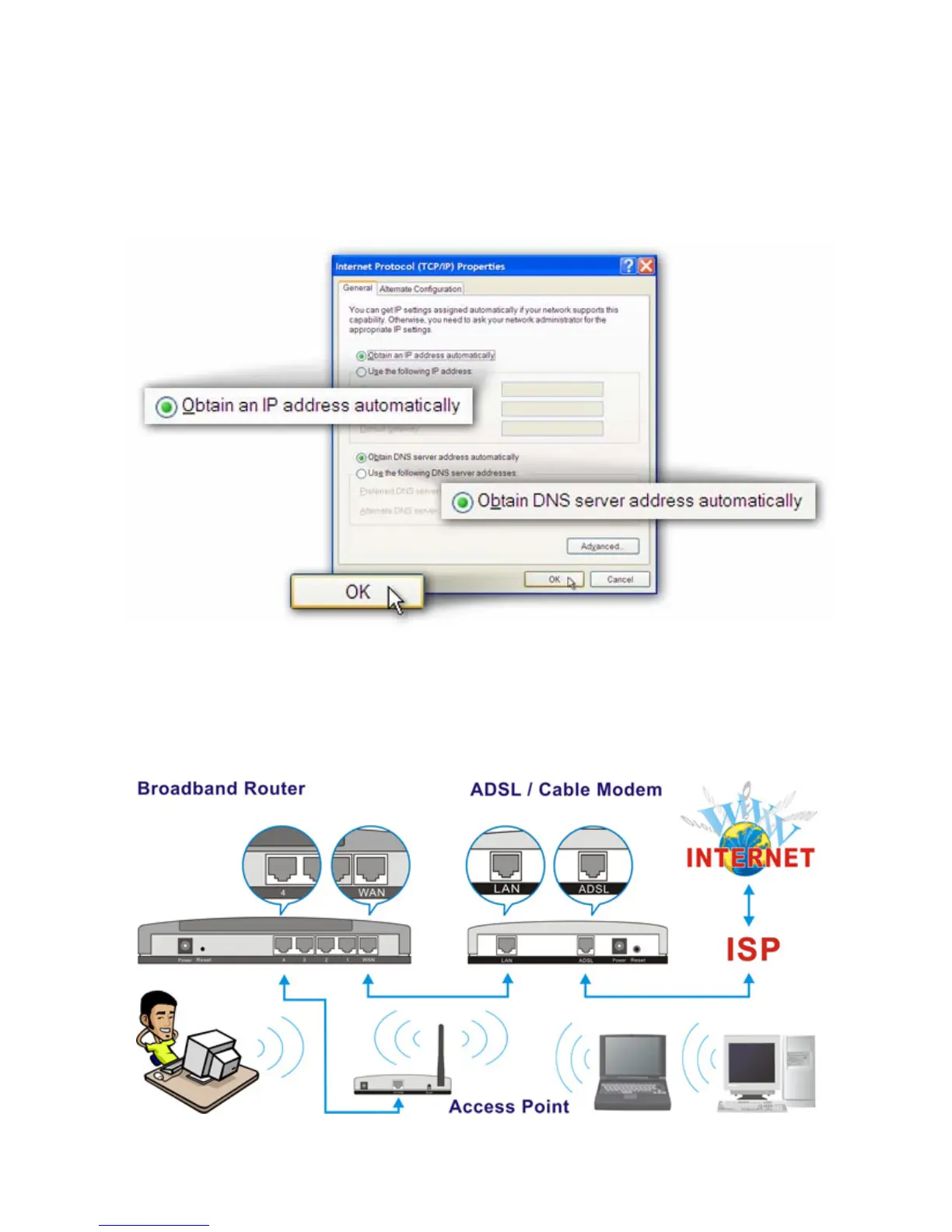

4. After the configuration is done, please change your PC’s IP
address back to original setting either “Obtain an IP address
automatically” / “Obtain DNS server address
automatically” or “Using the following IP address” / “Use
the following DNS server addresses”. Press “OK” to close.
Finally, connect the Access Point to your router or switch.
Now you can use the wireless card in your PC to connect to the
Internet / Intranet wirelessly as shown below:
11

Edimax EW-7209APg Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Maximum data transfer rate	100 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	EAP-MD5, SSID, WPA, WPA2
Compliance industry standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Flash memory	2 MB
Internal memory	16 MB
Processor model	Realtek RTL8186
Antenna connector type	RP-SMA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC Class B, CE Mark, C-Tick
Power requirements	12V DC, 1A

Weight and Dimensions

Dimensions (WxDxH)	187 x 100 x 30 mm
