Edimax EW-7209APg Quick Installation Guide

P
P
h
h
y
y
s
s
i
i
c
c
a
a
l
l
D
D
e
e
s
s
c
c
r
r
i
i
p
p
t
t
i
i
o
o
n
n

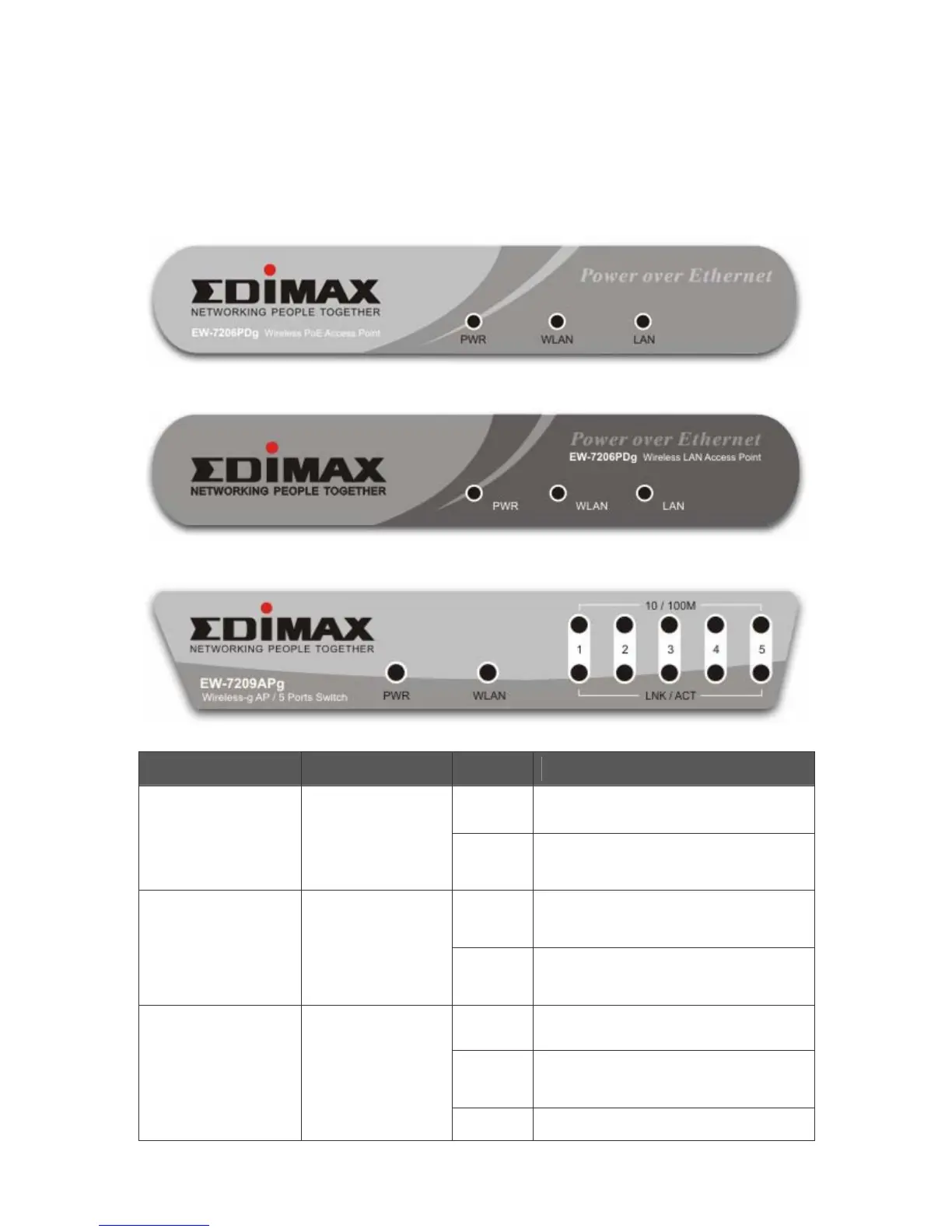

Front Panel
The LED lights located on the Access Point’s front panel provide
information of the Access Point’s current status.
EW-7206APg
EW-7206PDg
EW-7209APg
LED Color Status Description
Lit Power is supplied.
PWR
(Power)
Green
Off No Power.
Flash
Antenna is transmitting or
receiving data.
WLAN
(Wireless LAN)
Green
Orange
(EW-7209APg)
Off
Antenna is not transmitting
or receiving data.
On A valid link is established.
Flash
It is transmitting or receiving
data.
LAN
(Link / Act)
Green
Off No link is established.
4

Edimax EW-7209APg Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Maximum data transfer rate	100 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	EAP-MD5, SSID, WPA, WPA2
Compliance industry standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Flash memory	2 MB
Internal memory	16 MB
Processor model	Realtek RTL8186
Antenna connector type	RP-SMA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC Class B, CE Mark, C-Tick
Power requirements	12V DC, 1A

Weight and Dimensions

Dimensions (WxDxH)	187 x 100 x 30 mm
