Edimax EW-7209APg Quick Installation Guide

English Version.
G
G
e
e
t
t
t
t
i
i
n
n
g
g
S
S
t
t
a
a
r
r
t
t
e
e
d
d

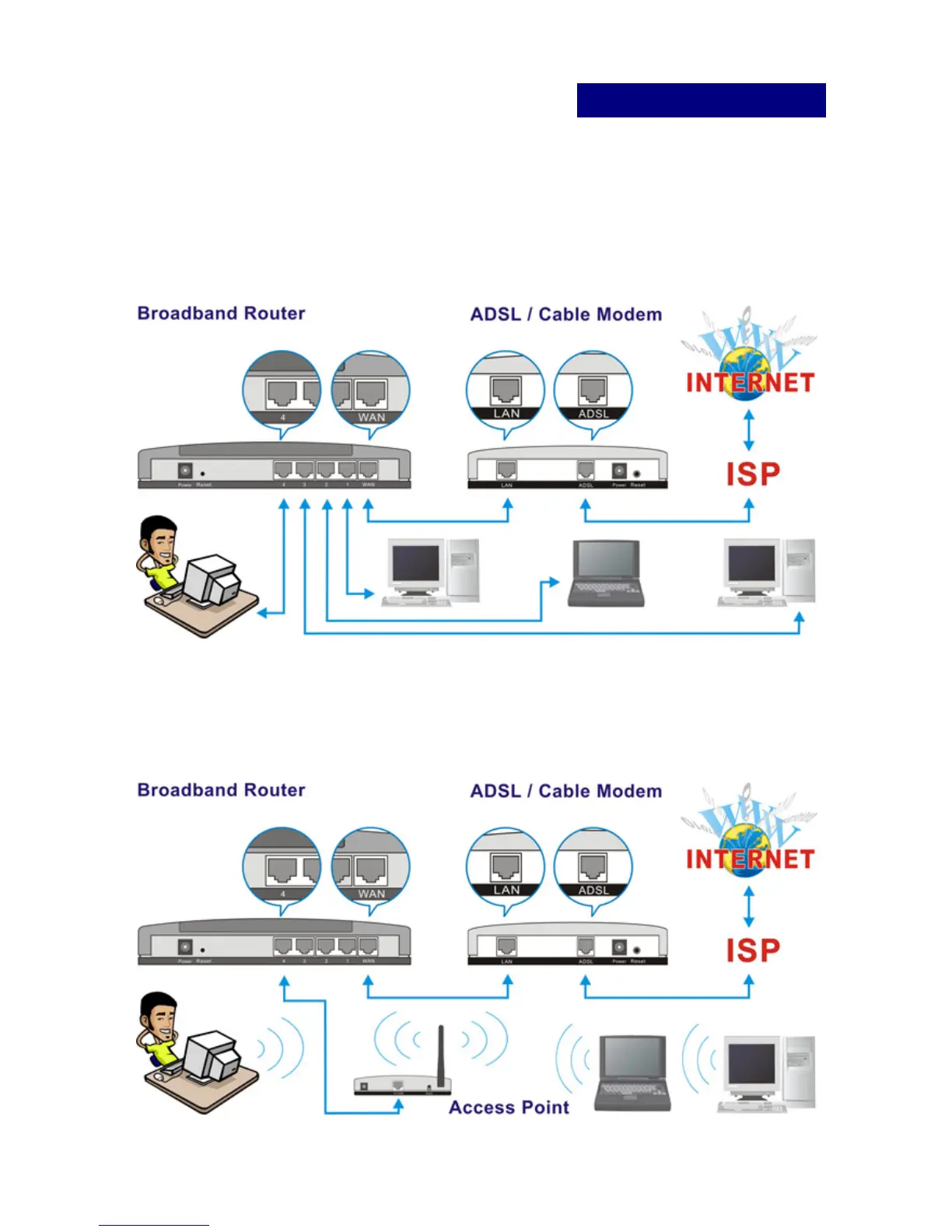

Before deploying the Access Point, please make sure all the PCs
in your wired network are able to obtain an IP address
automatically from the router like the figure below.
After the Access Point is deployed, you can surf the Internet /
Intranet wirelessly as show in the figure below.
3

Edimax EW-7209APg Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Maximum data transfer rate	100 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	EAP-MD5, SSID, WPA, WPA2
Compliance industry standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Flash memory	2 MB
Internal memory	16 MB
Processor model	Realtek RTL8186
Antenna connector type	RP-SMA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC Class B, CE Mark, C-Tick
Power requirements	12V DC, 1A

Weight and Dimensions

Dimensions (WxDxH)	187 x 100 x 30 mm
