Edimax EW-7209APg Quick Installation Guide

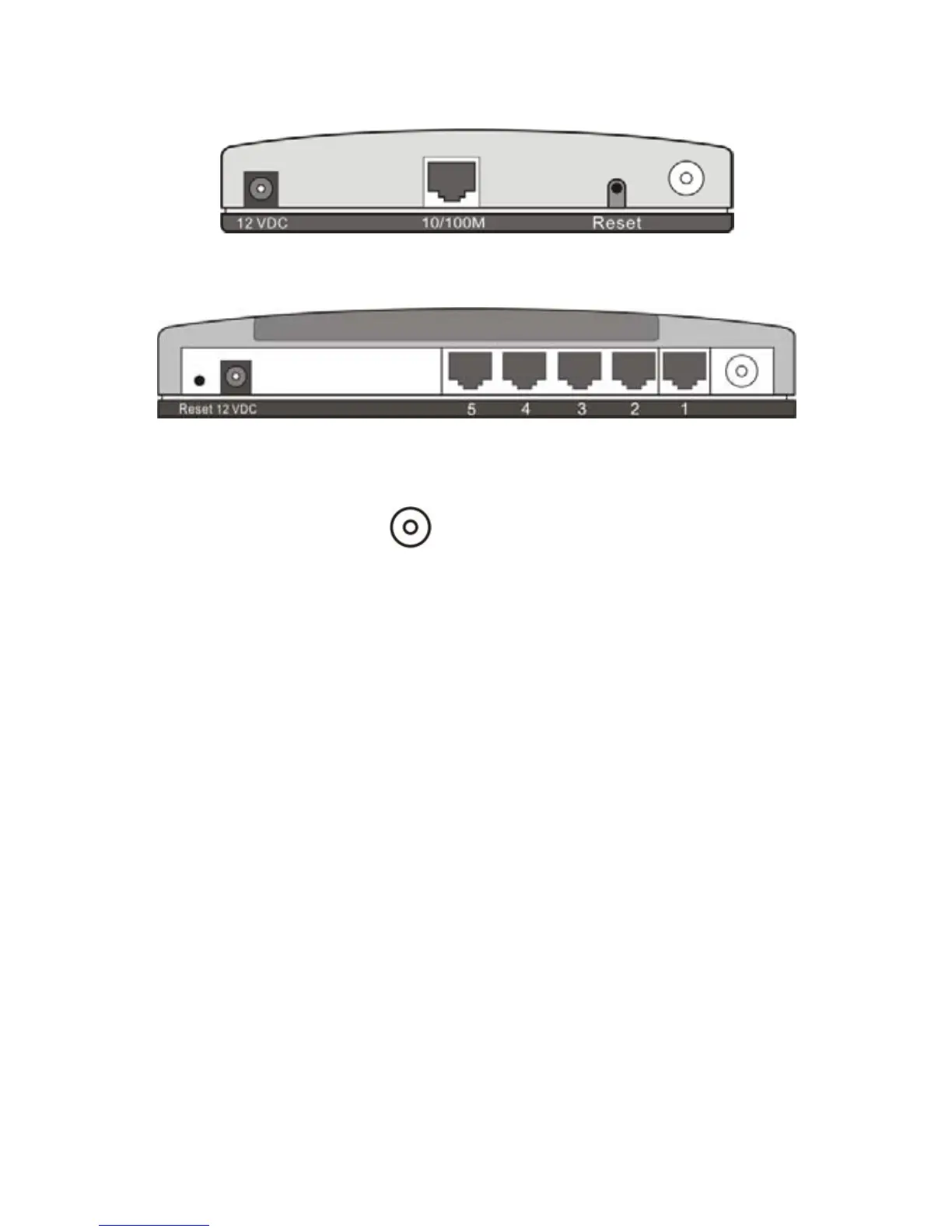

Back Panel
EW-7206APg / EW-7206PDg
EW-7209APg
z Antenna Connector
This is where you connect the antenna. It is a round connector
(standard Reverse SMA).
z 12 VDC
This is where you connect the power adapter.
z Reset
The reset button has two functions.
1. If you want to reboot the Access Point, use a pencil tip to
press the reset button no more than 4 seconds.
2. If you press and hold the reset button for more than 4
seconds, the Access Point will reset to the factory defaults
(Warning: Your settings will be deleted and replaced with the
factory default settings).
z 10/100M (EW-7206APg / EW-7206PDg )
This LAN port is where you connect the Access Point to your
Ethernet devices (switch or router).
z 1. 2. 3. 4. 5. (EW-7209APg)
These LAN ports are where you connect the Access Point to
your Ethernet devices (switches or routers) or to computers.
5

Edimax EW-7209APg Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Maximum data transfer rate	100 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	EAP-MD5, SSID, WPA, WPA2
Compliance industry standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Flash memory	2 MB
Internal memory	16 MB
Processor model	Realtek RTL8186
Antenna connector type	RP-SMA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC Class B, CE Mark, C-Tick
Power requirements	12V DC, 1A

Weight and Dimensions

Dimensions (WxDxH)	187 x 100 x 30 mm
