Edimax EW-7209APg Quick Installation Guide

W
W
i
i
r
r
e
e
l
l
e
e
s
s
s
s
L
L
A
A
N
N
A
A
c
c
c
c
e
e
s
s
s
s
P
P
o
o
i
i
n
n
t
t
C
C
o
o
n
n
f
f
i
i
g
g
u
u
r
r
a
a
t
t
i
i
o
o
n
n
To configure the other advanced settings of this Access Point with
advanced setting such as data encryption, please follow the
procedures to login the Access Point’s setup page.
To configure the more advanced settings from this Access Point,
such as data-encryption, please follow the procedure to login the
Access Point’s setup page.
The IP address of the Access Point is 192.168.2.1
First, assign an IP Address to the PC

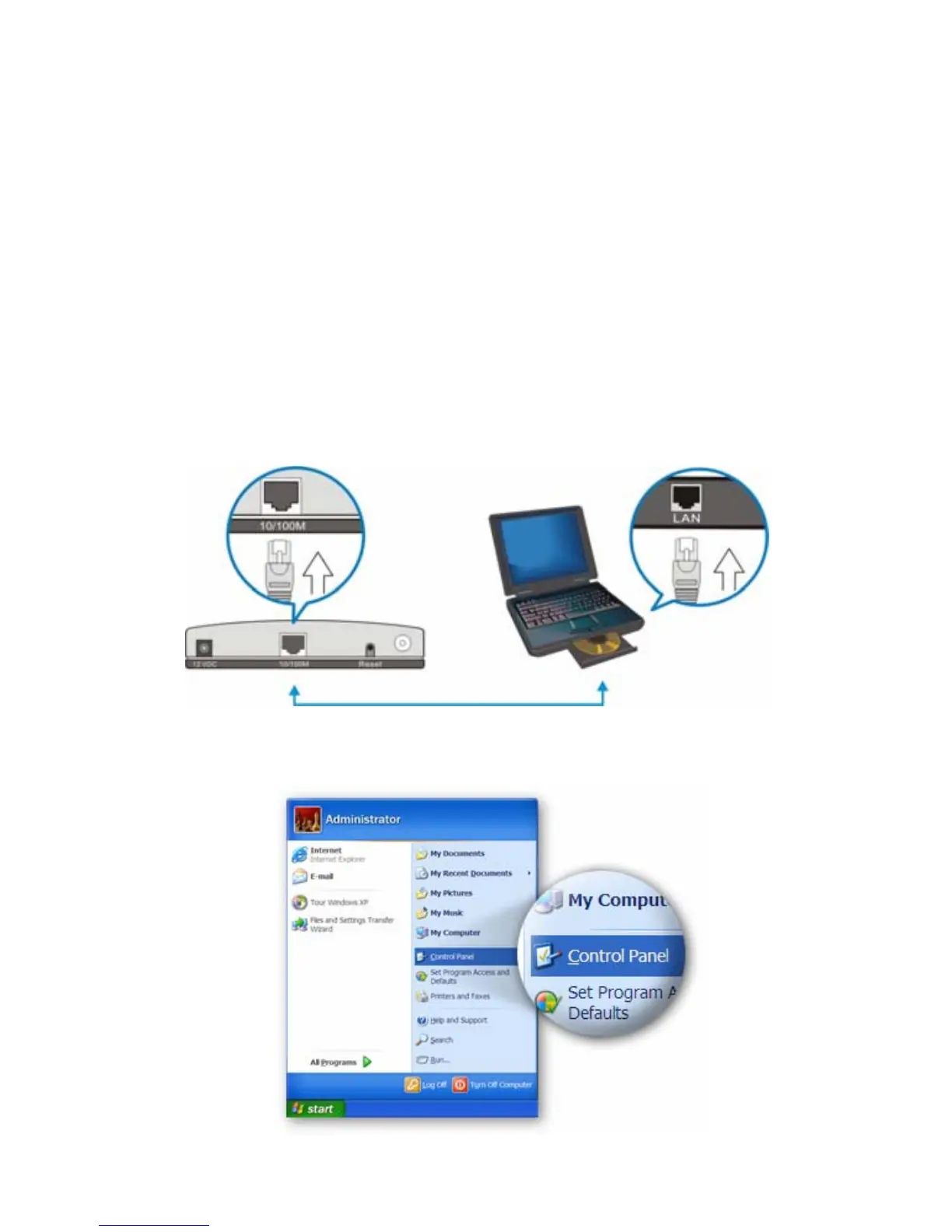

Before assigning an IP address to the PC, please connect a
network cable from the LAN port of the PC to the LAN port of the
Access Point as show below.
1. Click “Start” on the task bar then select the “Control Panel” to
open it.
6

Edimax EW-7209APg Specifications

General

2.4 GHz	Yes
Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Maximum data transfer rate	100 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	EAP-MD5, SSID, WPA, WPA2
Compliance industry standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Flash memory	2 MB
Internal memory	16 MB
Processor model	Realtek RTL8186
Antenna connector type	RP-SMA
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC Class B, CE Mark, C-Tick
Power requirements	12V DC, 1A

Weight and Dimensions

Dimensions (WxDxH)	187 x 100 x 30 mm
