18

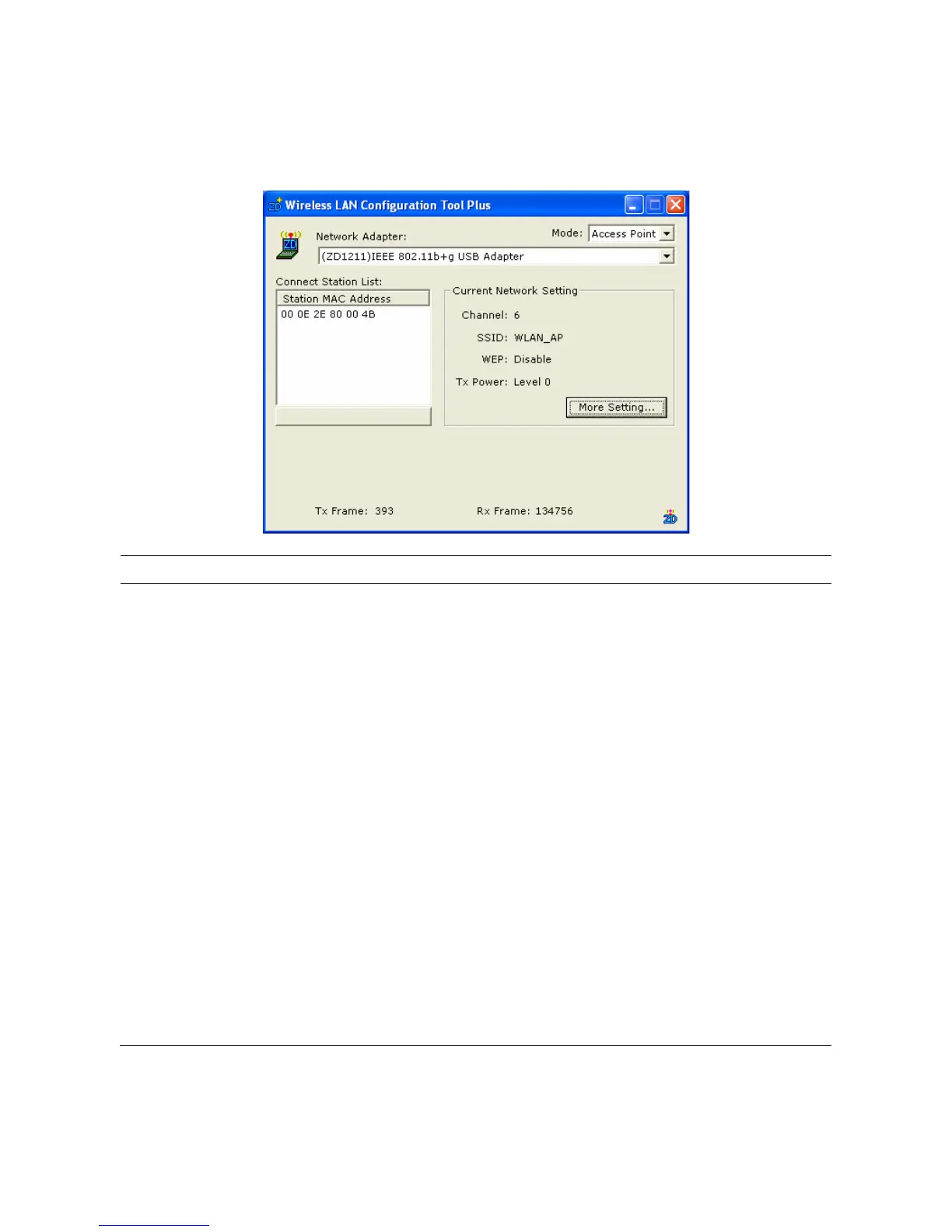

3.5.1 AP Connection Status
Parameter Description
Mode Station – Set the USB adapter a wireless client.
Access Point – Turns the USB adapter to function as a wireless
AP.
Network Adapter Display the product information of the USB Adapter.
Connect Station List Display all the MAC Addresses of the wireless adapters which are
connecting to the AP.
Current Network Setting Display the connection setting of the current network. It includes
Channel, SSID, WEP and TX Power Level.
More Setting For setting more functions including disable/enable WEP, MAC
Address Filter and Bridge Adapter, etc. Please refer to Section
3.5.2.
TX Frame It shows the number of data frames which are transmitted by the
AP successfully.
RX Frame It shows the number of data frames which are received by the AP
successfully.
To Next Page
