Edimax EW-7416APn v2 Quick Installation Guide

7

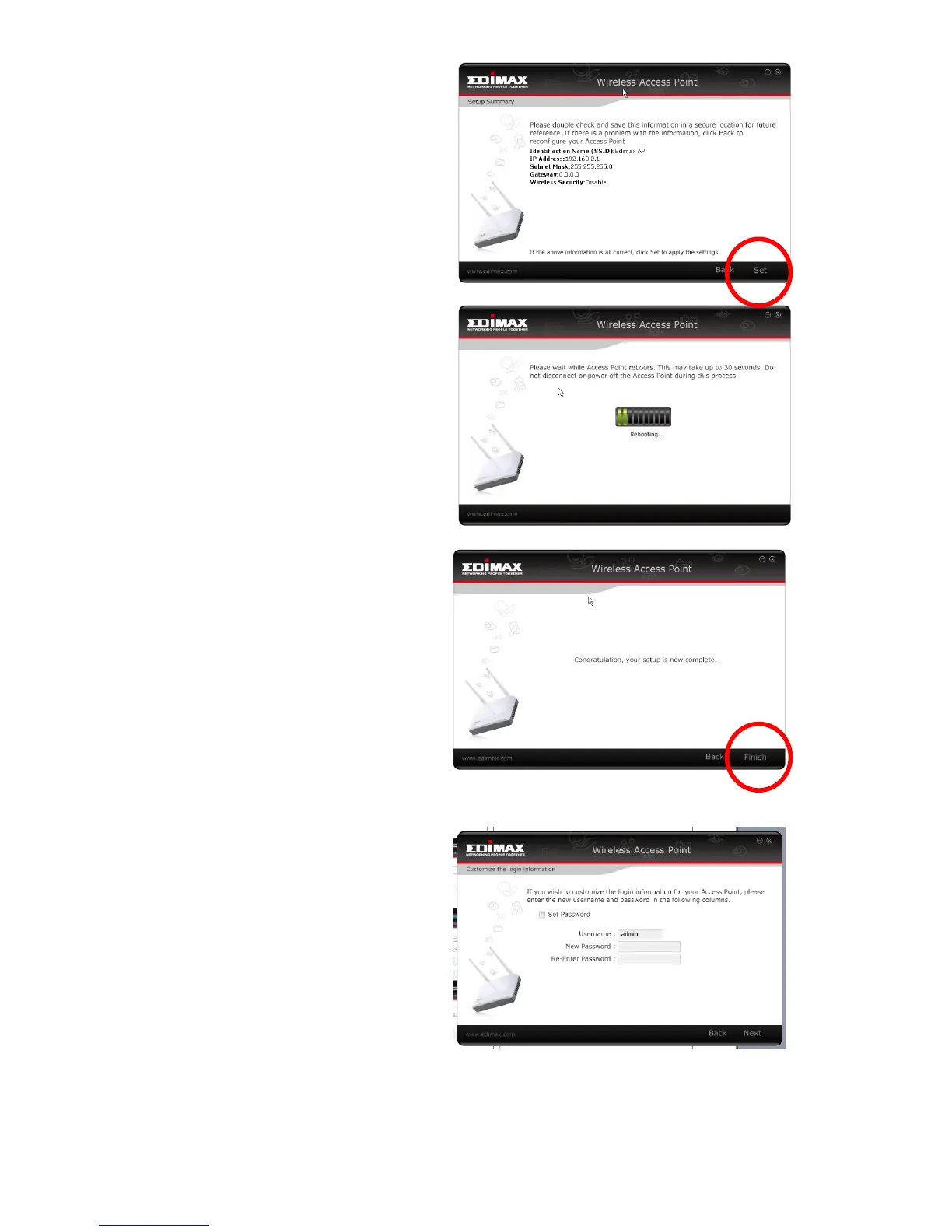

4. You will see a final confirmation
screen, listing the settings you
have selected. If everything is
correct, click “Set” to continue.
5. The device will save your settings,
then reboot. Please do not
disconnect or turn off the device
during this process.
6. After the device reboots, you
will see a final congratulation
screen. Click “Finish” to
complete the setup.
AP Client Mode
1. Select AP Client Mode and click “Next”.
2. You will have the option to
change the password used to
access the device’s configuration
settings. For first time setup,
please simply click “Next”
without changing anything.
3. The device will search for nearby wireless networks to connect to. If you
cannot find the access point you wish to connect to, click “Scan” to refresh

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	127 mm
Height	30 mm
