Edimax EW-7416APn v2 Quick Installation Guide

2
Getting Started
Before you start using this access point, please check if there’s anything
missing in the package, and contact your dealer of purchase to claim any
missing items.
 Wireless access point x 1
 CD (EZmax Setup Wizard, Multi-language Quick Installation Guide and User
Manual) x 1
 Power adapter x 1
 3dBi antenna x 2
 Accessory kit x 1
 Quick installation guide x 1

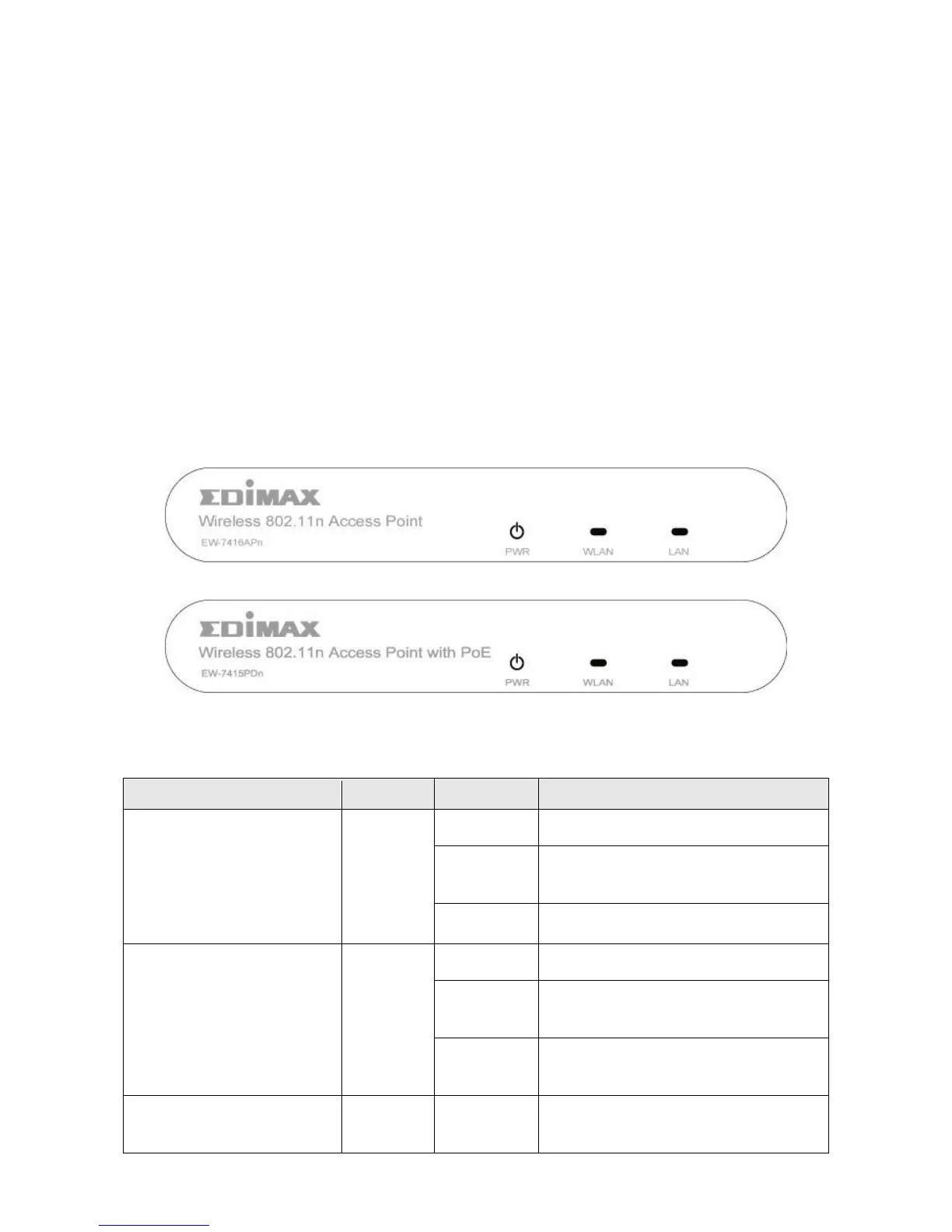

Top Panel
LED Status
Item
Color
Status
Description
PWR
(Power)
Green
On
Device is powered.
Flashing
Device is booting
up/resetting.
Off
Device is not powered.
WLAN
(Wireless LAN)
Orange
On
WPS mode is enabled.
Flashing
Data is being transmitted
wirelessly.
Off
Data is not being
transmitted wirelessly.
LAN
Green
On
Ethernet port is connected
to a valid device.

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	127 mm
Height	30 mm
