Edimax EW-7416APn v2 Quick Installation Guide

3
Flashing
Data is being transmitted
through the Ethernet cable.
Off
No valid connection.

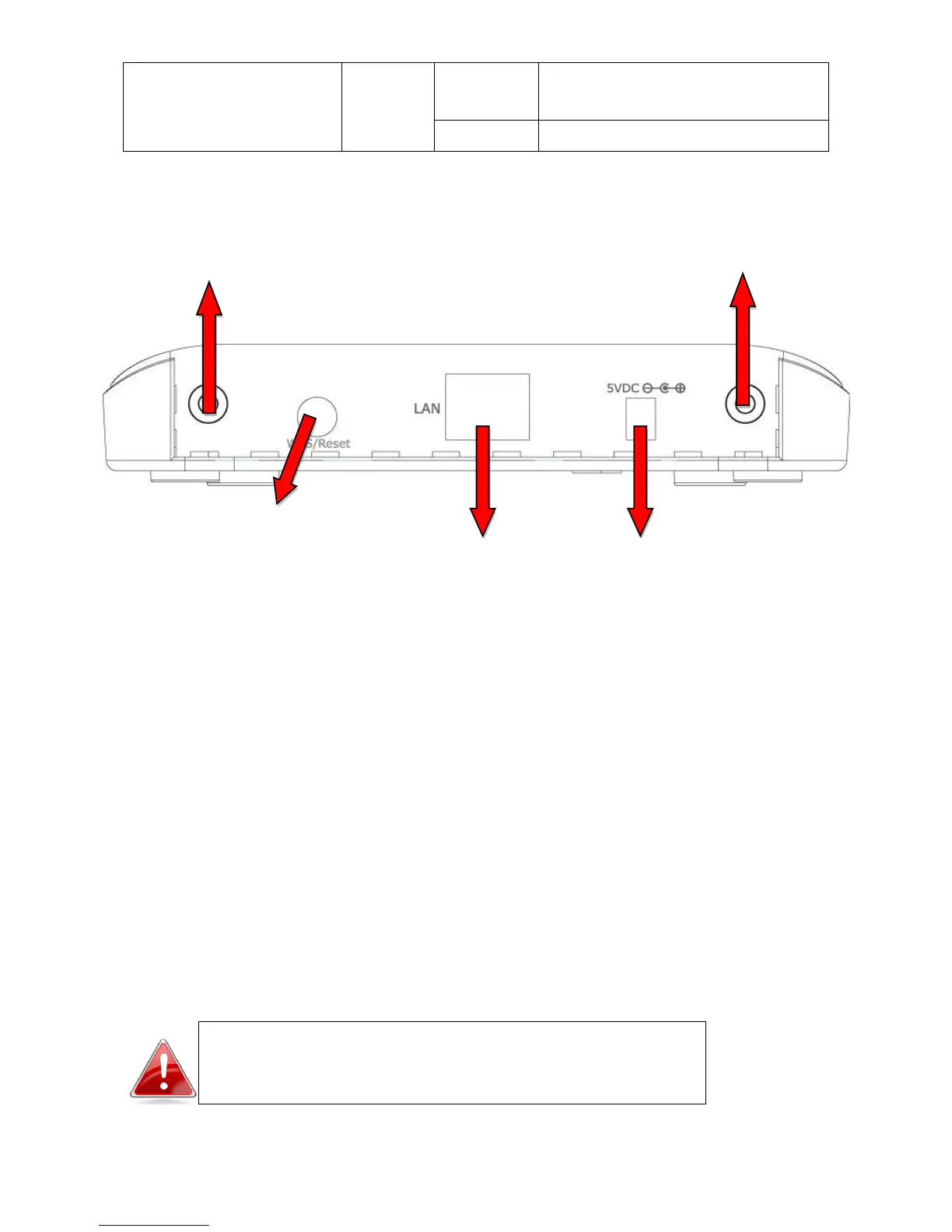

Rear Panel
a. Antenna Connector
This is where you connect the antennas. It is a round connector (standard
reverse SMA).
b. WPS/Reset Button
Press this button for less than 5 seconds to activate the WPS function. Press
and hold this button for 10 seconds, until the PWR LED starts flashing, to
reset the access point to factory default settings.
c. LAN Port
Connects this access point to other Ethernet devices (switches, routers or
other wired network devices) – for the EW-7415PDn this is where you
connect the access point to a PoE switch.
d. 5V DC
This is where you connect the power adapter.
Note: If you are using the EW-7415PDn with a PoE
switch, you do not need to connect the power
adapter.
(a) Antenna
(1 of 2)
(c) LAN Port
(d) Power Port
(b) WPS/Reset
Button
(a) Antenna
(2 of 2)

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	127 mm
Height	30 mm
