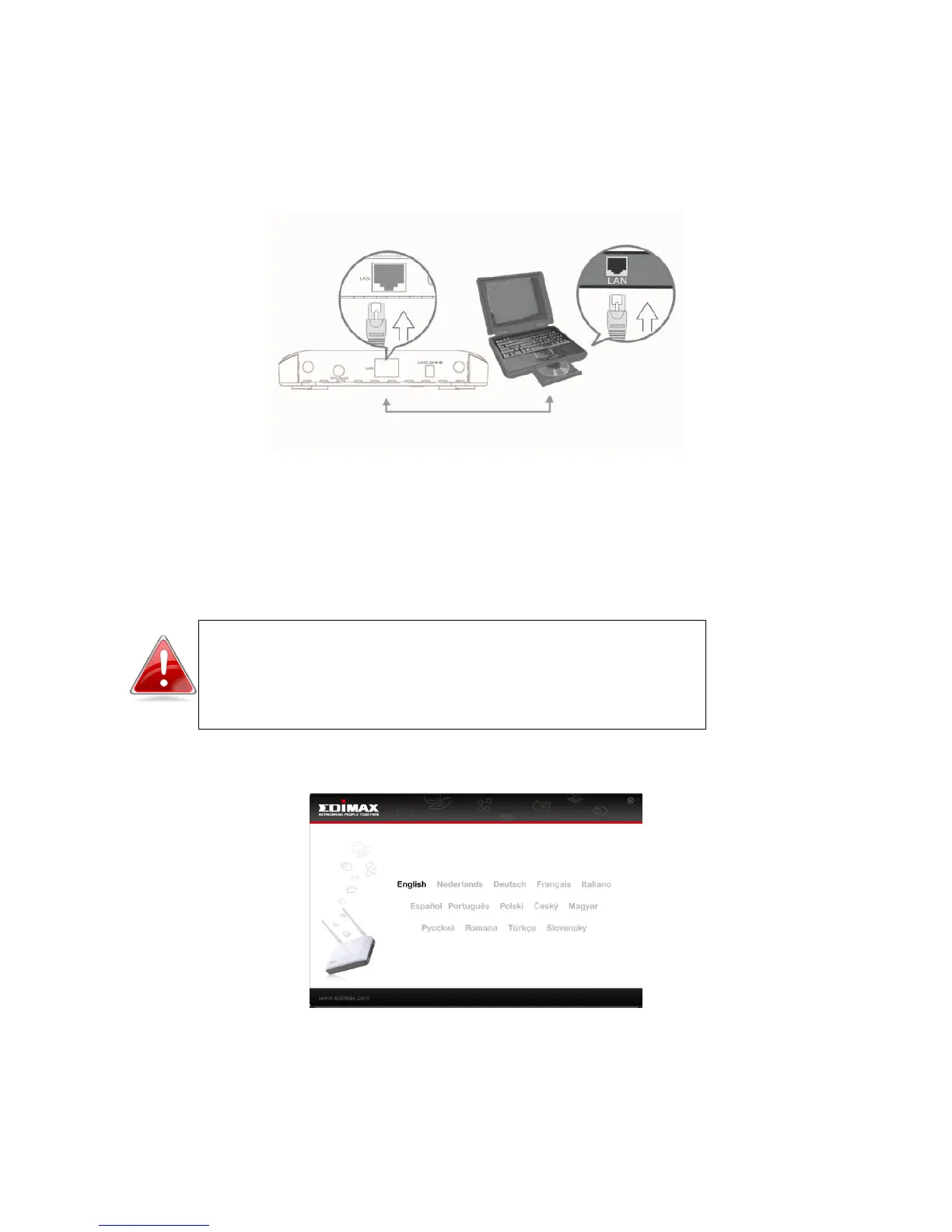

Edimax EW-7416APn v2 Quick Installation Guide

4
Installation for Windows PC
1. Connect one end of an Ethernet cable to the Ethernet port on your
computer. Connect the other end to an Ethernet port on the access point.
2. Plug the power adapter into the device’s 5V power port, and plug the
adapter into a wall socket. The PWR LED should light up.
3. Insert the Edimax CD into your computer’s CD drive. When the AutoPlay
screen appears, select “Run Autorun.exe”.
Note: If a popup window appears asking “Do you
want to allow the following program to make
changes to this computer”, please click “Yes” to
continue.
4. Click on “Setup Utility” in the main menu, then select “English” to continue.
5. The setup wizard will search for the access point. When it has successfully
found the device, click “Next” to continue.

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	127 mm
Height	30 mm
