Edimax EW-7416APn v2 Quick Installation Guide

9
Repeater Mode (WiFi Extender)

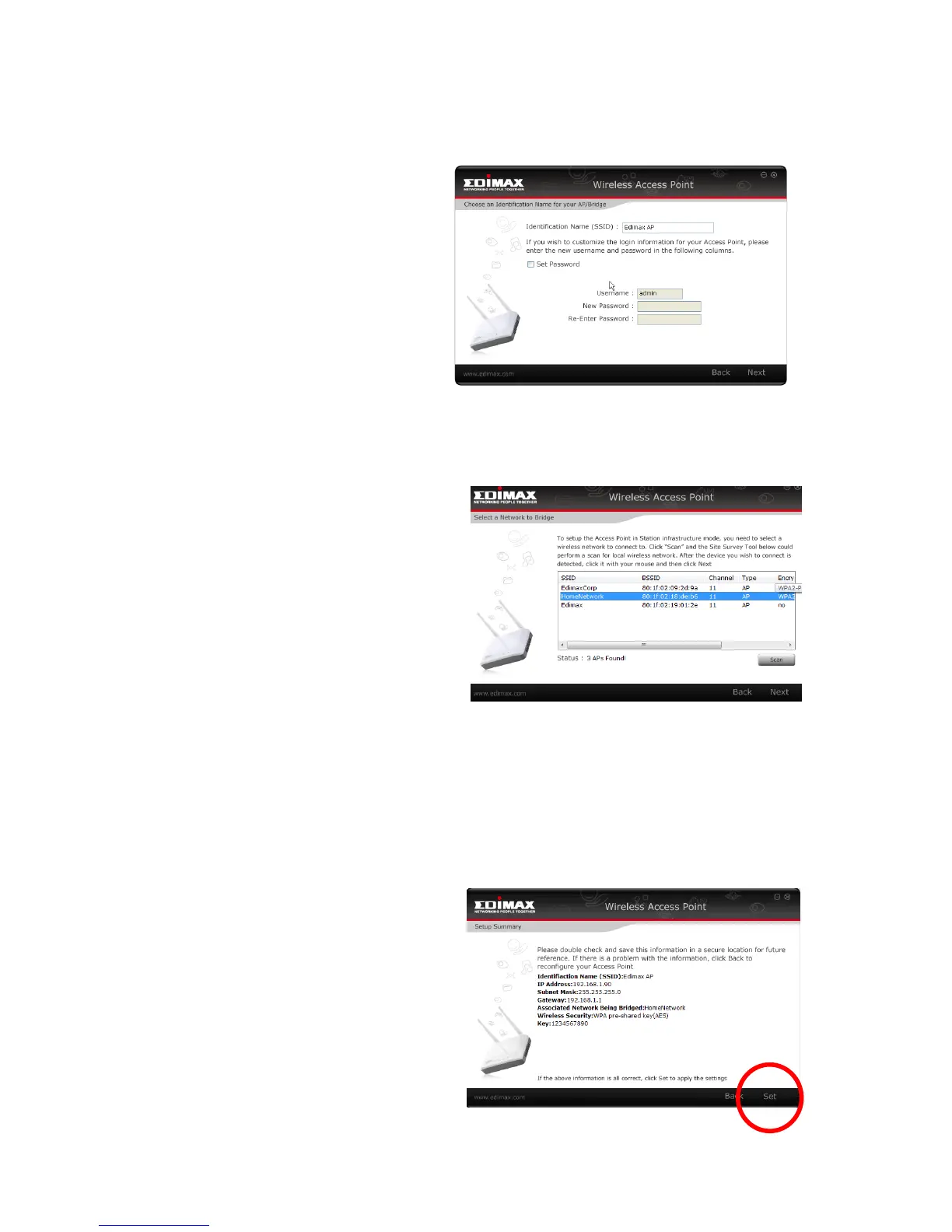

1. Select Repeater Mode and click “Next”.
2. You will be prompted to set the
SSID of this device. The SSID will
be the name of the device when
you connect to it wirelessly. The
default SSID is Edimax AP, you
are option to change it to the
same SSID as your current
wireless network. This page also
offers the option to change the
password used to access the device’s configuration settings.
3. The device will search for nearby
wireless networks to connect to. If
you cannot find the access point
you wish to connect to, click
“Scan” to refresh the list of
wireless networks. Select the
wireless network you wish to
connect to, and click “Next” to
continue.
4. If the wireless network you selected requires a network security key, enter
it here. If you do not know the network security key then please refer to
Appendix “How to Find Your Network Security Key” for guidance. Click
“Next” to continue when finished.
5. You will see a final confirmation
screen, listing the settings you
have selected. If everything is
correct, click “Set” to continue.

Edimax EW-7416APn v2 Specifications

General

2.4 GHz	Yes
Modulation	-
Frequency band	2.4 - 2.4835 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Flash memory	4 MB
Internal memory	16 MB
Processor model	Ralink RT3052
Compatible operating systems	Windows 95/98/ME/2000/XP/Vista
Internal	No
Certification	CE, FCC
Product color	White
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, TKIP, WPA, WPA2, WPS
Antennas quantity	2
Antenna gain level (max)	3 dBi
Input current	1 A
AC input voltage	5 V
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	127 mm
Height	30 mm
