Edimax EW-7438AC User Manual

5
I-5. WPS Setup
The WPS button is a quick and easy method to establish a secure connection
between your EW-7438AC and wireless router/access point.
If your wireless device supports WPS (Wi-Fi Protected Setup) then you can use
this method to setup your wireless extender in extender or adapter/bridge
mode, instead of the setup wizard described in II. Installation.
Please do not hold the WPS button for too long – this may reset
your device.

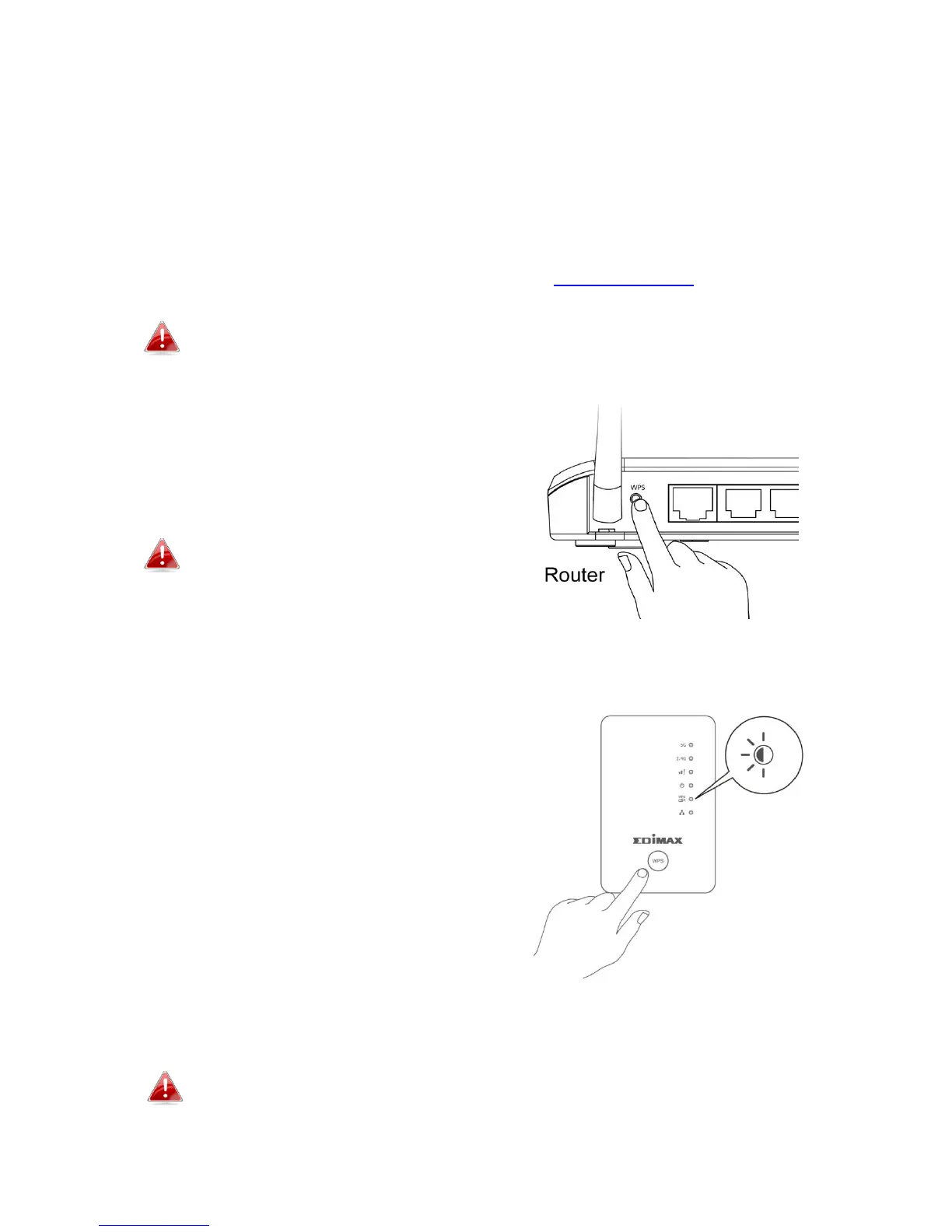

1. Press the WPS button on your wireless
router/access point for the correct
length of time to activate its WPS.
Please check the instructions for
your wireless device for how long
you need to hold down its WPS
button to activate WPS.
2. Within two minutes, press and hold
the WPS button on the wireless
extender for two seconds. The
extender’s blue WPS LED should flash
to indicate that WPS is in progress.
3. The devices will establish a connection.
The extender’s blue WPS LED should
display on for 30 seconds to indicate a
successful connection.
The extender can establish either a 2.4GHz or 5GHz connection
using the WPS button. By default the extender will establish a
5GHz connection where available. Use iQ Setup to extend both
2.4GHz & 5GHz together.

Edimax EW-7438AC Specifications

General

Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	802.1x RADIUS, 64-bit WEP, WPA2-PSK, 128-bit WEP, WPS, WPA-PSK
Networking standards	IEEE 802.3u, IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.1x, IEEE 802.3, IEEE 802.11g
Wi-Fi data rate (max)	750 Mbit/s
Certification	FCC, CE
Product color	White
Antennas quantity	3
Input current	0.16 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Type	Network transmitter & receiver

Weight and Dimensions

Depth	40 mm
Width	59 mm
Height	91 mm
Weight	106 g
