Edimax EW-7438AC User Manual

6
I-6. Reset to Factory Default Settings
If you experience problems with your extender or if you want to change the
extender to a different operating mode, you can reset the device back to its
factory settings. This resets all settings back to default.

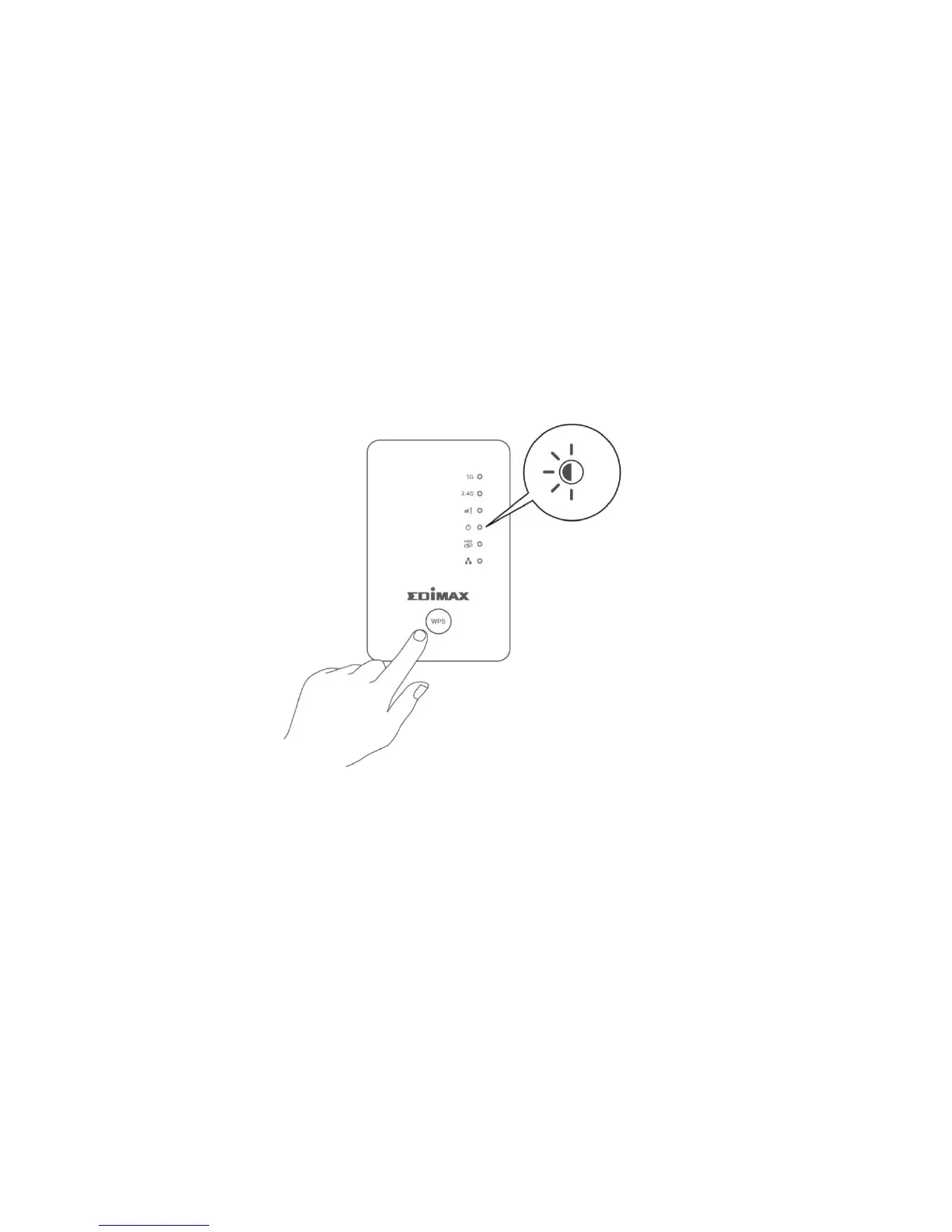

1. Press and hold the WPS button for at least 10 seconds and release when
the white power LED is flashing.
2. Wait for the extender to restart. The extender is ready for setup when the
white power LED displays on.

Edimax EW-7438AC Specifications

General

Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	802.1x RADIUS, 64-bit WEP, WPA2-PSK, 128-bit WEP, WPS, WPA-PSK
Networking standards	IEEE 802.3u, IEEE 802.11a, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.1x, IEEE 802.3, IEEE 802.11g
Wi-Fi data rate (max)	750 Mbit/s
Certification	FCC, CE
Product color	White
Antennas quantity	3
Input current	0.16 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Type	Network transmitter & receiver

Weight and Dimensions

Depth	40 mm
Width	59 mm
Height	91 mm
Weight	106 g
