Edimax EW-7811UN Quick Start Guide

4

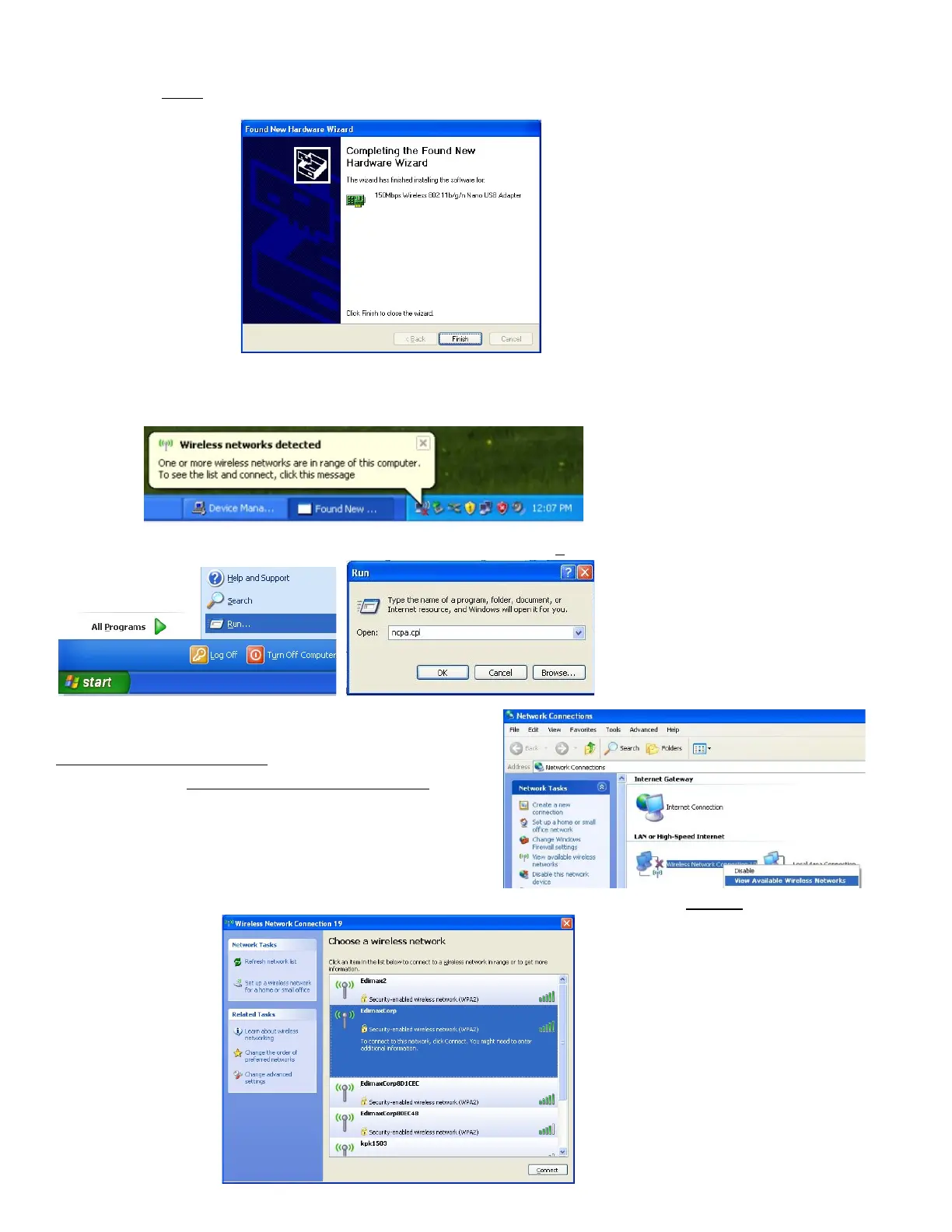

9. Click on the Finish button.
10. You may see a prompt saying “Wireless networks detected” in the system tray. There is a red X on the WiFi icon on
system tray. Click on that prompt box to go to next step.
If you do not have that prompt window, you can click on Start. Click on Run. Type in “ncpa.cpl” hit Enter key.
You will get into the Network Connection Window. There is a
Wireless Network Connection icon. Right click on it and
choose the option View Available Wireless Networks.
11. Windows XP detects available wireless networks. Select your WiFi network. Click on “Connect” button.

Edimax EW-7811UN Specifications

General

Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Ethernet LAN	No
Frequency range	2.4 - 2.4835 GHz
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA2
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	150 Mbit/s
WLAN data transfer rates supported	1, 2, 6, 9, 11, 12, 24, 36, 48, 54, 72, 150 Mbit/s
Interface	WLAN
Connectivity technology	Wireless
Chipset	-
Certification	CE, FCC, WiFi
Product color	Black, Gold
LED indicators	Activity, Link
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	7.1 mm
Width	14.9 mm
Height	18.5 mm
