I-3. LED Status
Code
Name
Indication / Function
A
POWER LED
Off: power off or fail
On: power on
B
Link/Act
Off: port disconnected or link fail
On: 10/100/1000M connected
Blinking: sending or receiving data.
C
PoE OUT
Off: PoE power output off
On: PoE power output on
D
PoE IN
Off: PoE power output off
On: PoE power input on

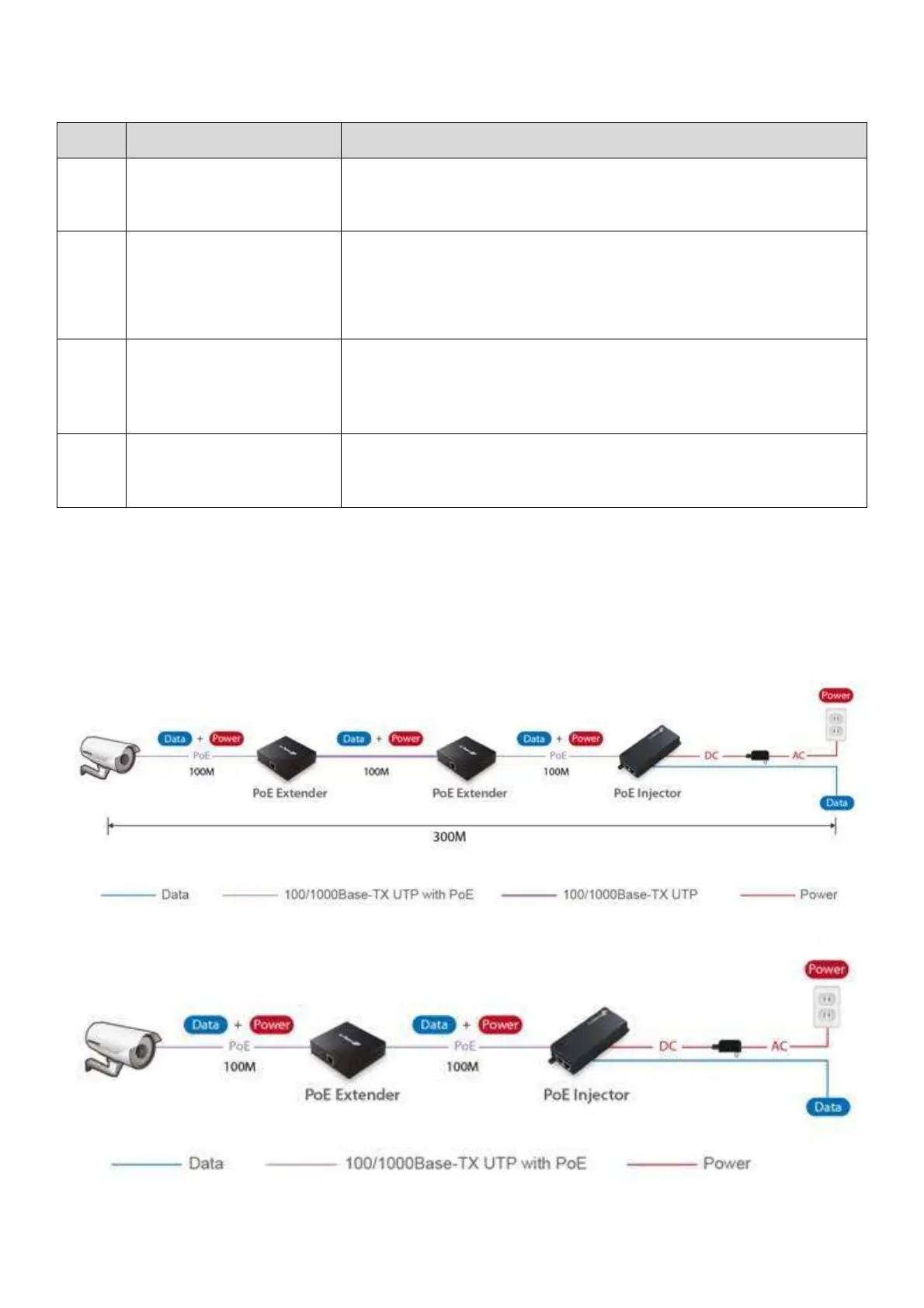

I-4. Connections
Connect the Extender as shown below:
