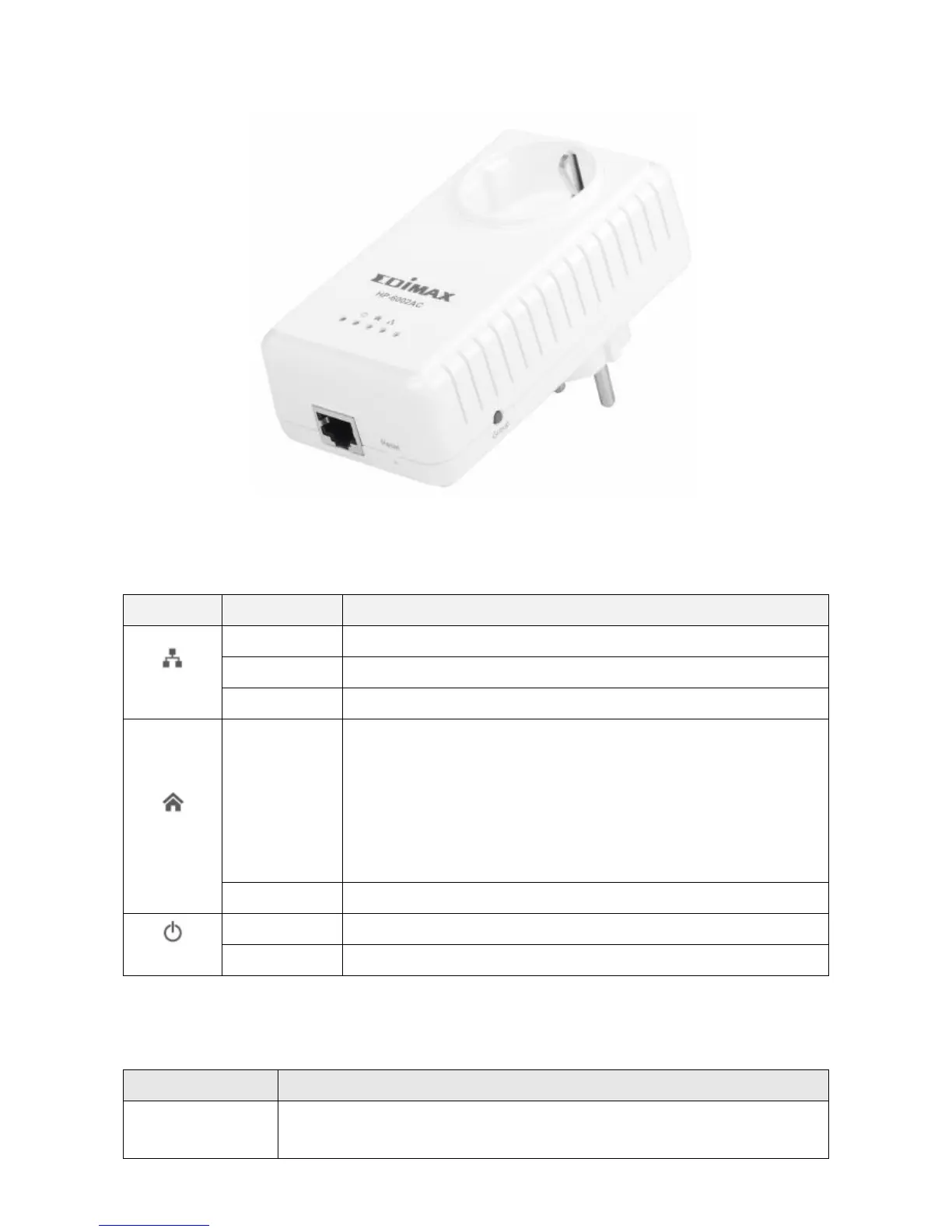

Chapter 2: Interfaces
2.1 LEDs
LED
Status
Description
LAN1-3
Green
LAN port connected
Blinking
LAN activity (transferring data)
Off
LAN port not connected
PLC
Green
The green indicator turns on and the green
indicator turns blinks slowly when the device is
detecting a powerline link.
The green indicator turns on and the green
indicator turns blinks quickly to indicate data is
being transferred over the powerline link.
Off
No other PLC device detected
PWR
Green
Powered on
Off
Powered off
2.2 Button
Interface
Description
Integrated
Power Socket
The integrated electrical socket enables additional
terminal devices or multiple socket to be connected to
