Installation

A505-75-880 Issue B

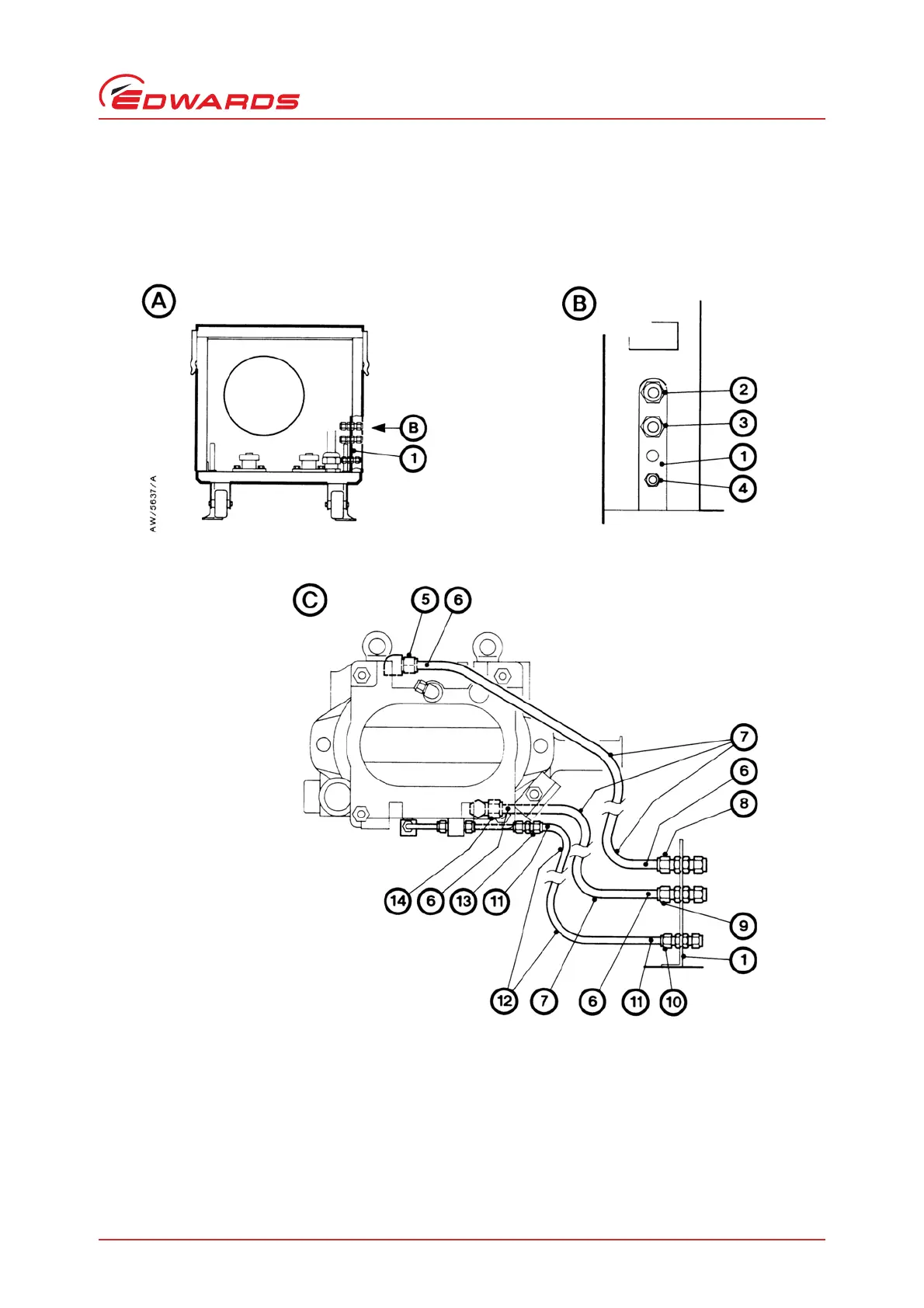

Figure 3 - Connect the cooling-water and nitrogen pipelines

1. Services panel

2. Cooling-water outlet

3. Cooling-water inlet

4. Nitrogen inlet

5. Pump outlet elbow

6. 1/2 inch tube insert

7. 1/2 inch vinyl tube

8. Cooling-water outlet fitting

9. Cooling-water inlet fitting

10.Nitrogen inlet fitting

11.1/4 inch tube insert

12.1/4 inch vinyl tube

13.Pump nitrogen inlet

14.Pump water inlet banjo fitting
