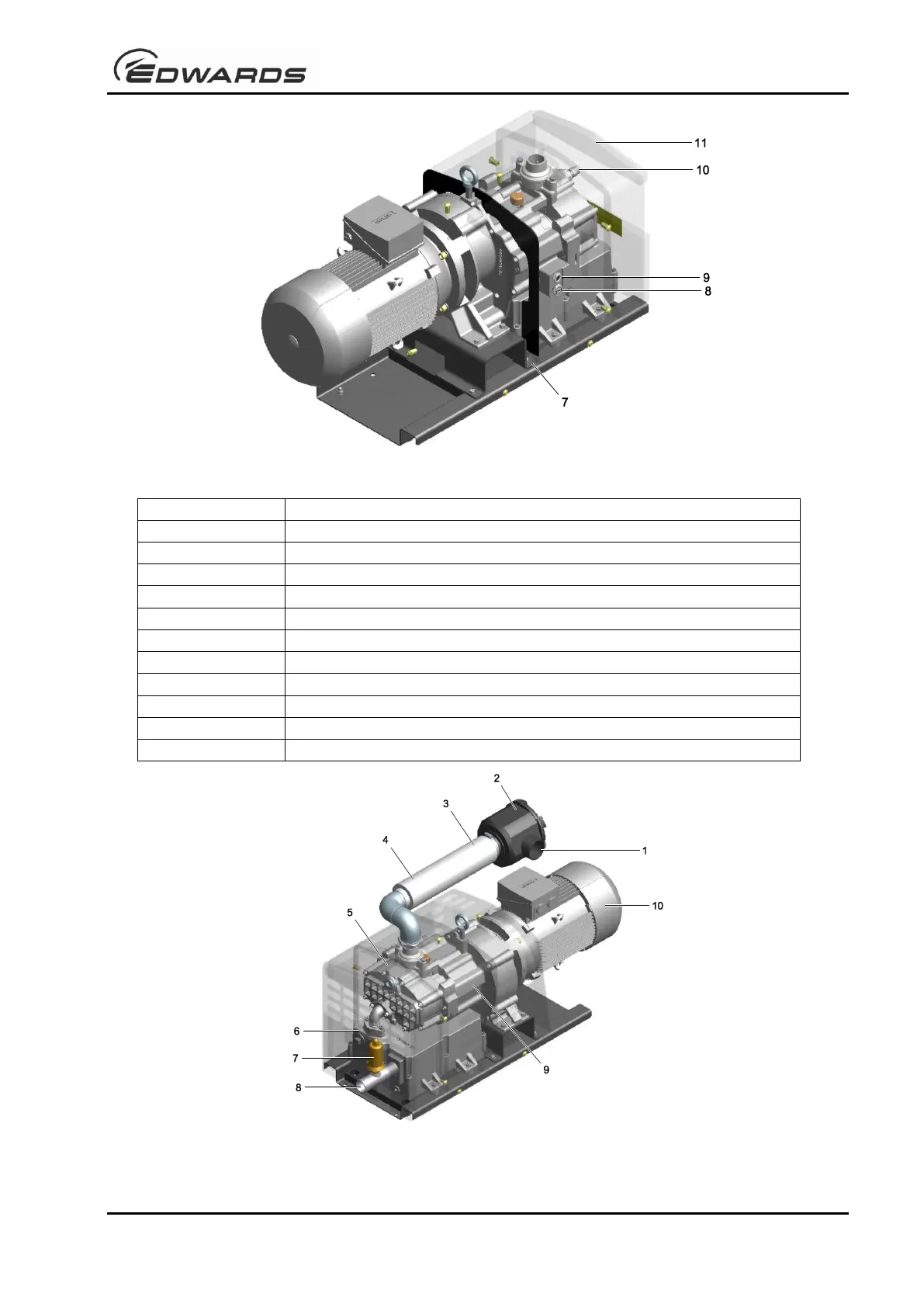

Figure 02 - EDS 065, EDC 150, EDC 300 Dry claw vacuum pumps front view
Reference
Name
1
Drive motor (Fixed speed or inverter driven)
2
Gearbox
3
Inlet Non Return valve
4
Element
5
Exhaust silencer
6
Air outlet
7
Base frame
8
Oil drain plug
9
Oil sight glass
10
Vacuum relief valve
11
Noise reducing canopy
Figure 03 - EDC 150, EDC 300 Dry claw overpressure pumps back view
