A73502840_D - Replace the tip seals
Page 12
4. Remove any tip seal debris which may have been produced while inserting the new
tip seals.

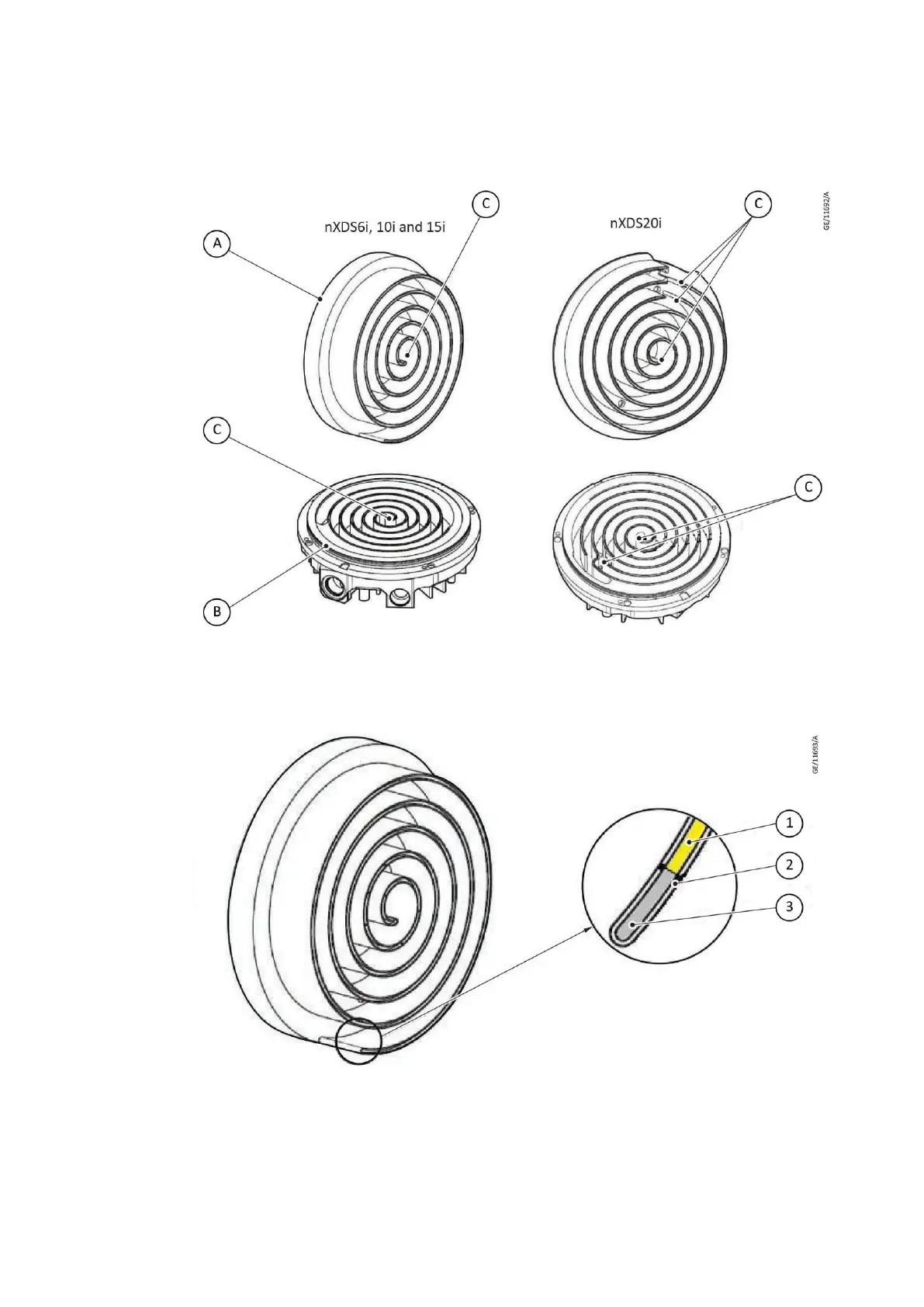

Figure 8 Tip seal fitting
A. Orbiting scroll B. Fixed scroll
C. Start
Figure 9 Tip seal finish mark
1. Tip seal 2. Cut mark
3. Gap (approximately 20 mm)
