Edwards XDS 5

© Edwards Limited 2010. All rights reserved. Page 3
Edwards and Edwards logo are trademarks of Edwards Limited.
Introduction
A726-01-880 Issue M

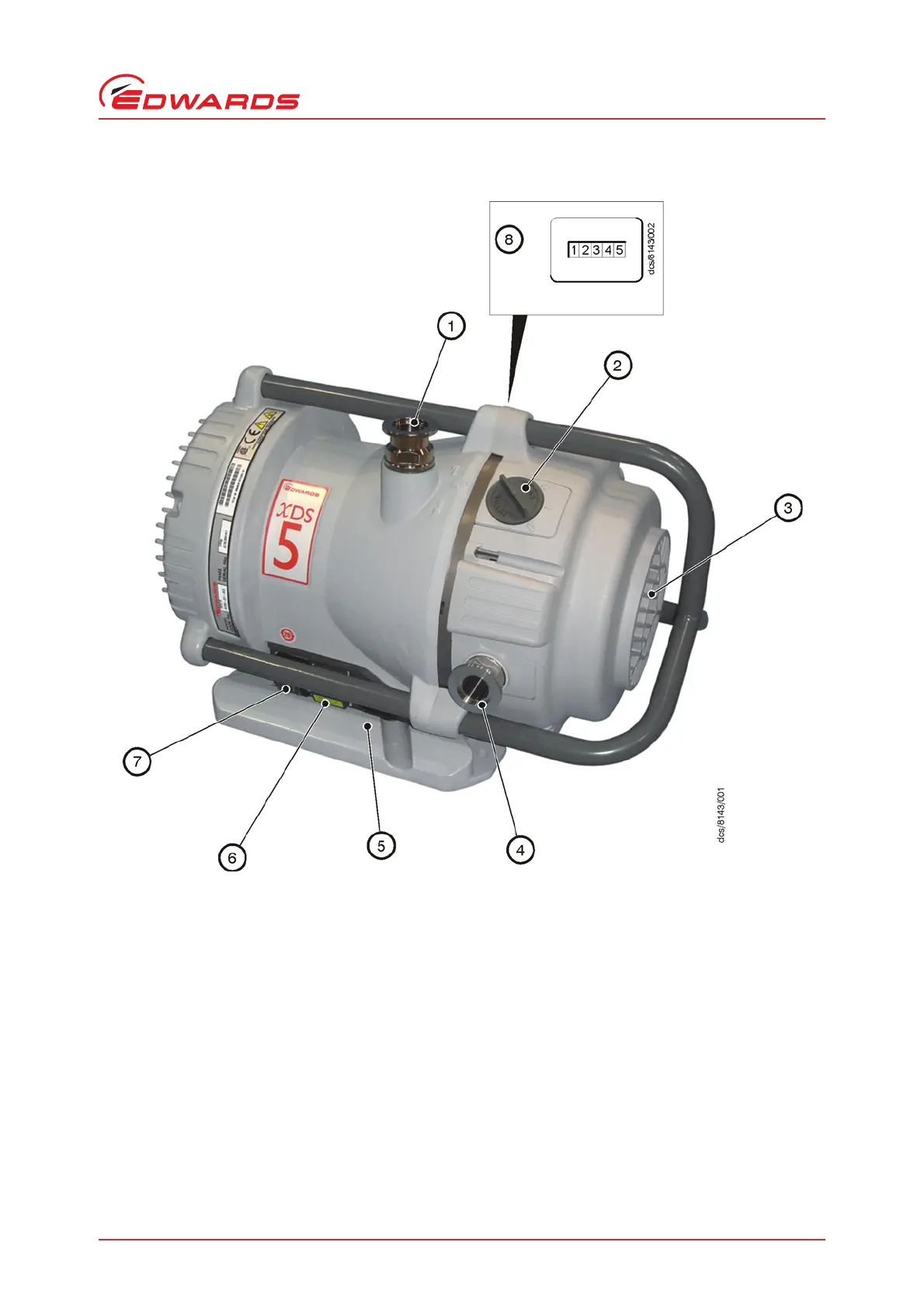

Figure 1 - The single-phase XDS dry pump
1. NW25 inlet port
2. Gas-ballast control (not fitted on 05 variant)
3. Cooling fan
4. DN25NW/3/4 inch BSP exhaust
5. Baseplate
6. Voltage indicator
7. On/Off switch
8. Hour counter
