EEG HD1492 - HD1492 Installation; Rear Module Configurations

HD1492 HD Encoder Frame Card
2 Installation
2.1 Rear Modules
There are two back panel configurations available for the HD1492. The
single-width rear panel is shown here, followed by a guide to the con-
nectors it contains.

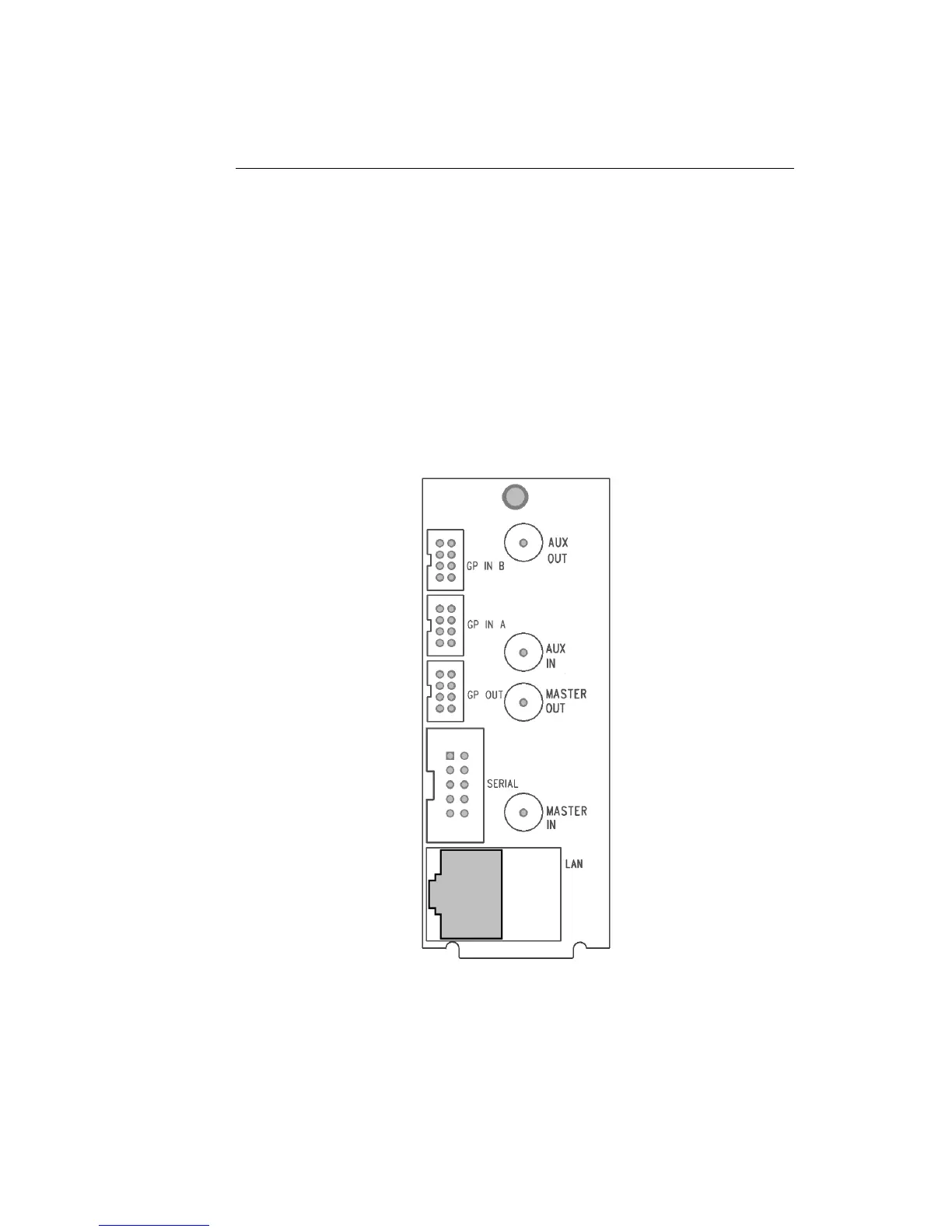

2.1.1 Single-Width Rear Module
4
