EFD 900 - Page 4

900
4

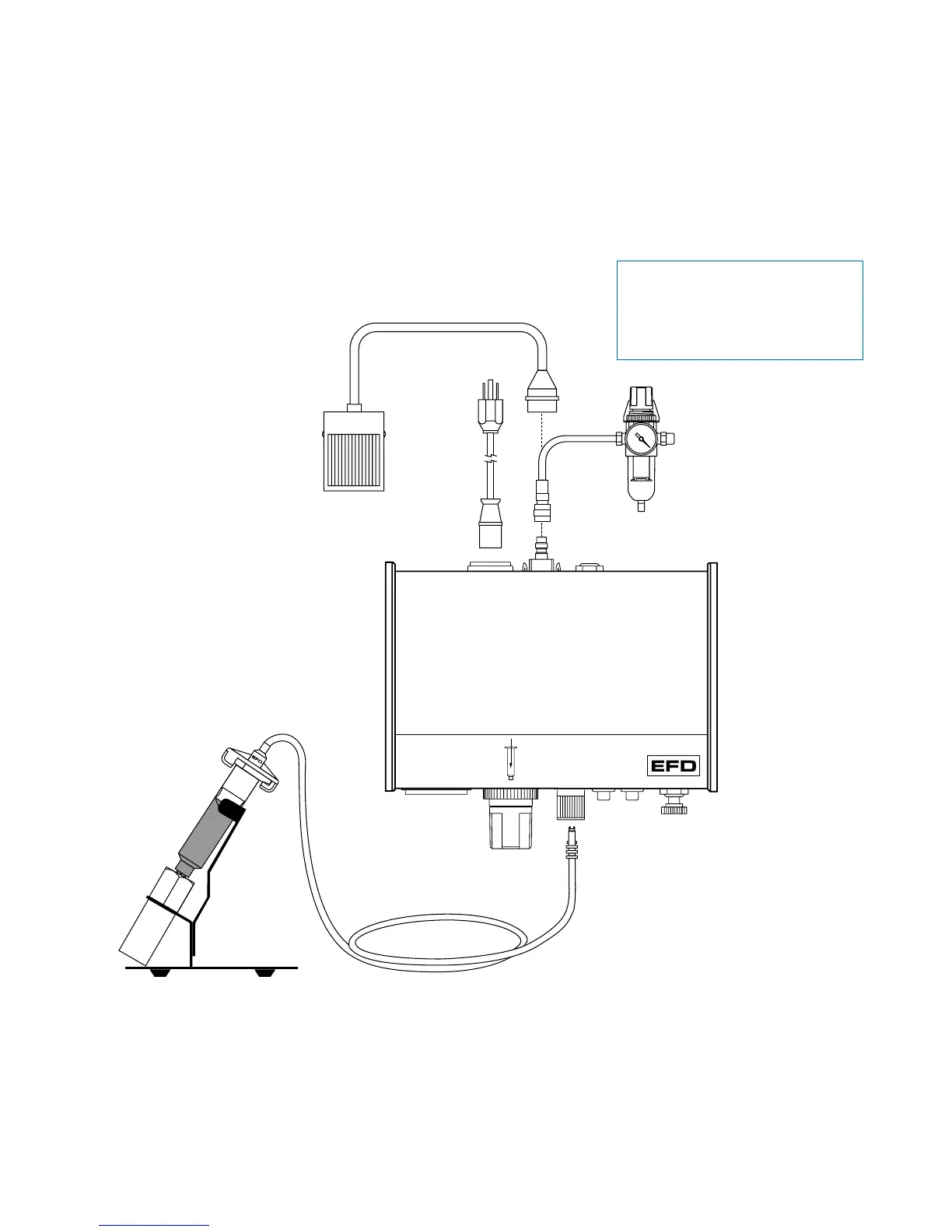

Plant air, 125 psi maximum to
regulator. Output from regulator
should be a minimum of 80 psi,
maximum 100 psi.
❶
❷
Check voltage label
on dispenser
❸
❼
Male quick-connect,
insert and twist to lock
Blue test
fluid
❹
❻
❺
Air input
hose
Power cord
Adapter
assembly
Foot pedal
assembly
Note: For hookup purposes,
connections for the 900,
900-15 and 900-CA models
are identical.
