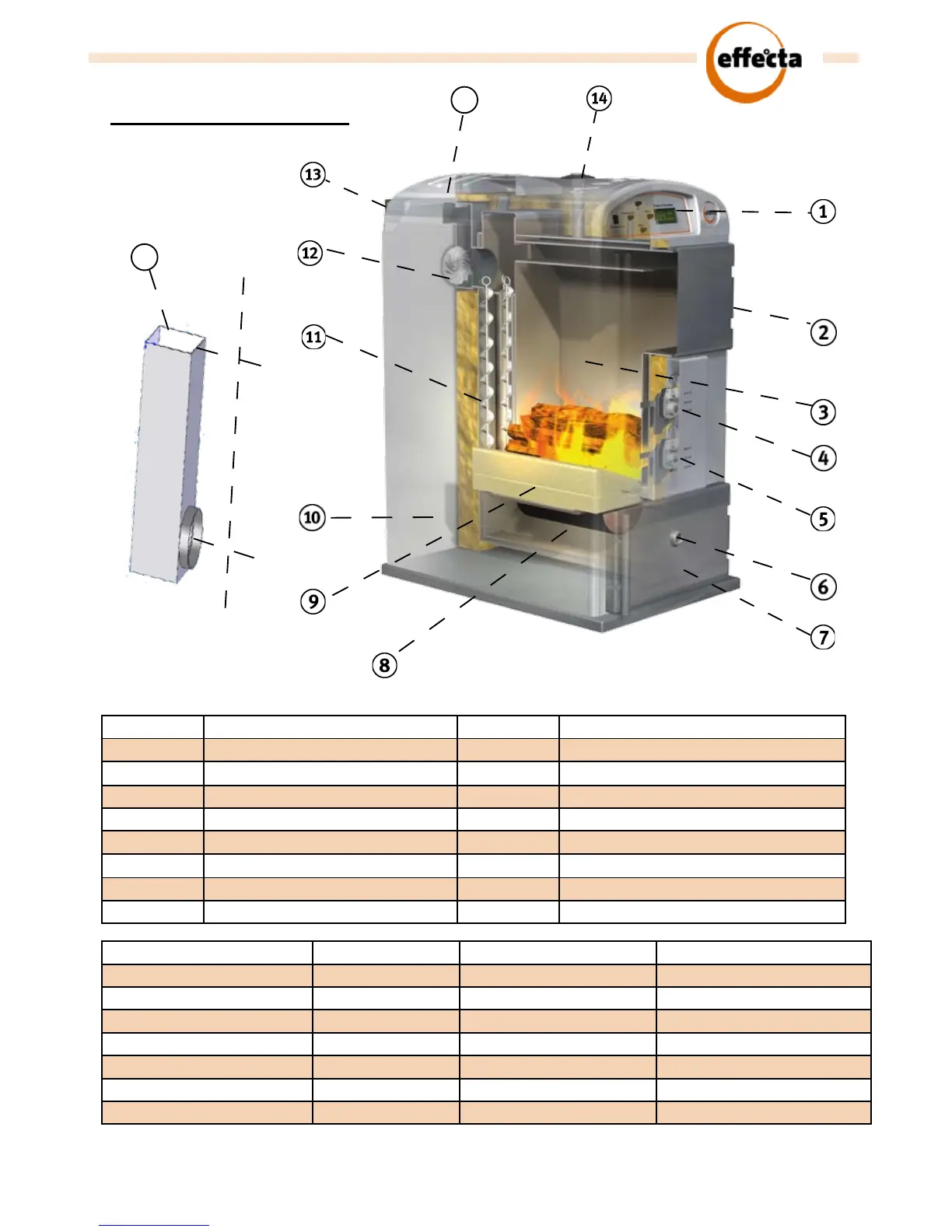

Effecta Lambda - Placement of components

11
Effecta AB - Västra Rågdalsvägen 21 - 434 96 Kungsbacka - 0300 - 22320 - info@effecta.se
Component Component
1 Control panel 9 Ceramics
2 Grate hatch 10
Return from tank,
drain cock
3 Grate 11 Convection area
4 Primary air inlet 12 Flue gas fan
5 Secondary air inlet 13 Smoke pipe 150 mm
6 Inspection panel 14
Hot water outlet 1
1
/
4”
7 Ash hatch 15 Soot hatch
8 Afterburner 16 Smoke pipe elbow (500x150x150)
Installation data Technical data
Height 1130 mm Output 35 kw
Width 650 mm Grate depth 540 mm
Depth 920 mm Grate volume 135 liters
Depth incl. smoke pipe 1150 mm Max. working pressure 1,5 bar
Weigth 420 kg Max. working temperature 100°
Electricity supply 230 volt Water volume 80 liter
Floor to centre smoke pipe 1340 mm Min. diameter chimney 150 mm
Placement of components
15
500 mm
16
