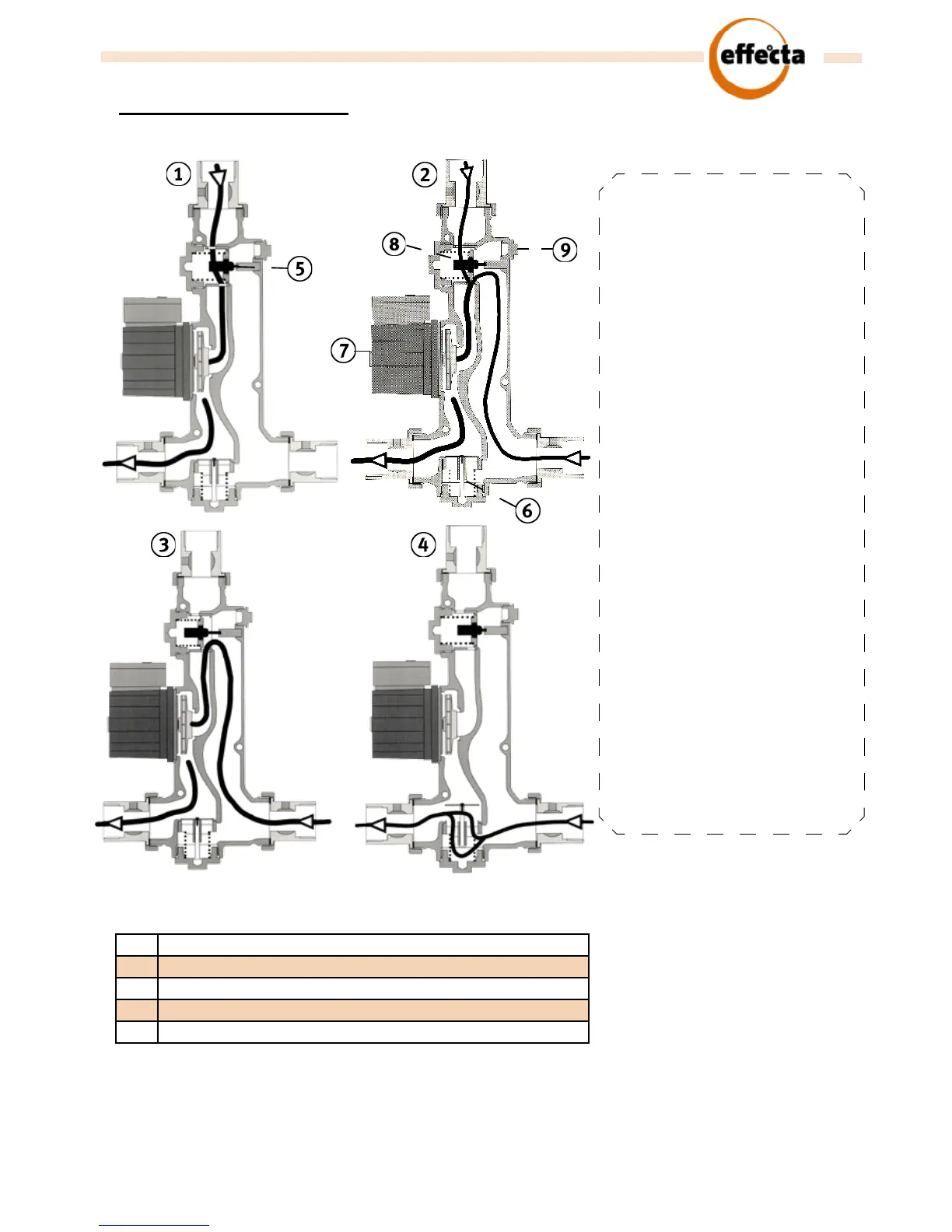

Function Laddomat 21

1. Start; Before the boiler tem-

perature has reached 78degrees,

the thermovalve is closed, and the

valve for self cirkulation is closed

from the pump pressure.

Heating phase; When the boi-

ler temperature exceeds 78degrees

the thermovalve begins to open and

mixes cold water from the tank.

Normally the temperature of the

return water to the boiler is about

70degrees and the hot water from

the boiler about 80-85degrees.

3. Final part; When the accumula-

tor is getting almost fully charged

the Laddomat, thanks to the unique

thermal valve, charges the accu-

mulator completely by closing the

bypass opening.

4. Self circulation In the event of

a power failure the Laddomat im-

mediatly starts charging the accu-

mulator by self circulation. The

same happens if the pump breaks

down.

5 Thermal valve

6 Reverse circulation valve

7 Pump

8 Spring

9 Filling valve
