Electronic device DMU2000 - DMU3000 - DMU3000 PLUS
THE POWER OF PERFORMANCE
56
Electronic device DMU2000 - DMU3000 - DMU3000 PLUS
4
7
1
3
2

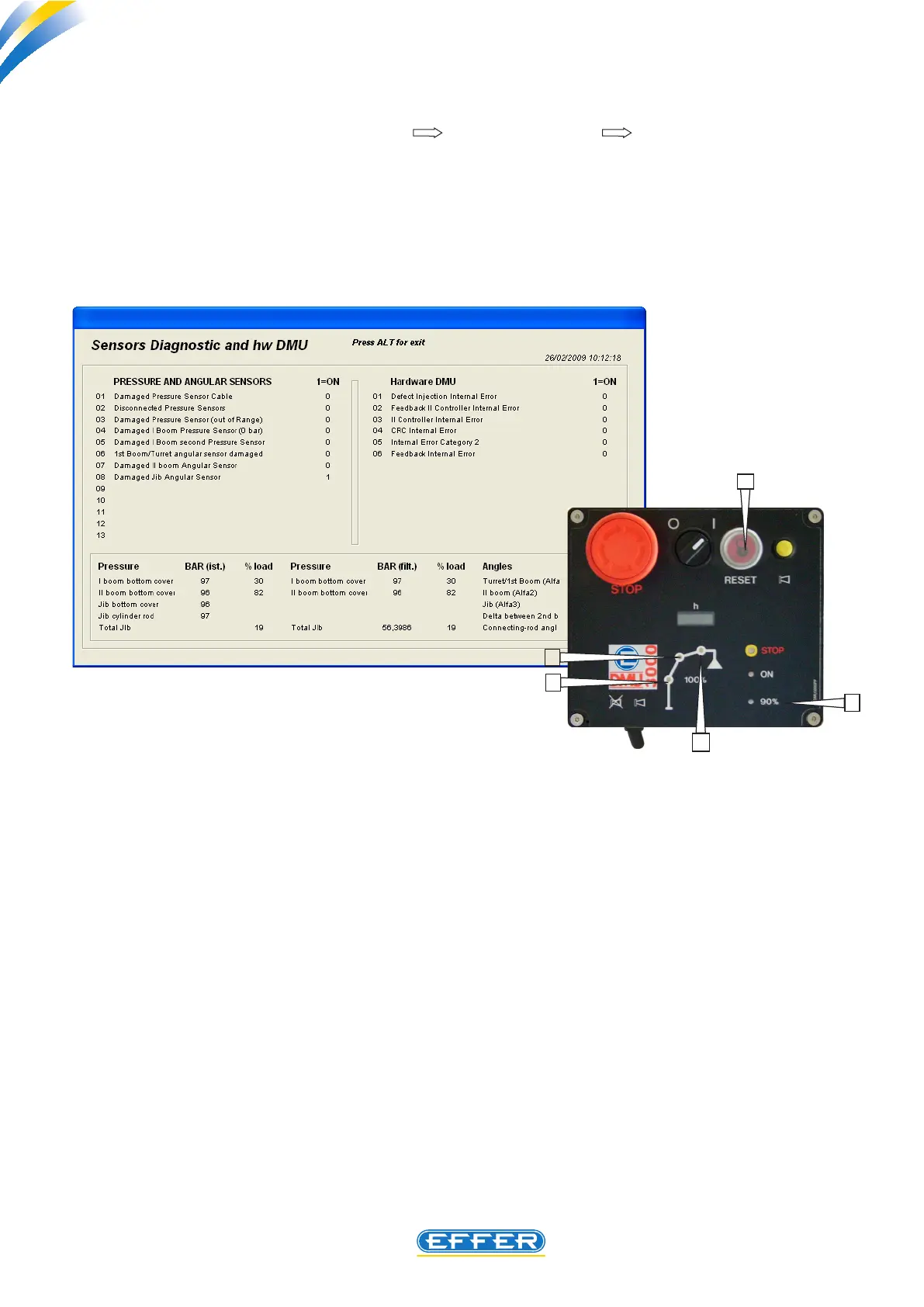

! FAILURE ANALYSIS
If the computer is connected to crane (tools sensor diagnostics DMU hardware) the error
state is displayed:
- “1” appears next to: “jib angular sensor damaged”
the electric cable connecting the jib angular sensor to DMU is short circuited:
SOLUTION
Restore electric connection.
