Efficient Networks SpeedStream 5200 Series Quick Start Guide

SpeedStream 5200 Series Bridge
Product Specifications and Support 11
1111
11
Port Specifications
Port SpecificationsPort Specifications
Port Specifications
Table 3: Port descriptions
Pin DSL Port Ethernet Port Console Port
1 Not connected Twisted pair receive + Receive data
2 Not connected Twisted pair receive- Request to send
3 Not connected Twisted pair transmit + Not connected
4 Tip or Line A Not connected Transmit data
5 Ring or Line B Not connected Ground
6 Not connected Twisted pair transmit - Clear to send
7 Not connected Not connected Not connected
8 Not connected Not connected Not connected

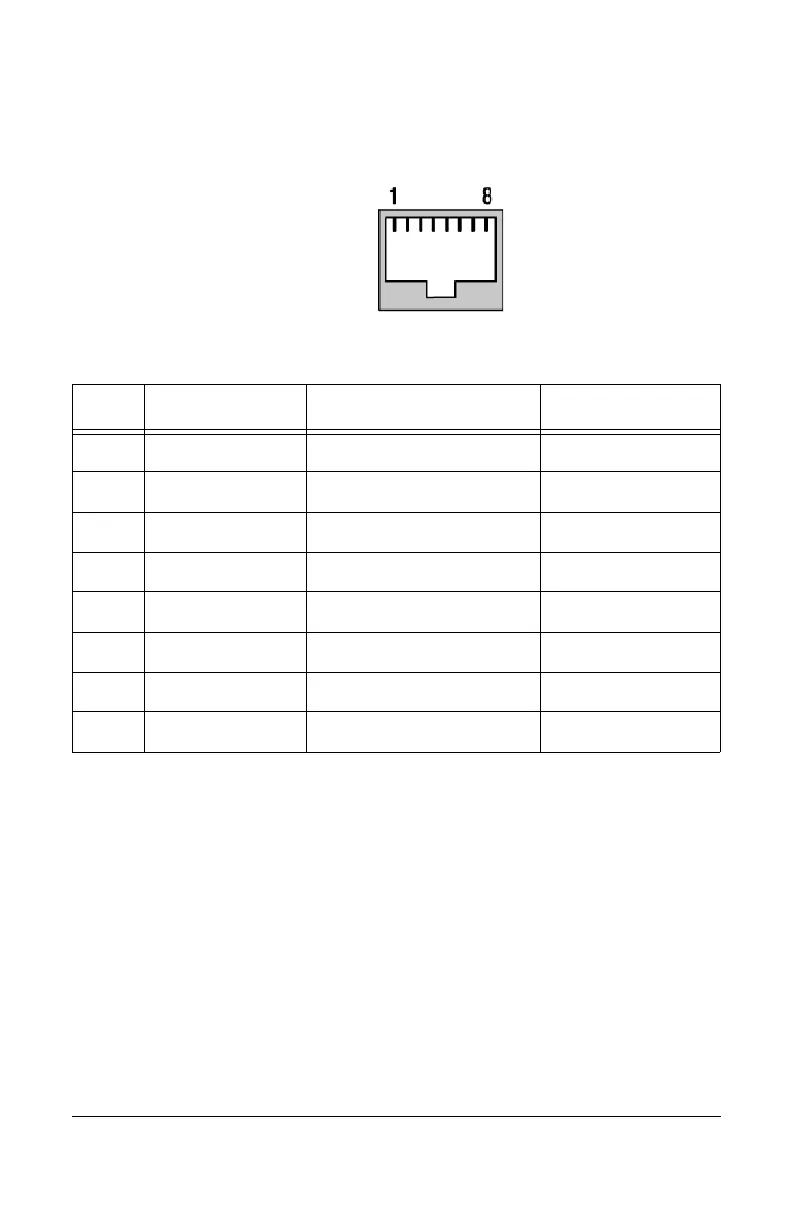

RJ-45 Port Pin Orientation
