NOTE: Letters in (parentheses) refer to the PARTS IDENTIFIER on page 3 and/or the PARTS ASSEMBLY on page 4. Use as needed for clarification.

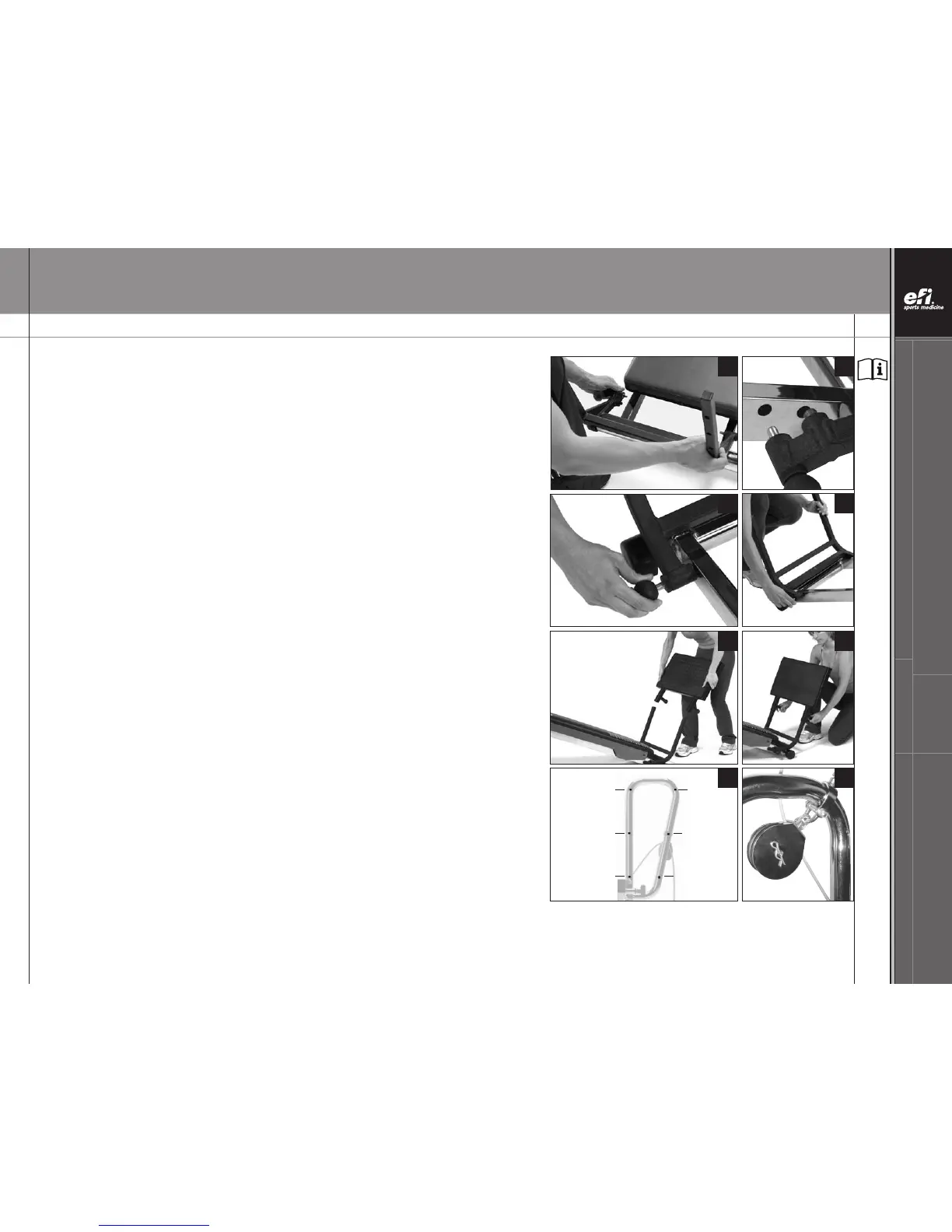

INSTALL THE FOLDING PLATFORM (I)
51. Align the bottom of the Folding Platform (I) with the Lower Rails (K) just above
the Lower Rail Base (J).
52. Using the two holes just above the bottom of the Lower Rails (K), slide the
fixed pin into the large hole in the outside left Lower Rail (K).
53-54. While keeping the Folding Platform (I) rotated toward the Tower (A), pull the
retractable pin on the right side and move the pin over the hole. Release the pin.
Rotate the Folding Platform (I) back until the pin on the left rail engages
completely.
INSTALL THE TELESCOPING SQUAT STAND (H)
55. Align the Telescoping Squat Stand (H) over the Folding Platform (I) struts until
the Telescoping Squat Stand (H) pins contact the top of the Folding Platform (I)
struts.
56. To adjust the height of the Telescoping Squat Stand (H), pull both retractable
pins and raise or lower the Telescoping Squat Stand (H) until both pins engage
in one of the three adjustment holes in the Folding Platform (I) struts.
PULLEY LOCATOR BRACKETS (X)
57-58. The Pulley Locator Brackets (X) are designed to adjust easily. Standing behind
the Tower (A), pull back on the Pulley Locator Bracket (X) pin. Then, move the
Pulley Locator Bracket (X) to the desired position on the LAT Bars (Y), and allow
the pin to engage in the desired hole. You should rotate the Pulley toward the
center of the LAT Bar (Y) when moving the Pulley Locator Brackets (X) around
the LAT Bar bends.
LAT Bar Positions
1
2
3
4
5
6
51
53
55
57
52
54
56
58
