NOTE: Letters in (parentheses) refer to the PARTS IDENTIFIER on page 3 and/or the PARTS ASSEMBLY on page 4. Use as needed for clarification.
FOLDING AND STORAGE
The GTS is easily folded for storage. Whenever you move or store the
GTS, fold the Telescoping Squat Stand (H) and Folding Platform (I)
toward the Glideboard (G).
59-60. Pull the Folding Platform (I) left side retractable pin (as you
face the Tower (A) while pushing the Telescoping Squat Stand
(H) forward until the retractable pin locks in place in the
folded position against the Glideboard (G).
61. Lower the Folding Foot Holder (E). Pull the Folding Foot Holder
(E) knob on the inside of the right rail to rotate the Folding Foot
Holder (E) to the down position.
62. Attach the center pulley snap hook (located on the Dynamic
Arm Pulley System (W)) to the lock pin bracket located on the
Support Strut (O). The pulley and cable will be underneath
the padded Center Rail Crossbar (U).
63. Lower the LAT Bars (Y) to the folding position (parallel to the
rails). Next, adjust the Pulley Locater Brackets (X) to the
fourth position on the LAT Bars (Y).
64. Hold the Tower (A). Lower the Rails (K, N) to the lowest level.
With one hand on the Tower (A) and one hand on the Upper
Rail (N), disengage the Rails (K, N) from the Tower Hooks (R)
and lower the Rails (K, N) slowly towards the Tower Base (Q).
65. While holding the Tower (A), unscrew and disengage the
Support Strut Knob (M) by pulling it out.
66. HINT: Rock the Tower (A) backward to help release tension on
the Support Strut Knob (M). Once the Support Strut Knob (M)
has disengaged, pull the Tower (A) forward to its full, upright
position.
IMPORTANT: Disengage the Support Strut Knob (M)
during folding to avoid damage to your GTS.

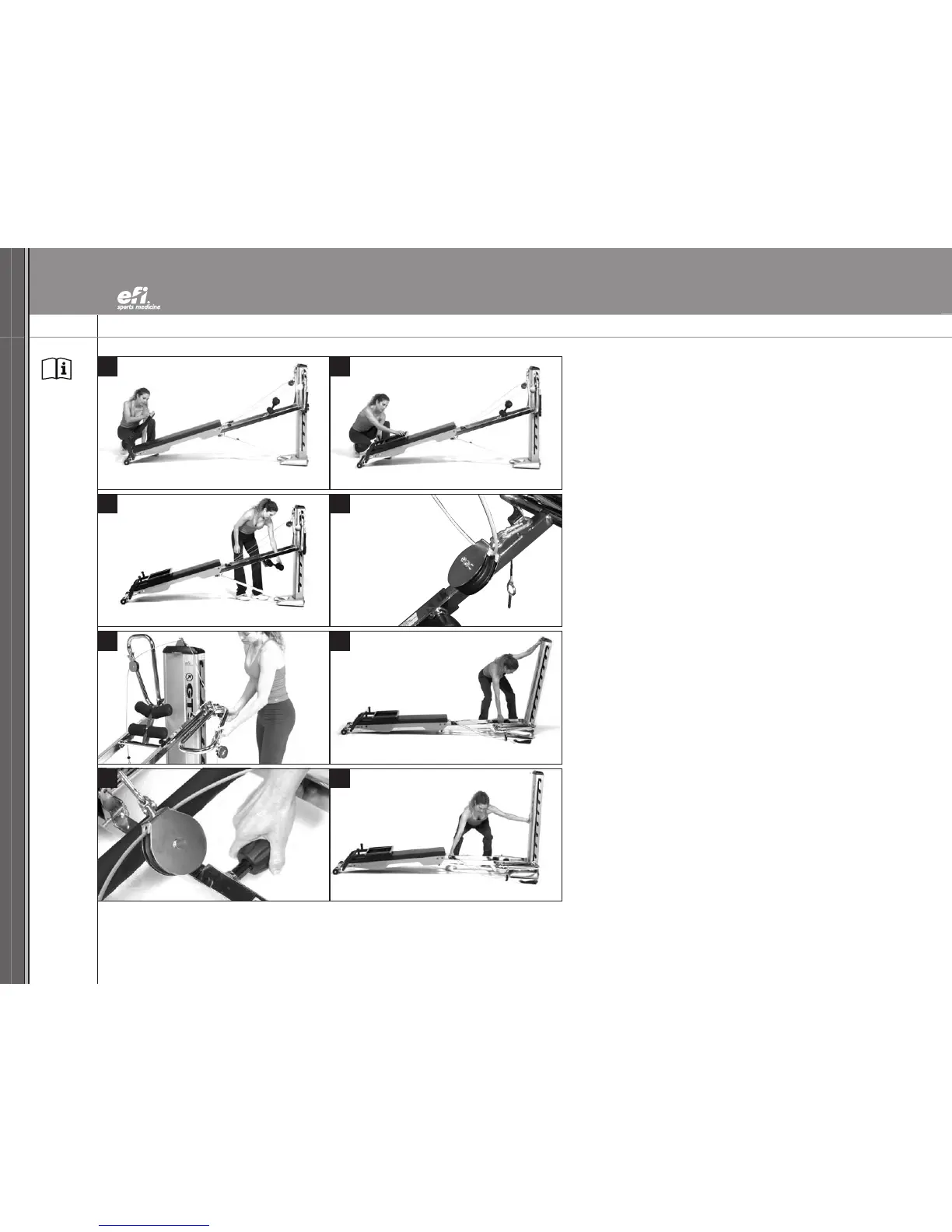

59
