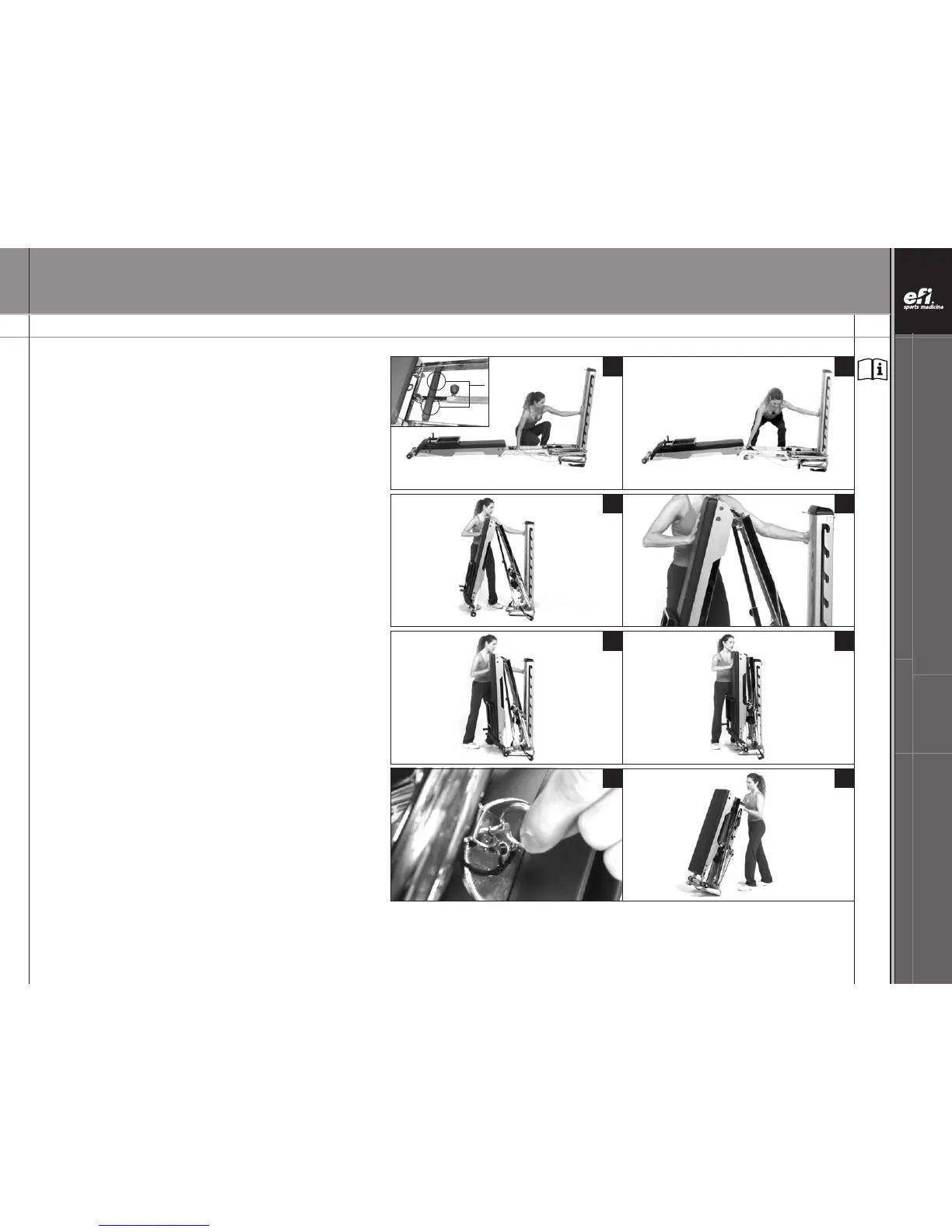

FOLDING AND STORAGE (CONTINUED)
67.
While continuing to hold the Tower (A), grasp
either side of the padded Center Rail Crossbar (U).
68. While continuing to hold both the Tower (A) and
either side of the padded Center Rail Crossbar (U),
move into position to pull the Rails (K, N) up and
towards the Tower (A).
69. Pull the Rails (K, N) up and toward the Tower (A)
until the rails form an A-frame.
70-72. Continue pulling the Rails (K, N) toward the
Tower (A) until the Lower Rail Base (J) rests on the
Tower Base (Q) and the GTS stands upright.
73. Insert the Tower Lock Pin (D) to secure the GTS in
the upright position. Check to make sure the
Support Strut Knob (M) has re-engaged and screw
in the Support Strut Knob (M).
Hang the Handles (T) out of the way and make
sure the Dynamic Arm Pulley System (W) remains
free from contact with the center hinge, floor or
Transport Wheels.
To unfold the GTS and return it to use, follow the
unfolding directions at the beginning of this
guide.
TO MOVE THE THE GTS
74. Stand behind the Tower (A), grasp the Tower Top
Handle (B) and lean the Tower (A) back toward
you. You can now wheel the GTS, similiar to how
you would move a hand cart.
hold
67
69
71
73
68
70
72
74
NOTE: Letters in (parentheses) refer to the PARTS IDENTIFIER on page 3 and/or the PARTS ASSEMBLY on page 4. Use as needed for clarification.
