- AB600A /AB611A /AB620A
12 | P a g e

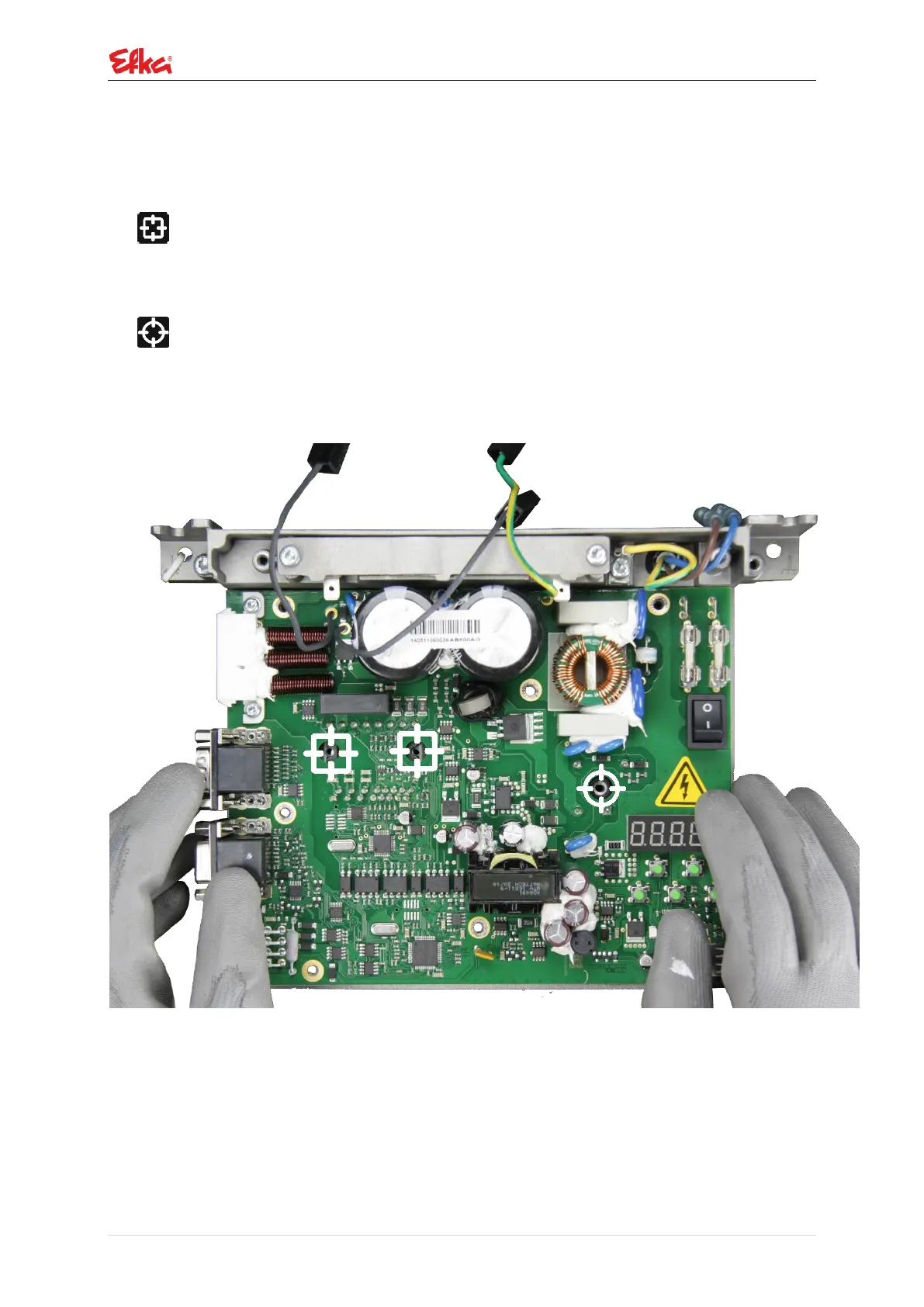

Carefully insert the board.
Insert the marked screws and tighten them with specified torque.
Note: make sure that the drillings are concentric over each other!
2x M3x16 (Torx T10) Torque: 0,8 +/-0,2 Nm
IMPORTANT! Fix the screws reciprocally! Fix the screws again after 10 minutes with 0,8 +/-0,2 Nm
torque!
1x M4x16 (Torx T20) Torque: 2 +/-0,2 Nm
IMPORTANT! Fix the screws again after 10 minutes with 2 +/-0,2 Nm torque!
