Efka DC 1550 - Page 67

EFKA AB320A5200
69
Supplier Level
Code no. 311 with control operation
Code no. 3112 with control panel operation
Parameter Designation Unit max min Preset Ind.

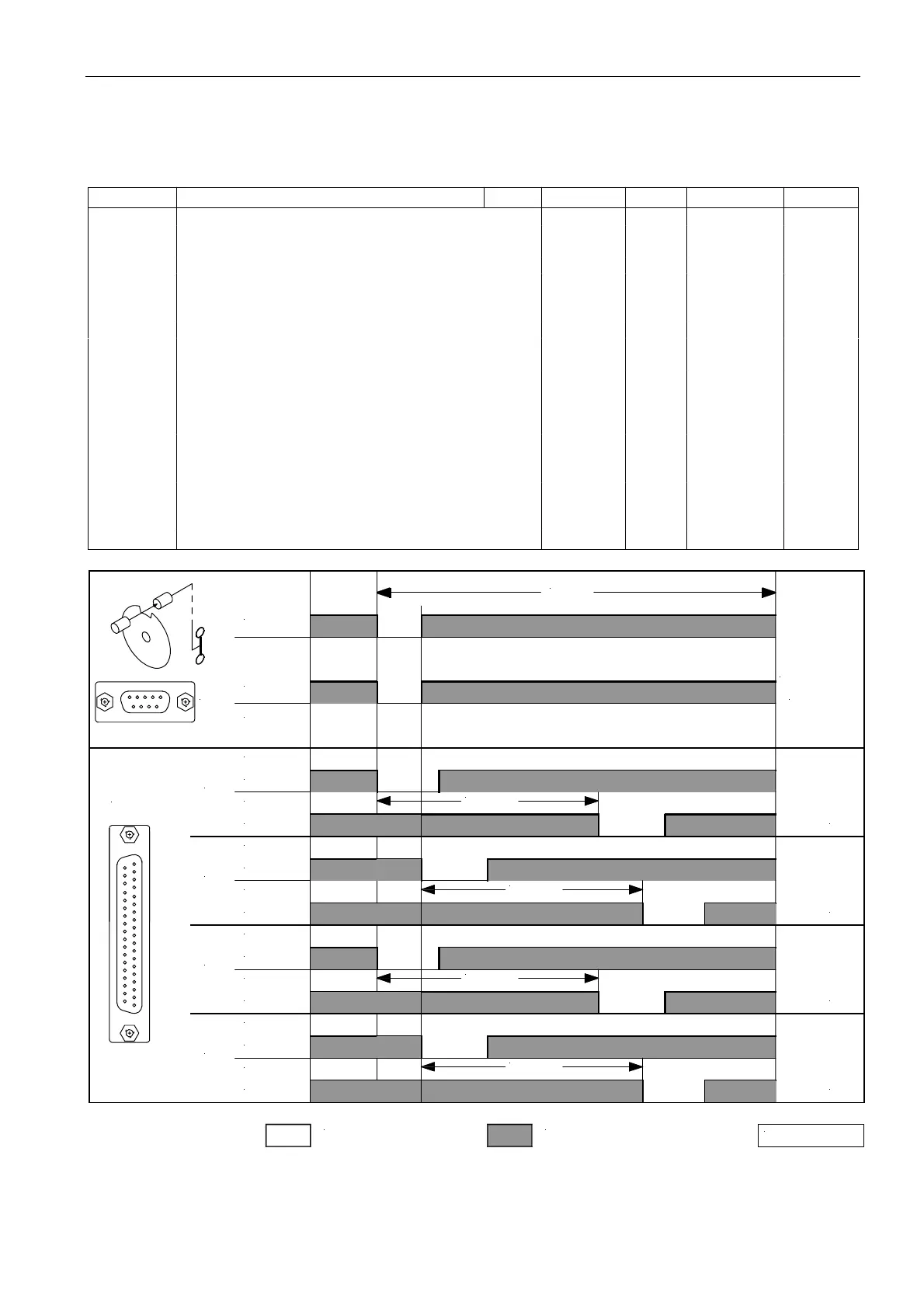

270 PGm Connection of a sensor e. g. light barrier sensor to 5 0 0 *) A
light barrier socket B18/7. Selection of the desired
function!
0 = The positions are generated by means of the
transmitter incorporated in the motor and can be set
by means of parameter 171.
1 = Setting the sensor to position 2.
Set position 1 using parameter 271, starting from
leading edge position 2.
2 = Setting the sensor to position 2.
Set position 1 using parameter 271, starting from
trailing edge position 2.
3 = Setting the sensor to position 1.
Set position 2 using parameter 271, starting from
leading edge position 1.
4 = Setting the sensor to position 1.
Set position 2 using parameter 271, starting from
trailing edge position 1.
5 = No position sensor available. The drive stops
unpositioned. The thread trimmer function is
suppressed with this setting.
*) Depending on the selected mode. See table at the beginning of the List of Parameters!
= 0V
OUT
OUT
OUT
OUT
ST2
IN
POS1
ST2/20
POS2
ST2/20
POS1
ST2/21
POS2
ST2/21
POS1
ST2/21
ST2/20
POS2
ST2/20
POS1
POS2
ST2/21
POS
B18/7
SEN
= high
0256/SEN- 1
Pa 271
Pa 271
Pa 271
Pa 271
360°
270 = 1270 = 3270 = 4 270 = 2
+5V
0V
