EFKA AB320A5200
13

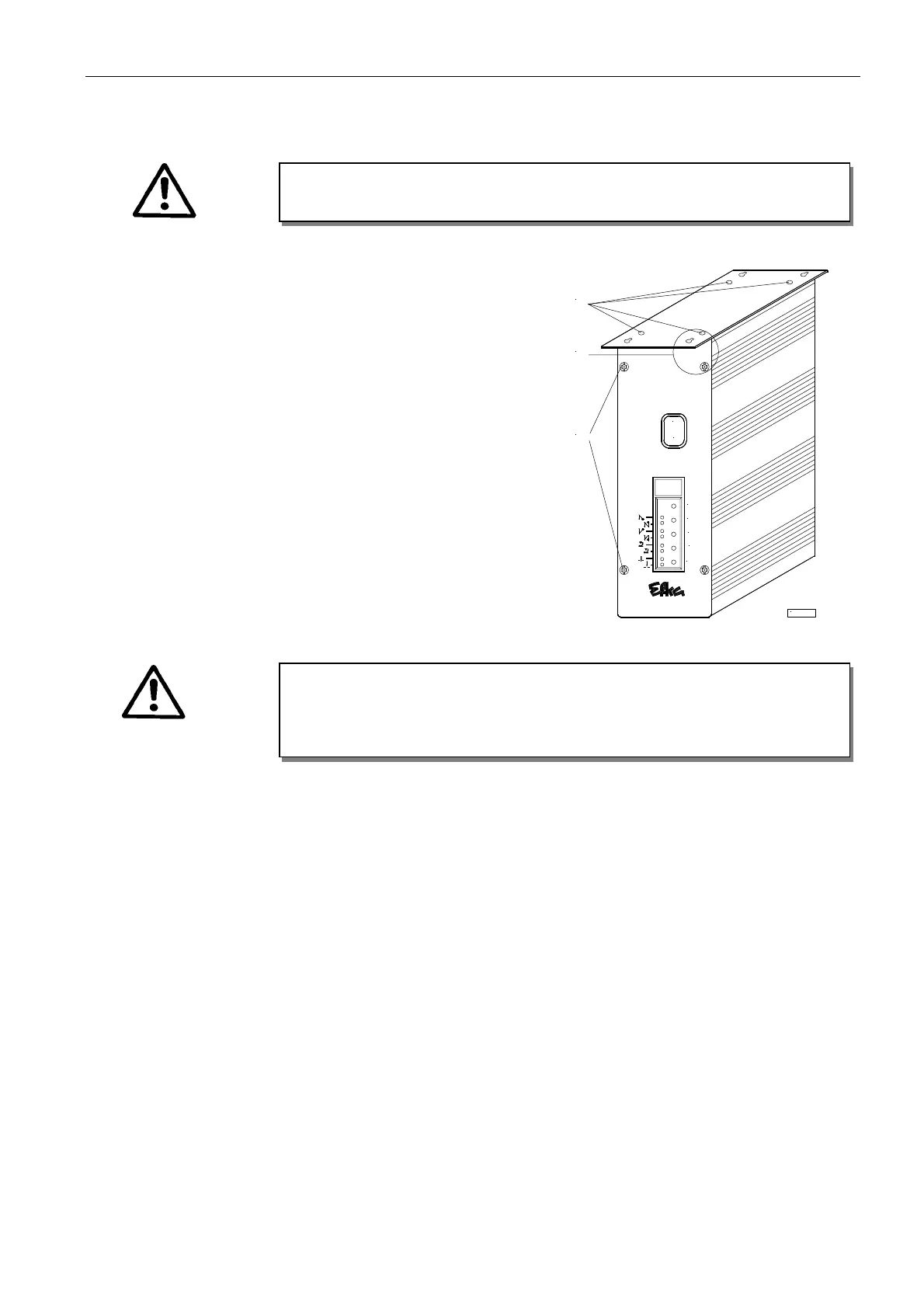

4.4 Connection of a Sewing Light with Transformer
" Switch off the control and remove mains plug from outlet
"
Unscrew the control unit from the machine table
" Loosen 4 screws (A)
"
Remove the mounting plate
" Loosen 2 screws (B) each at the front and at the rear
" Open the left part of the housing
" Pull the sewing light cable through the cable bushing
"
Area (C): Connect strands with clamp on the printed circuit board
" Insert earth lead into plug-in device on the housing part
"
Close and screw-connect the housing
" Mount the control unit on the machine table
CAUTION!
When the sewing light is connected, it is always current-carrying (230V), even if
the control unit is switched off! Only one sewing light with transformer can be
connected to the control unit!
A
B
C
-
>>
+
P
E
KL2399
0
I
ATTENTION!
B
efore opening the cover, turn power off!
