EFKA AB320A5200
12

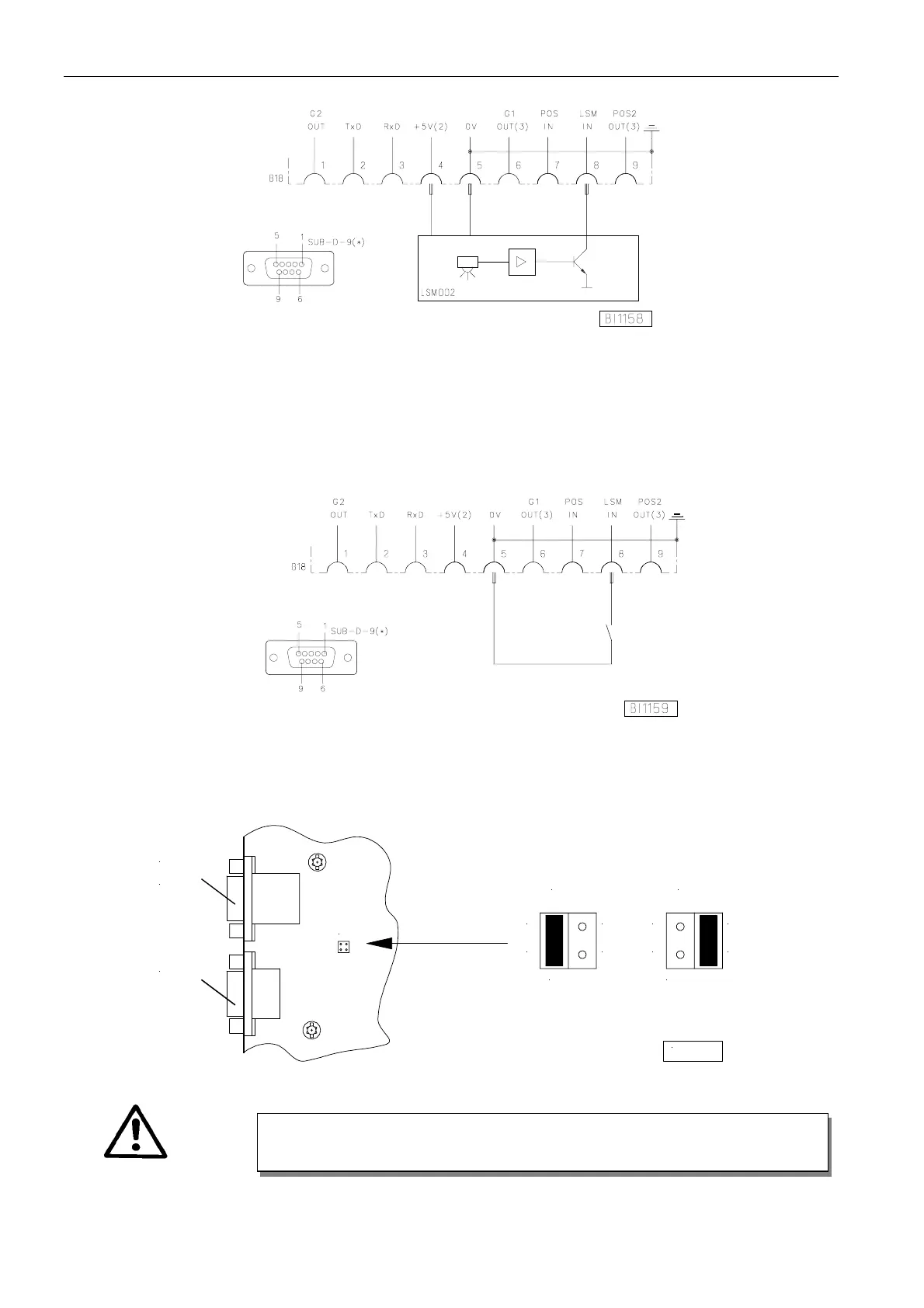

POS2 OUT - Output for position 2
POS IN - Input for positions
G1/G2 OUT - Output of generator impulses
TXD/RXD - Serial transmission lines
LSM IN - Possibility of connecting a light barrier module to socket B18/8
(If parameter 239 = 0, the light barrier function is selected.
Identification of the signal when switched to 0V.)
LSM002 - Reflection light barrier module
If parameter 239 is set to 1...43, a key can be operated on the input of socket B18/8.
+5V = Connect lefthand pins 1 and 2 with jumper (factory setting)
+15V = Connect righthand pins 3 and 4 with jumper
1) Nominal voltage +15V, 100mA (repluggable to +5V, 100mA)
2) Transistor output with open collector max. 40V, 10mA
*) Front view of the socket (component side) and/or rear view of the plug (soldering side)
B80
B2
B18
J4
1 3
2 4
+5V
J4
31
42
KL2351
+15V
J4
ATTENTION!
B
efore opening the cover, turn power off!
