EFKA AB320A5200
11

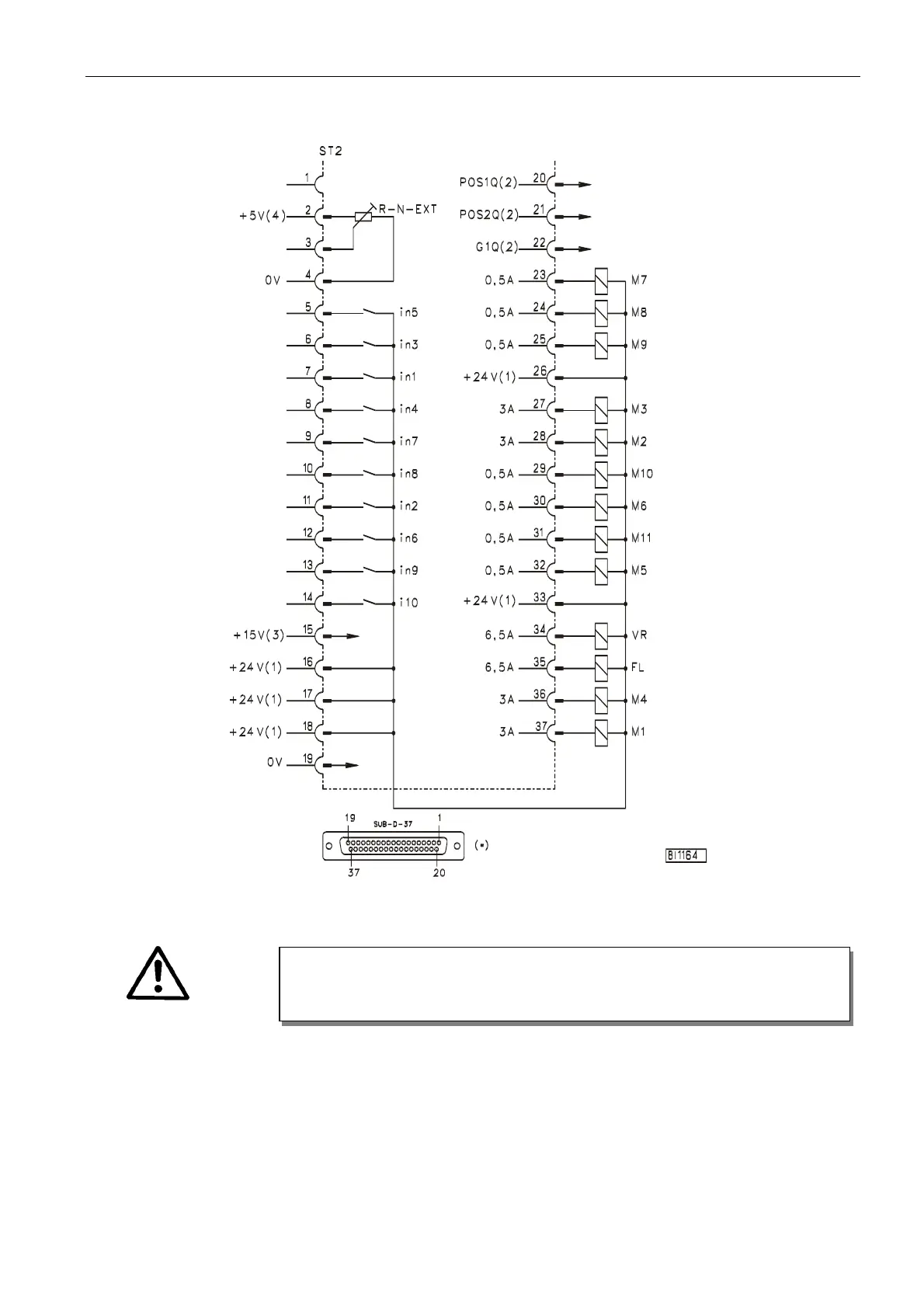

Inputs switched to +24V
1)
Nominal voltage 24V, no-load voltage max. 30V momentarily after power on
2)
Transistor output with open collector max. 40V, 10mA
3) Nominal voltage 15V, I
max
= 30mA
4)
Nominal voltage 5V, I
max
= 20mA
*) Front view of the socket (component side) and/or rear view of the plug (soldering side)
ATTENTION!
When connecting the outputs, ensure that a total power of 96VA constant load will not
be exceeded!
