Using the EF-Series Unit
2-32 Rev 2/01
2.8.2.3 Jumper Reset
The Main Electronics Board has a jumper located at P1 in the upper right-hand corner that can be used
to perform a special type of cold start. Refer to Figure 2-11. This jumper permits a power-up reset to
re-establish a known operating point. The includes reinitializing the Tasks, Database, Communication
Ports, Sensor, and I/O and restoring the factory default configuration. This cold start does not include
any of the clearing options available in a Cold Start performed by using ROCLINK (see Section
2.8.2.2).
CAUTION
This type of reset restores the factory configuration defaults. Some user-entered
configuration parameters may be lost; therefore, try to back up any needed data
before performing this reset.
NORM
RST
P1
DOC0277U

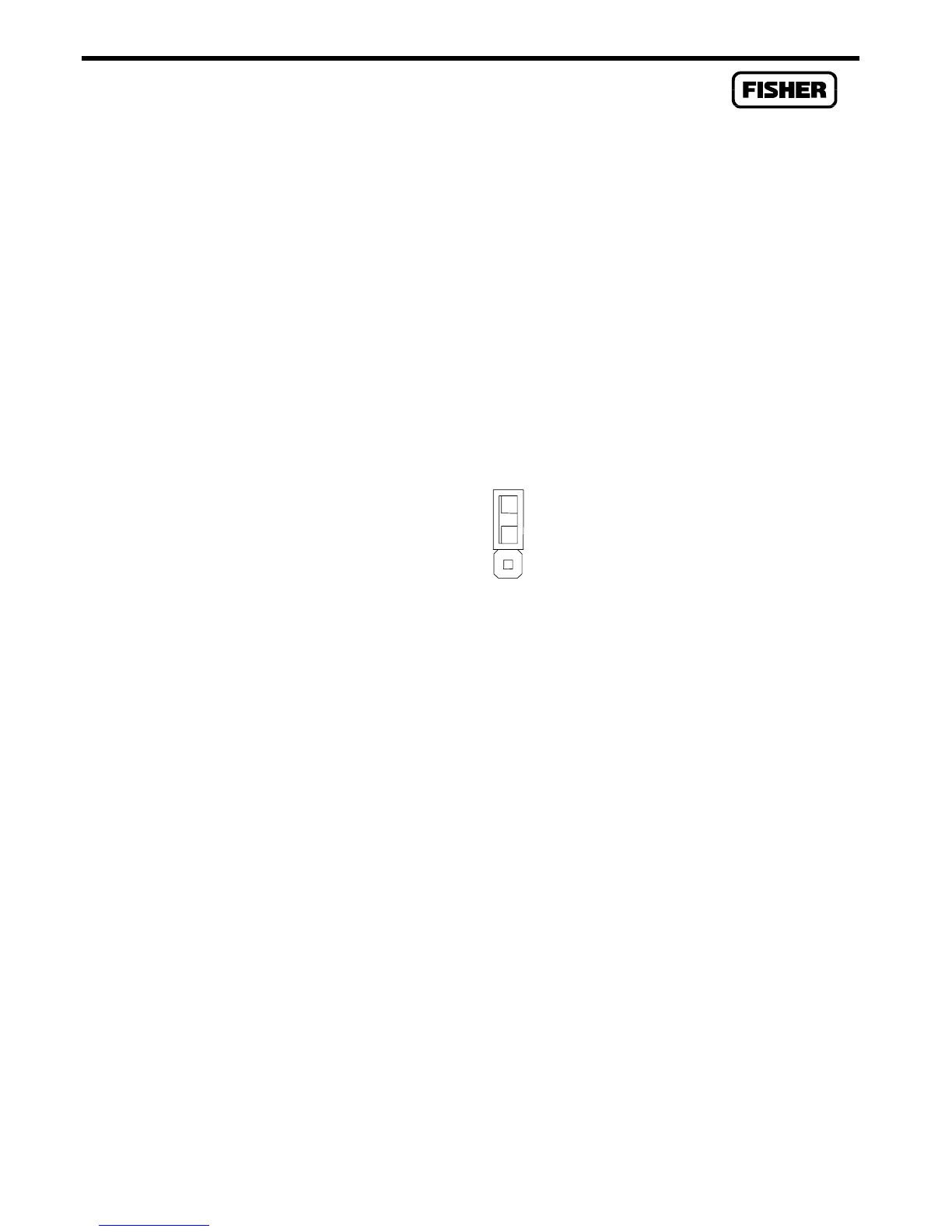

Figure 2-11. Reset Jumper Shown in Normal Position
1.
Refer to Section 2.8.1 and perform the Backup Procedure.
2.
Disconnect the Power terminal block to remove power.
3.
Install the P1 jumper in the reset (RST) position.
4.
Apply power by plugging in the Power terminal block at P8.
5.
Remove the P1 jumper and install it in the normal (NORM) position.
6.
Refer to Section 2.8.3 and perform the After Installing Components procedure.
This reset action loads the factory default values into all configurable parameters.
